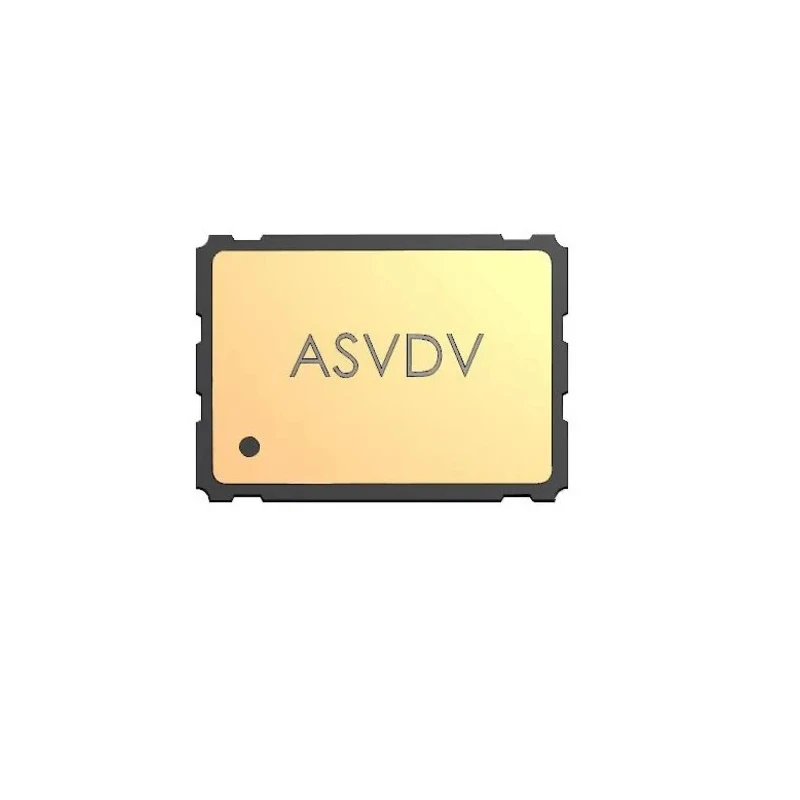

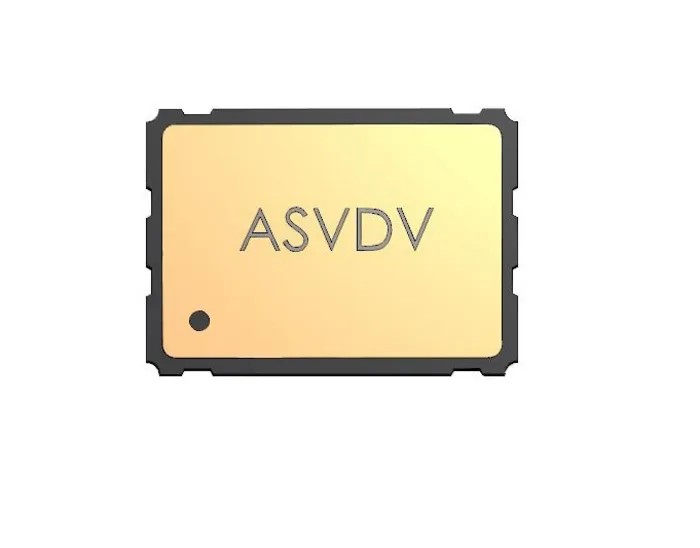

Abracon 24MHz Crystal Oscillator Crystal Oscillator ±50 ppm CMOS, HCMOS, LVCMOS 4-Pin Surface Mount ASVDV-24.000MHz-LC-T

The Abracon ASVDV-24.000MHz-LC-T is a high-stability 24MHz crystal oscillator designed for applications requiring precise frequency control. It features ±50 ppm frequency stability ensuring minimal drift across temperature and voltage variations.

This oscillator supports CMOS, HCMOS, and LVCMOS output levels, making it compatible with a wide range of electronic devices and systems. It operates on a low supply voltage from 1.6V up to 3.63V, optimizing power consumption for portable and battery-powered equipment.

The device is housed in a hermetically sealed ceramic surface mount package that protects against environmental contaminants and mechanical stress, enhancing reliability. Its 4-pin surface mount layout supports easy and secure PCB integration, with compact dimensions of 7mm by 5mm and a height of 1.4mm.

Operating temperature range from -40°C to 85°C allows it to function stably in harsh industrial and consumer environments. The oscillator's load capacitance is precisely 15pF, tuned for optimal oscillation and signal integrity.

Standards compliance includes ISO9001-2015, and RoHS/RoHS II, guaranteeing quality manufacturing and environmental safety. This product is well suited for use in portable & wearable electronics, consumer devices, industrial control systems, and communication equipment requiring accurate clock generation.

This crystal oscillator operates at a supply voltage range from 1.6V to 3.63V. It features a load capacitance of 15pF optimized for reliable frequency generation. The oscillator is hermetically seam-sealed in a ceramic surface mount package for durability.

Designed for operation between -40°C and 85°C for broad environmental tolerance. The device offers a stable output waveform compatible with CMOS, HCMOS, and LVCMOS logic families. Ideally suited for portable, wearable, consumer, industrial control, and communication electronics applications.

Compact dimensions of 7mm length, 5mm width, and 1.4mm height enable PCB space savings. ISO9001-2015 certified and RoHS/RoHS II compliant for quality and environmental standards. Four-pin mounting eases integration into surface mount technology (SMT) assemblies.
