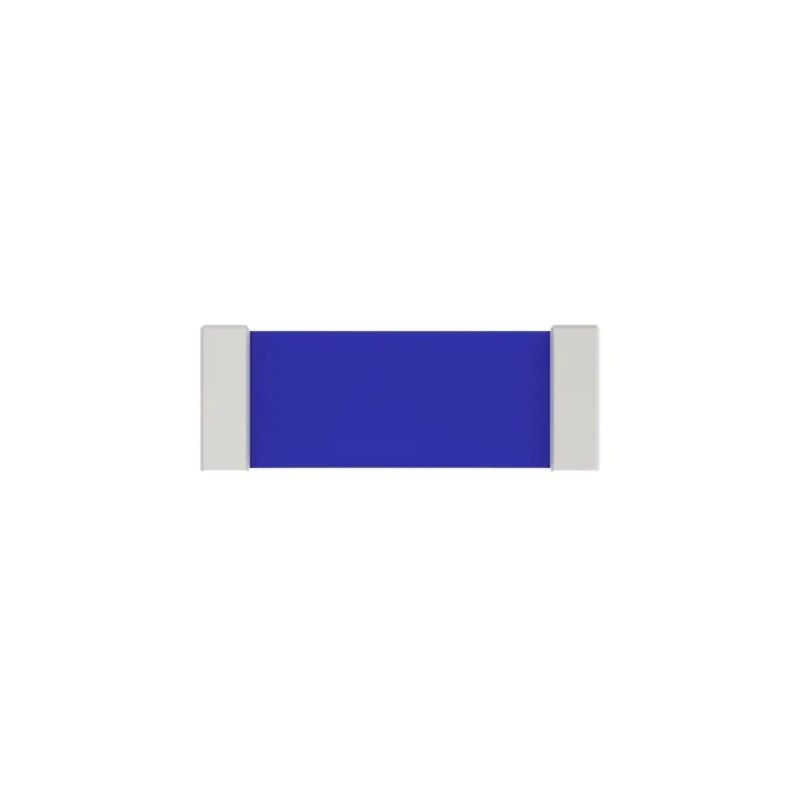

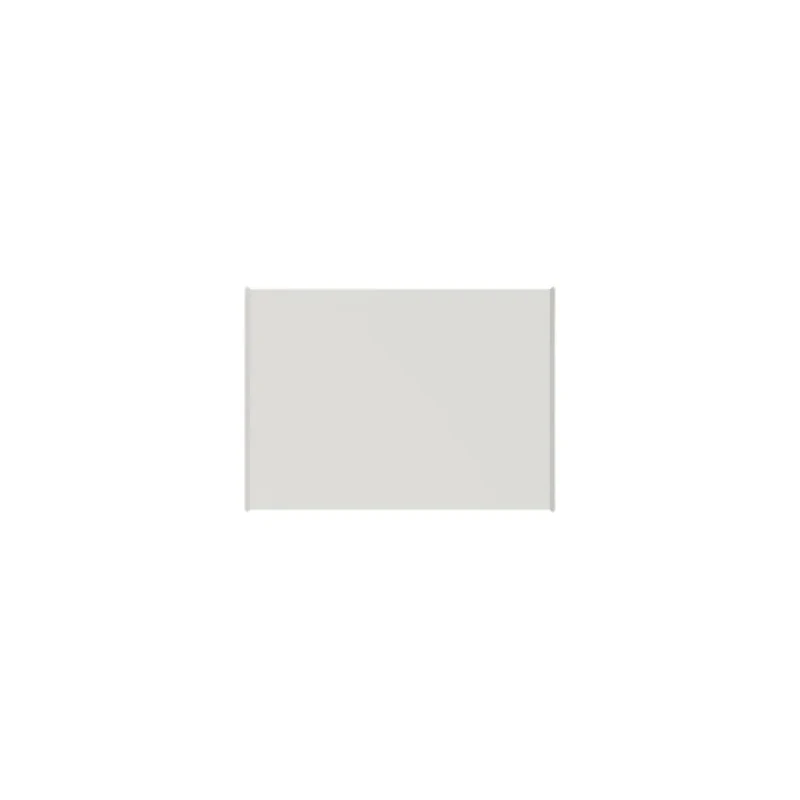

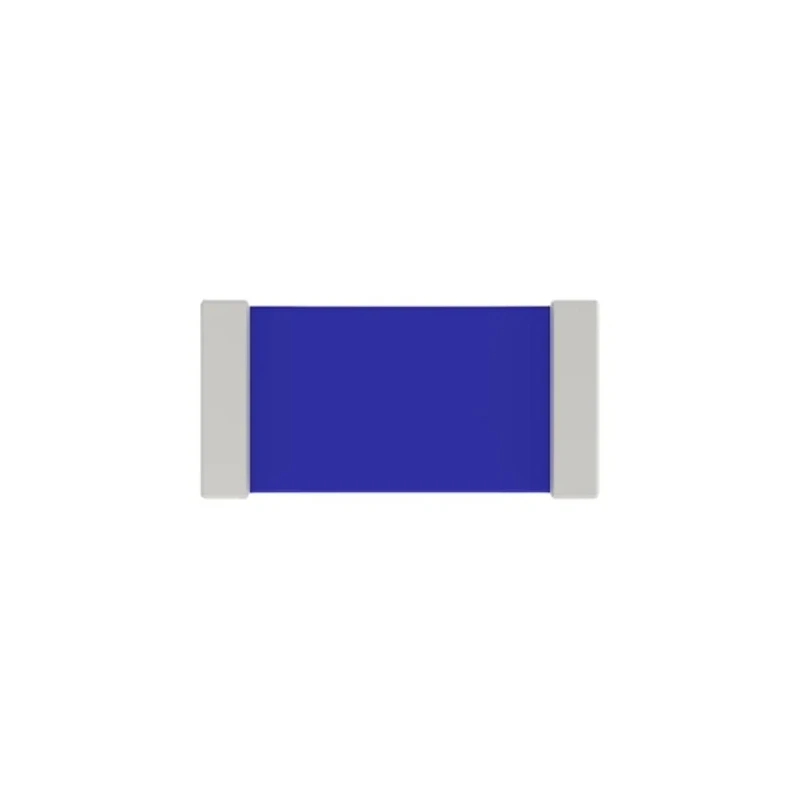

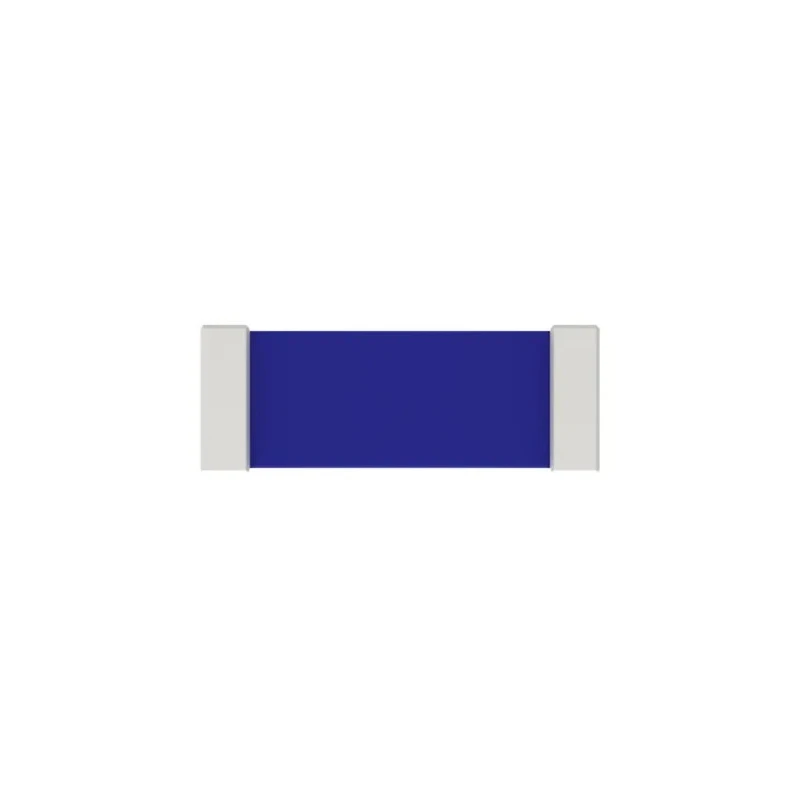

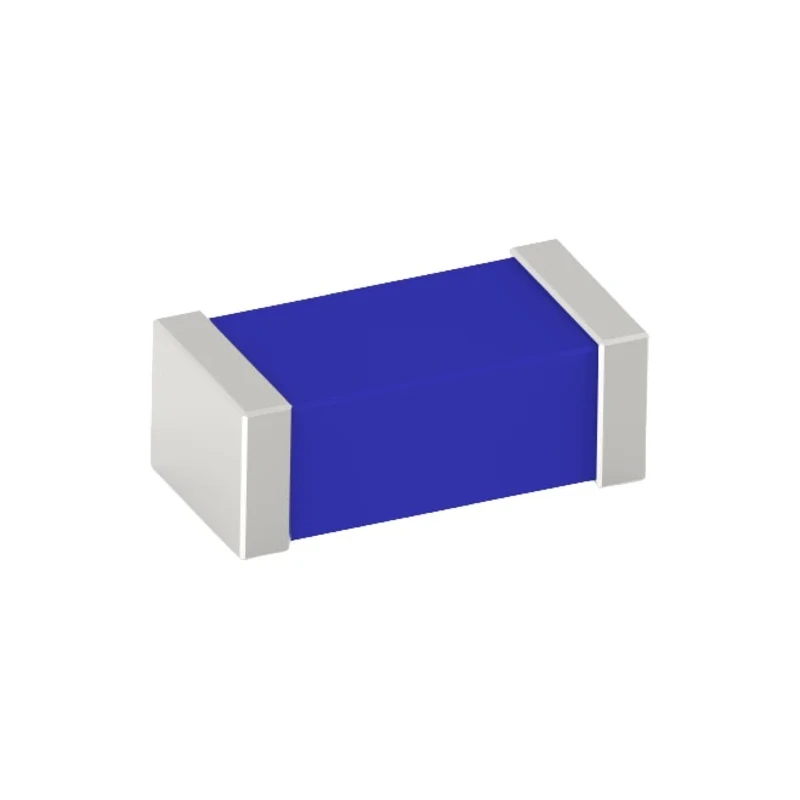

TE Connectivity Square Internal Ceramic Chip WiFi Antenna 2.4 GHz 2.4 dBi Gain 2108838-1
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | TE Connectivity |
| Bandwidth | 10MHz |
| Series | GNSS |
| Gain | 2.4dBi |
| Maximum Frequency | 2.4GHz |
| Minimum Frequency | 2.4GHz |
| Internal/External | Internal |
| Antenna Physical Form | Square |
| Antenna Mount Type | Surface |
| Directivity | Omni-Directional |
| Antenna Internal Construction | Ceramic Chip |
| VSWR (Max) 2.0 | 1 |
Key Features
- This antenna features a square physical form factor suitable for surface mount on PCBs.
- It operates at a minimum and maximum frequency of 2.4 GHz with a bandwidth of 10 MHz.
- The antenna provides a gain of 2.4 dBi with omni-directional directivity.
- Designed for ISM, ZigBee, Bluetooth, and Wi-Fi protocols using linear polarization.
- Compact dimensions of 3.2 mm x 1.6 mm x 1.2 mm allow easy integration into embedded applications.
- Supports Bluetooth, Wi-Fi, and ZigBee applications globally in the 2400 - 2500 MHz range.
- Lightweight design weighing approximately 0.02 g enables minimal impact on device weight.
- Its embedded style and SMT mount type facilitate easy placement on printed circuit boards.
Product Description
TE Connectivity 2108838-1 is a high-performance square-shaped internal ceramic chip WiFi antenna operating at 2.4 GHz. This antenna is specifically designed for embedded wireless communication devices supporting Wi-Fi, Bluetooth, and ZigBee protocols within the ISM band.
With dimensions of 3.2 mm x 1.6 mm x 1.2 mm, it is a compact solution ideal for surface mounting (SMT) on printed circuit boards. The antenna's ceramic chip construction provides stable linear polarization, contributing to reliable wireless signal transmission and reception.
The antenna offers a gain of 2.4 dBi and omni-directional directivity, making it suitable for consistent performance regardless of orientation. Its impedance is matched to 50 Ω and it has a maximum VSWR below 2.0:1, ensuring efficient power transfer and minimal signal reflection.
This antenna operates in the 2.4 GHz frequency band, covering Bluetooth global band (2400 - 2500 MHz), Wi-Fi (2400 - 2483.5 MHz), and ZigBee (2400 - 2483.5 MHz), making it versatile for various industrial, commercial, and consumer wireless devices.
Applications for this antenna include wireless networking equipment, IoT devices, embedded communication modules, and other products requiring compact, embedded antennas with reliable performance.
This antenna features a square physical form factor suitable for surface mount on PCBs. It operates at a 2.4 GHz frequency with 10 MHz bandwidth for stable signal performance. Provides 2.4 dBi gain with omni-directional directivity and linear polarization.
Constructed from ceramic chip for compact and efficient design. Has 50 Ω impedance and a maximum VSWR of less than 2.0:1. Compact dimensions (3.2 x 1.6 x 1.2 mm) allow easy integration into embedded systems. Lightweight at approximately 0.02 g for minimal impact on product design.
Suitable for Bluetooth, ZigBee, and Wi-Fi applications worldwide.
This TE Connectivity antenna aligns with industrial and commercial standards, providing a reliable wireless solution in communication, IoT, and embedded systems sectors. Designed and manufactured in Korea, Republic Of, it ensures quality and performance, making it suitable for diverse electronics and networking applications.
Browse related WiFi Antennas and other high-quality electronic components in the EnvMart catalog for your wireless design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This antenna operates at a frequency of 2.4 GHz, covering a bandwidth of 10 MHz.
It provides a gain of 2.4 dBi with omni-directional directivity.
The dimensions of this model are 3.2 mm x 1.6 mm x 1.2 mm, allowing for compact integration into embedded applications.
The antenna has an impedance of 50 Ω, which ensures efficient power transfer.
The maximum Voltage Standing Wave Ratio (VSWR) is below 2.0:1, which minimizes signal reflection.
It supports Wi-Fi, Bluetooth, and ZigBee protocols within the 2400 - 2500 MHz range.
This antenna is designed for surface mount (SMT) on printed circuit boards.
It weighs approximately 0.02 g, making it lightweight for minimal impact on device design.
This product is manufactured in the Republic of Korea.
The antenna is constructed from ceramic chip material, contributing to its compact design.
This antenna is suitable for wireless networking equipment, IoT devices, and embedded communication modules.
The antenna features omni-directional directivity, allowing for consistent performance regardless of orientation.
