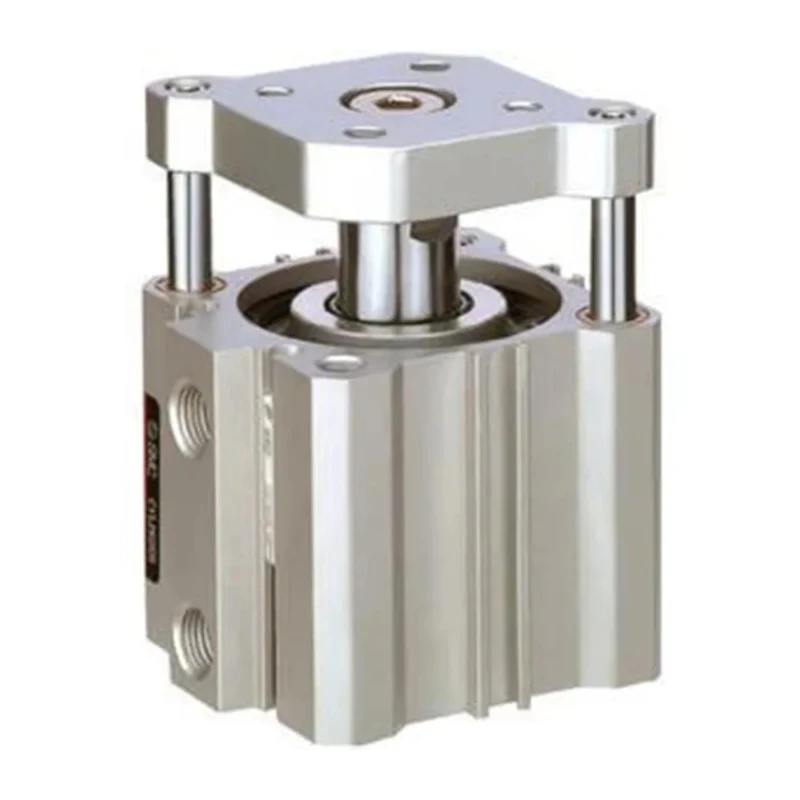

SMC Pneumatic Compact Cylinder 32mm Bore, 15 mm Stroke, Double Acting, Aluminium Alloy Body CDQMA32TF-15
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Length | 50.5mm |
| Model | CDQMA32TF-15 |
| Gross Weight | 287g |
| Mount Type | Both Ends Tapped |
| Series | CDQM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 15mm |
| Bore Diameter | 32mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Rubber Bumper |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M10 x 1.25 |
Key Features
- Constructed with aluminium alloy body for lightweight and durability.
- Designed with rubber bumper cushioning to reduce impact and wear.
- Mount type includes both ends tapped for versatile installation.
- Maximum operating pressure rated at 1 Mpa for reliable performance.
- Includes single rod type and metric piston rod thread size M10 x 1.25.
- Capable of maximum piston speed of 500 mm/s.
- Operating temperature range from -10°C to 60°C for varied environments.
- The cylinder has non-rotating accuracy of 0.2 mm or less for precision.
Product Description
SMC CDQMA32TF-15 Pneumatic Compact Cylinder features a 32mm bore diameter and 15 mm stroke length in the CDQM series, engineered with a double acting action type for versatile pneumatic applications.
The aluminium alloy body ensures lightweight strength and corrosion resistance, ideal for industrial environments. Rubber bumper cushioning protects the cylinder and reduces noise and wear during operation. The mount type with both ends tapped facilitates easy and secure installation in various setups.
Designed to operate at a maximum pressure of 1 Mpa and a piston speed up to 500 mm per second, this cylinder is suitable for high-performance pneumatic systems. It utilizes a single rod type with metric piston rod thread size M10 x 1.25, ensuring compatibility with standard pneumatic fittings.
The cylinder can safely operate within a temperature range from -10°C to 60°C, allowing use in diverse industrial and manufacturing conditions. Additionally, non-rotating accuracy of 0.2 mm or less enhances positional precision, making it well-suited for automation and manufacturing systems requiring exact control.
Aluminium alloy construction provides durability and lightweight strength. Rubber bumper cushioning reduces impact, prolonging the cylinder's life. Both ends tapped mount type enables flexible mounting options. Maximum operating pressure of 1 Mpa supports robust pneumatic operations.
Single rod type with M10 x 1.25 metric piston rod thread for standard fittings. Operating temperature range from -10°C to 60°C suitable for various industrial settings. Maximum piston speed of 500 mm/s ensures quick response times.
Non-rotating accuracy of 0.2 mm or less ensures precise and stable movement. This pneumatic compact cylinder is ideal for industrial, manufacturing, automation, and laboratory pneumatic applications requiring compact size and reliable operation.
Explore more pneumatic and hydraulic products for your industrial needs at EnvMart.
Explore more products in our Pneumatic Piston Rod Cylinders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 32mm.
This pneumatic cylinder has a stroke length of 15mm.
The maximum operating pressure is rated at 1 Mpa.
The body of this cylinder is constructed from aluminium alloy.
It is capable of a maximum piston speed of 500 mm/s.
The operating temperature range is from -10°C to 60°C.
This model features rubber bumper cushioning to reduce impact and wear.
The piston rod thread size is M10 x 1.25, which is a metric standard.
The mount type includes both ends tapped, allowing for versatile installation options.
The gross weight of this unit is 287g.
This cylinder utilizes a double acting action type.
This pneumatic cylinder is manufactured in Japan.
