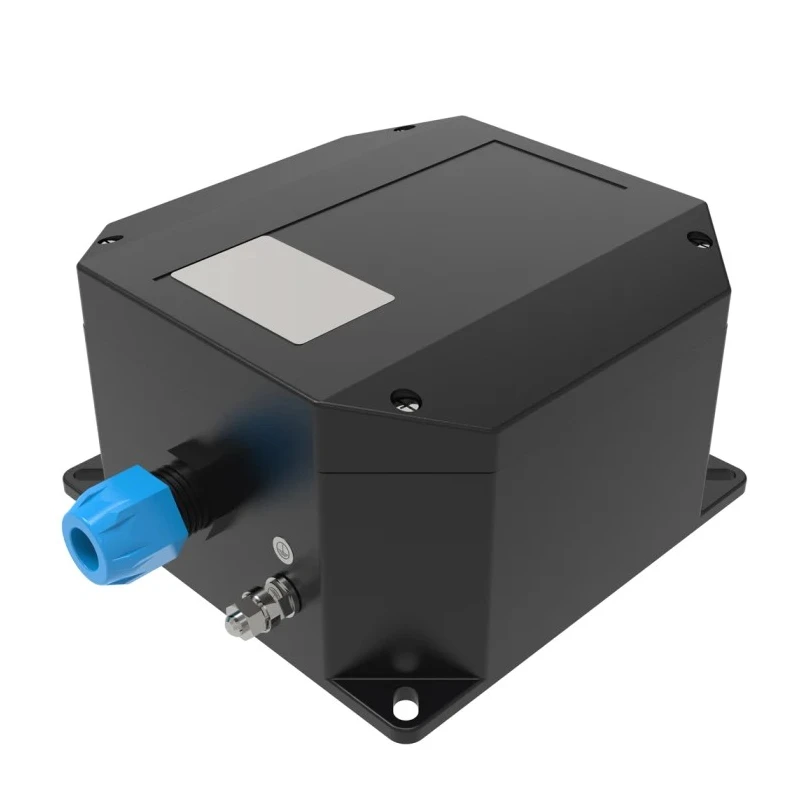

Rose Ex Polyester Series Black Fibreglass Reinforced Polyester Junction Box, IP66, 12 Terminals, ATEX, 161mm x 168803008

Rose 168803008 Ex Polyester Series Black Fibreglass Reinforced Polyester Junction Box is engineered to provide superior explosion protection and electrical enclosure safety. This junction box features a robust housing made of fibreglass reinforced polyester resin with graphite, delivering excellent resistance to corrosion and mechanical impact.

The enclosure is rated IP66, making it dust-tight and resistant to high-pressure water jets, ideal for harsh industrial and offshore environments such as oil rigs and refineries. Its ATEX certification ensures suitability in potentially explosive hazardous locations, providing users with high safety standards.

The junction box has a compact octagonal design measuring 161mm in length and width, and 95mm in height, fitting neatly into tight installation spaces. It includes 12 reliable terminals and a cable entry size of M20 x 1.5 for versatile wiring options.

The lid and base are securely fastened with corrosion-resistant stainless steel screws. The box’s material is UL94 V-0 rated, enabling it to self-extinguish within 10 seconds in fire events and thereby enhancing overall safety. The VMQ silicone seal around the enclosure ensures excellent resistance against oils and mechanical wear, extending product longevity.

Durable fibreglass reinforced polyester construction with graphite for harsh conditions. IP66 rating for dust and water ingress protection. Certified ATEX for explosion risk areas and hazardous locations. Compact footprint with dimensions of 161 x 161 x 95mm.

12 terminal connections with M20 x 1.5 cable entry facilitation. Stainless steel screws secure lid and base firmly against ingress. Self-extinguishing UL94 V-0 fire safety rating. Wide temperature range capability from -55°C to +135°C.

Lightweight design at approximately 0.9 kg.

This junction box is specifically suitable for industrial, laboratory, construction, offshore oil rigs, petrochemical, and HVAC applications requiring explosion-proof and weather-resistant enclosures. The Ex Polyester Series provides reliable protection for vital electrical connections in demanding environments.
