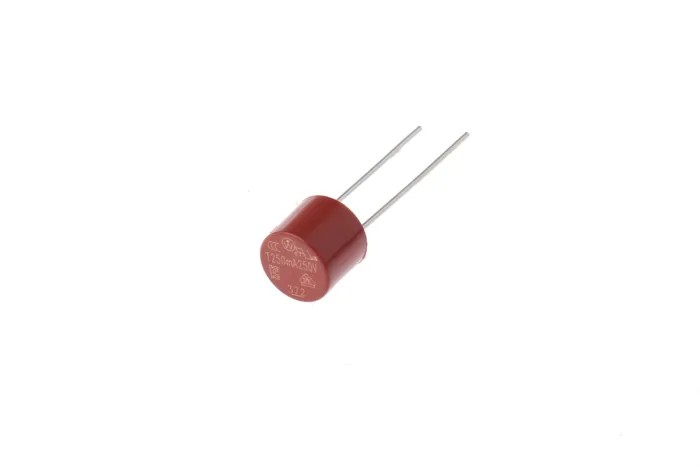

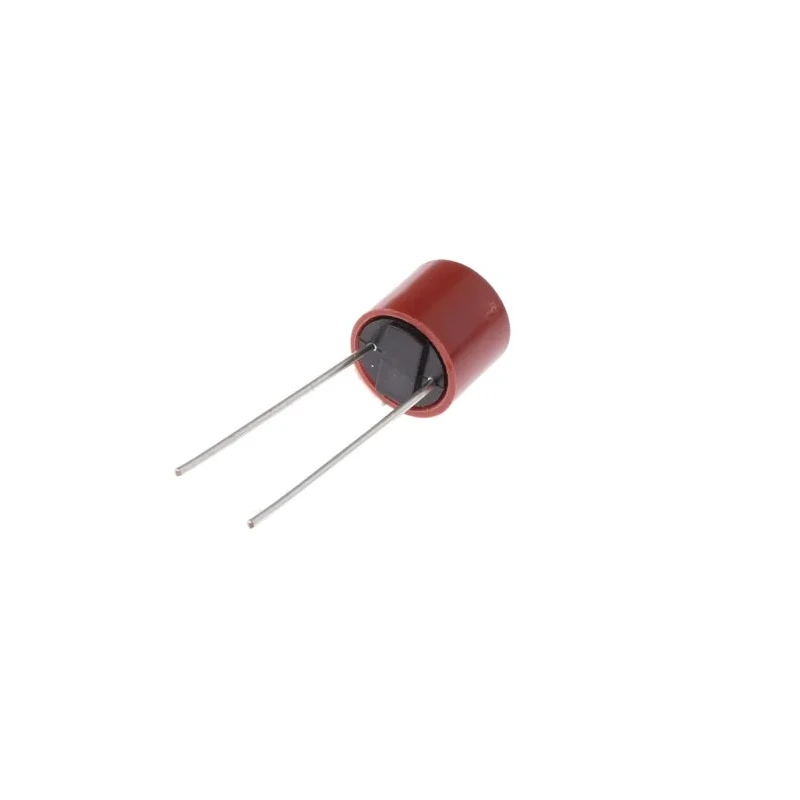

Littelfuse Non-Resettable Fuse Radial 250mA 250V AC Nylon Body Time Delay Series 372 3720250000

Littelfuse 3720250000 Non-Resettable Fuse featuring radial lead orientation, rated at 250mA current and 250V AC voltage, with a nylon thermoplastic body designed for robust circuit protection in industrial, electrical, and automation applications.

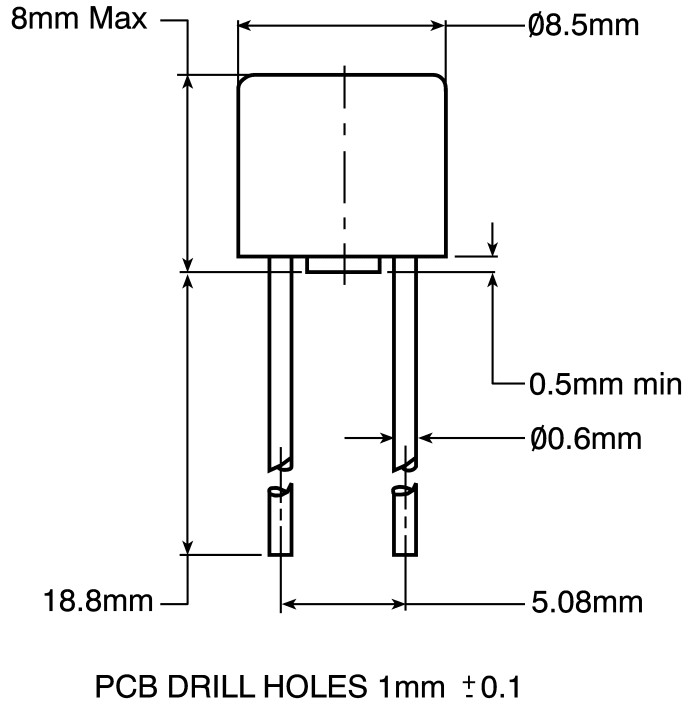

This fuse offers time delay fuse characteristics, allowing temporary overloads without blowing, making it ideal for motor and transformer inrush protections. The compact size, with 5.08 mm length and 8.5 mm diameter, facilitates installation in tight electrical assemblies.

The fuse has a breaking capacity of 35A which secures circuits against high fault currents effectively. It is qualified under strict industry standards including UL, CE, VDE, and RoHS, ensuring safety and environmental compliance.

Designed for automatic insertion, this Series 372 fuse can be directly soldered or used with a fuseholder (stock no. 110-7900). Its thermoplastic polyamide body material enhances durability and electrical insulation reliability, suitable for industrial and laboratory applications requiring dependable circuit protection.

The operating temperature range from -40°C to 85°C makes it suitable for harsh environmental conditions. The fuse is widely used in electrical panels, automation systems, consumer electronics, and control circuits.

Rated current of 250mA suitable for low current protection. Voltage rating of 250V AC ensures compatibility with common electrical systems. Radial lead orientation for easy mounting and soldering. Constructed with durable nylon thermoplastic body material for safety and reliability.

Body dimensions include 5.08 mm length and 8.5 mm diameter for compact installations. Time delay fuse characteristic suitable for transient fault tolerance. Breaking capacity of 35A providing effective circuit protection.

Operating temperature range from -40°C to 85°C for a wide range of environments. Compliance with UL, CE, VDE, and RoHS standards ensuring quality and regulatory adherence. Part of Littelfuse Series 372, optimized for automatic insertion and direct soldering or fuseholder use.

This Littelfuse non-resettable fuse is essential for protective circuit design in industrial, electrical installation, automation, and manufacturing contexts. Explore the full range of Non Resettable Fuse products in the Electronics & Electricals category at EnvMart for specialized circuit protection solutions.
