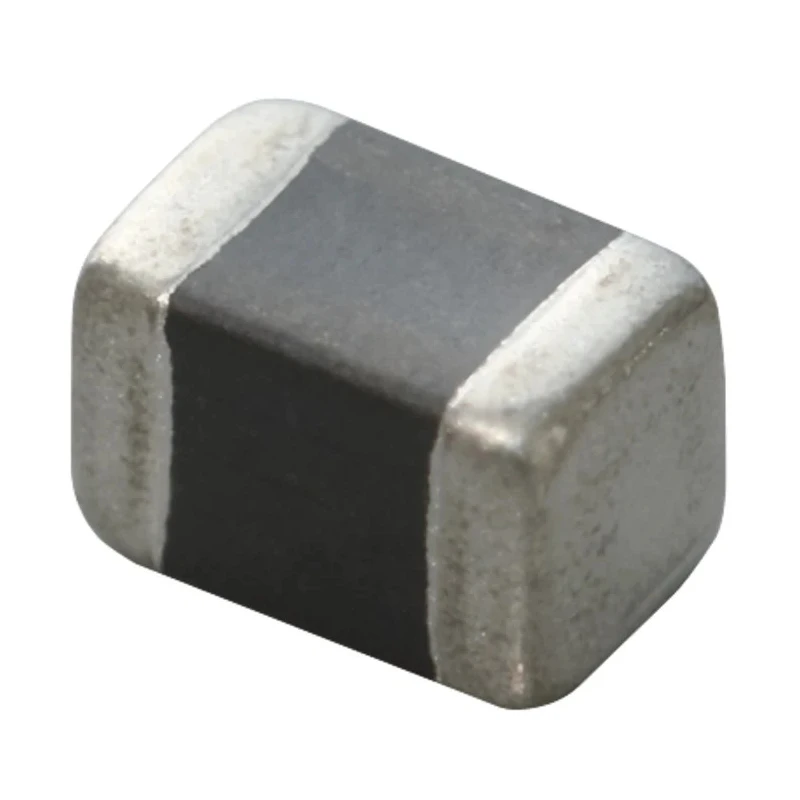

Murata 0603 Shielded Multilayer Surface Mount Inductor 33 μH Ferrite Core ±20% 30 mA LQM18DN330M70L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | LQM18DN330M70L |
| Depth | 0.8mm |
| Series | LQM |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 33μH |
| Package/Case | 0603 |
| Maximum DC Current | 30mA |
| Maximum DC Resistance | 3.12Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Ferrite Core |
| Automotive Standard | AEC-Q200 |
Key Features
- This inductor has a compact 0603 package size with dimensions of 1.6mm length, 0.8mm width, and 0.8mm height.
- It delivers a maximum DC current of 30 mA and maximum DC resistance of 3.12 Ω.
- The component is shielded to reduce electromagnetic interference in sensitive circuits.
- Operating temperature ranges from -55°C to 125°C, suitable for a wide range of environments.
- Complies with automotive standard AEC-Q200 ensuring high reliability.
- Constructed with a ferrite core and ferrite multilayer design for optimized inductance.
- The inductor is molded and designed for surface mount termination style.
Product Description
Murata LQM18DN330M70L is a 0603 shielded multilayer surface mount inductor designed with a ferrite core, providing an inductance of 33 μH with ±20% tolerance. This inductor is especially suited for power lines and electronic filtering applications where noise reduction is important.
The compact package measures 1.6mm in length, 0.8mm in width and height, making it ideal for high-density surface mount circuit boards. The unit supports a maximum DC current of 30 mA and features a maximum DC resistance of 3.12 Ω, aligning with performance requirements for low power circuits.
Operating reliably in a temperature range from -55°C up to 125°C, this component meets stringent automotive AEC-Q200 standards, indicating robust performance under harsh environmental conditions. The shielding significantly reduces electromagnetic interference and crosstalk, ensuring signal integrity.
The inductor construction includes a ferrite core and multilayer design, molded for durability and optimized magnetic properties, facilitating effective inductance and low losses. Its surface mount termination style makes it compatible with automated PCB assembly processes.
This inductor comes with a Ferrite Core construction and molded design for rugged performance. Its shielding capability is ideal for sensitive electronic applications requiring noise immunity. The compliance with AEC-Q200 standard assures its suitability for automotive and industrial use cases.
Its operating temperature range supports varied commercial, industrial, automotive, and laboratory environments. Compact 0603 package supports high-density PCB layouts and automated manufacturing.
Applications include power supply filtering, signal conditioning, and noise suppression in industrial, automotive, consumer electronics, and communication devices. The product is manufactured in Japan, ensuring high quality and reliability.
Explore more Murata Surface Mount Inductors and related electronic components at EnvMart for diverse industrial and laboratory needs.
