| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | LQM18DN150M70L |
| Depth | 0.8mm |
| Series | LQM |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 15μH |
| Package/Case | 0603 |
| Maximum DC Current | 80mA |
| Maximum DC Resistance | 2.54Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Ferrite Core |
| Automotive Standard | AEC-Q200 |

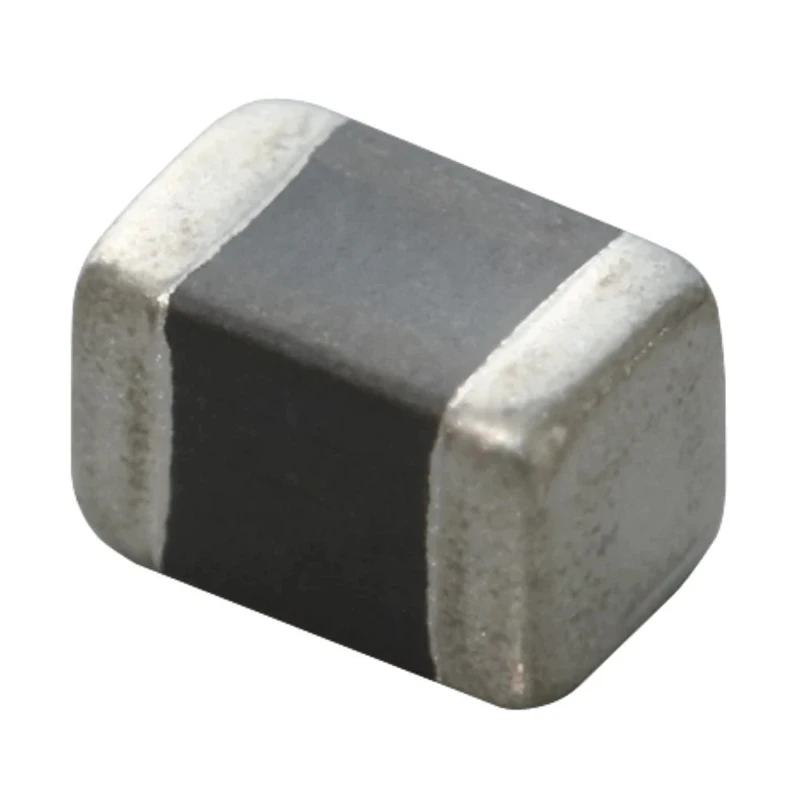

The Murata LQM18DN150M70L is a 0603 shielded multilayer surface mount inductor featuring a ferrite core. It provides an inductance of 15 μH with a tolerance of ±20% and supports a maximum DC current of 80 mA. This inductor is designed for power line applications requiring filtering and EMI reduction.
This component has a compact footprint with dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height, suitable for dense PCB layouts. Its ferrite core construction ensures stable performance across temperature variations ranging from -55°C to 125°C.
The inductor has a maximum DC resistance of 2.54 Ω, balancing efficiency and performance. It conforms to the automotive industry standard AEC-Q200, ensuring robustness for automotive and industrial applications. Shielding helps mitigate electromagnetic interference, enhancing signal integrity.
Its surface mount termination style eases PCB assembly and improves reliability in manufacturing processes. The inductor is molded to protect the internal structure, further increasing durability.
Compact 0603 package for space-saving design. Ferrite core construction for reliable inductance. Wide operating temperature range from -55°C to 125°C. Automotive AEC-Q200 standard compliance. Shielded design reduces EMI.
Maximum DC current of 80 mA. Inductance tolerance ±20%. Low DC resistance of 2.54 Ω.
This Murata inductor is ideal for industrial, automotive, and electronic circuit applications requiring reliable power line filtering and compact mounting solutions. Available with detailed technical support and documentation to assist in integration.
