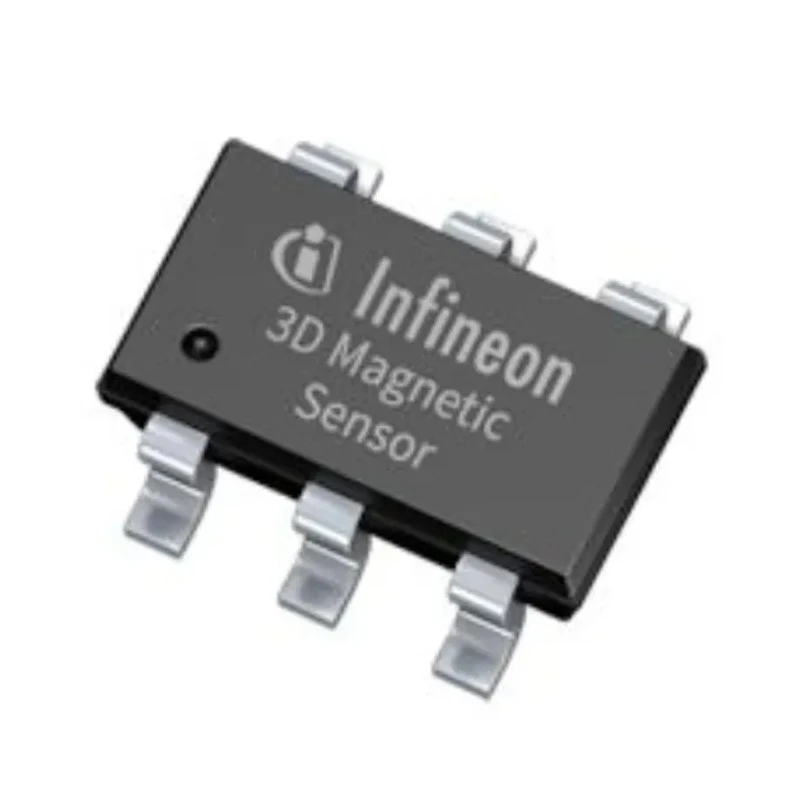

Infineon 3 Axis Surface Hall Effect Sensor 2.8 V to 3.5 V I2C Interface TSOP 6-Pin TLE493DA2B6HTSA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon 3 Axis Surface Hall Effect Sensor 2.8 V to 3.5 V I2C Interface TSOP 6-Pin TLE493DA2B6HTSA1

Name: Infineon 3 Axis Surface Hall Effect Sensor 2.8 V to 3.5 V I2C Interface TSOP 6-Pin TLE493DA2B6HTSA1
Brand: Infineon
SKU: 171468
Price: 1.25 USD
Availability: InStock



Category Hall Effect Sensor Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	1.1mm
Length	2.9mm
Model	TLE493DA2B6HTSA1
Technology	Analogue
Sensor Type	Hall Effect
Width	1.6mm
Mount Type	Surface
Series	TLE493D-A2B6
Maximum Operating Temperature	125°C
Package Type	TSOP
Minimum Operating Temperature	-40°C
Number of axis	3
Interface Type	I2C
Pin Count	6
Maximum Supply Voltage	3.5V
Minimum Supply Voltage	2.8V
Supply Current	3.4mA

Key Features

The sensor detects magnetic fields along the X, Y, and Z axes accurately.
Equipped with a low-power analogue technology suitable for automotive applications.
Compact TSOP package with 6 pins allows easy surface mounting on PCBs.
Wide operating temperature range of -40°C to 125°C supports harsh environments.
Supply current is low at 3.4 mA ensuring efficient power consumption.
Ideal for use in automotive multi-function steering wheel sensing and industrial magnetic field detection.
Device configurability offers flexibility across various platforms.
Measures magnetic flux with high range while ignoring smaller stray disturbances.

Product Description

Infineon TLE493DA2B6HTSA1 is a 3-axis surface mount Hall Effect sensor designed for precise measurement of magnetic fields in X, Y, and Z directions. It operates within a supply voltage range of 2.8 V to 3.5 V using an I2C communication interface and is packaged in a compact TSOP 6-pin surface mount format.

This sensor uses low-power analogue technology, making it suitable for automotive and industrial sensing applications, especially in multi-function steering wheel controls and magnetic field detection systems. Its wide operating temperature range from -40°C to 125°C allows reliable operation even in harsh environmental conditions.

The sensor's internal multiplexer sequentially connects the three Hall probes to an analog-to-digital converter, efficiently reducing component count and ensuring platform adaptability via device configurability. It measures magnetic flux with a broad range, effectively filtering out smaller stray field disturbances which enhances signal accuracy.

Its small form factor (dimensions: 2.9mm length, 1.6mm width, and 1.1mm height) and low supply current of 3.4 mA enable integration in compact, power-sensitive electronic devices. The device does not comply with automotive standards but is still widely used in automotive sensing applications due to its robust design.

The sensor detects magnetic fields along three axes (X, Y, Z) accurately. Compact TSOP 6-pin surface mount package reduces PCB space. Wide operating temperature range for automotive and industrial use. Low supply current supports power-efficient designs.

I2C interface enables straightforward digital communication. Designed for reliable magnetic sensing in steering and automotive systems. Device configurability allows use across multiple platforms. Internal multiplexer and ADC integration minimize additional components.

Infineon's TLE493DA2B6HTSA1 is categorized under Hall Effect Sensors and is an excellent choice for applications requiring sensitive 3D magnetic field measurement. It is ideal for industrial machines, automotive, HVAC, and laboratory instruments requiring precise motion or position detection.
