RS PRO 250 MHz PC Based PC Oscilloscope 4 Channels USB Interface 8 bit Vertical Resolution 220-5867
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 220-5867 |
| Depth | 35mm |
| Operating System | Windows 7, Windows 8, Windows 10 |
| Bandwidth | 250MHz |
| Series | RS PRO |
| Plug Type | USB |
| Interfaces | USB oscilloscopes is the perfect plug and play solution to applications where mobility and flexibility for measurement is required |
| Number Of Channels | 4 |
| Vertical Resolution | 8 bit |
| Rise Time | 1.4ns |
| Oscilloscope Type | PC Based |
| Minimum Vertical Sensitivity | 10V/div |
| Oscilloscope Form | Pc Based |
| Minimum Time Base | 2ns/div |
| Maximum Vertical Sensitivity | 2mV/div |
| Maximum Time Base | 100s/div |
| Bandwidth options available | 70 MHz to 250 MHz with 4 channels |
Key Features

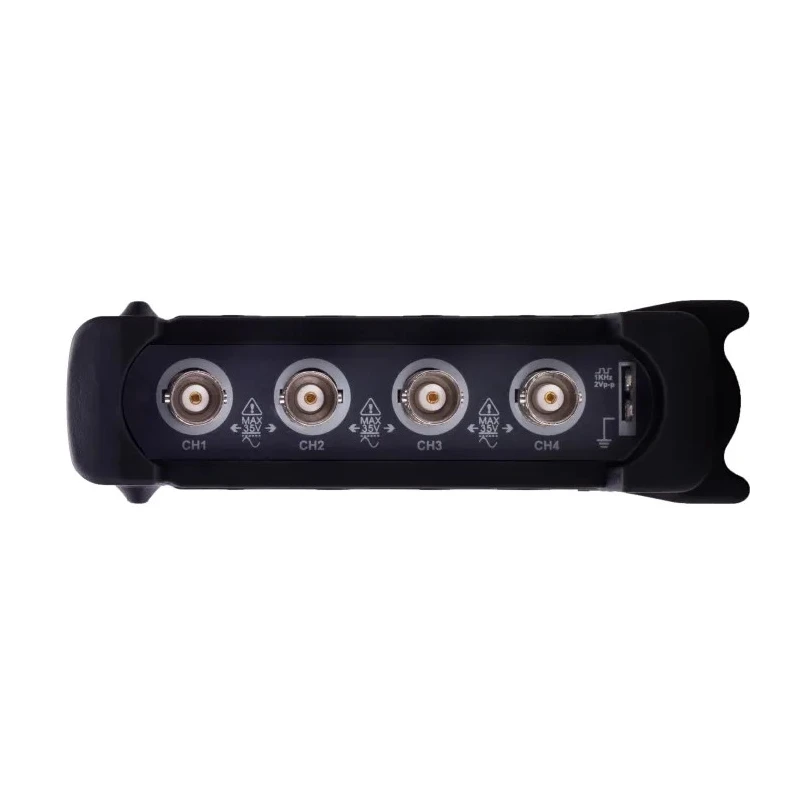

- Offers 250 MHz bandwidth with 4 independent channels for multi-signal analysis.
- Features 8 bit vertical resolution ensuring accurate waveform representation.

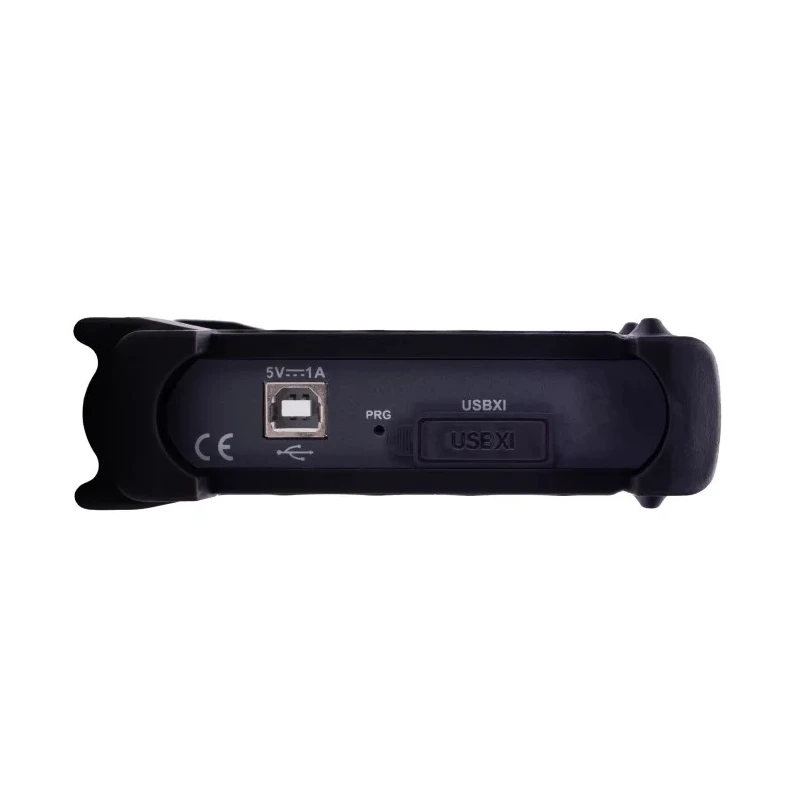

- USB 2.0 interface allows easy plug and play connectivity with no external power needed.
- Includes over 20 automatic measurement functions with advanced waveform analysis tools.

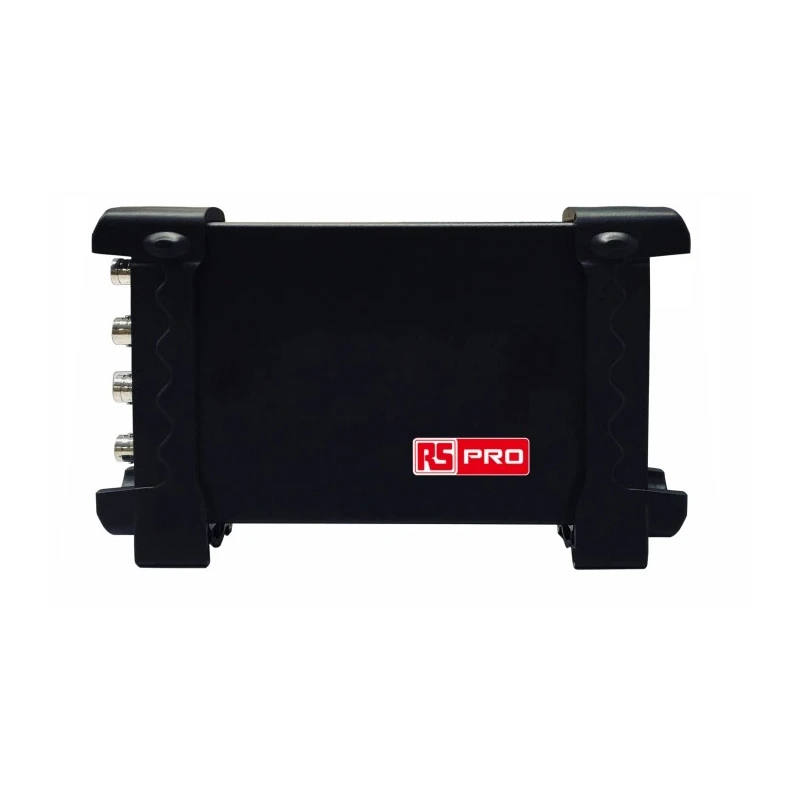

- Compact anodised aluminium body provides excellent heat and abrasion resistance.
- Supports Windows 7, 8, and 10 operating systems for wide compatibility.
- Comes with a 60 MHz passive probe, alligator clip cable, USB cable, and software installation CD.
- Minimum time base of 2 ns/div and maximum time base of 100 s/div for flexible signal capture.
Product Description
RS PRO 220-5867 is a high-performance 250 MHz PC based oscilloscope offering 4 channels and USB connectivity. This digital oscilloscope combines portability with the accuracy and features of benchtop instruments, making it ideal for industrial, laboratory, and field applications.
Designed with a sturdy anodised aluminium enclosure, the device provides excellent durability and thermal stability. The 8 bit vertical resolution and 1 GSa/s real-time sampling rate ensure detailed signal acquisition.
It includes more than 20 automatic measurement functions, a Pass/Fail check, and engineering fit functions, which facilitate comprehensive waveform analysis. Features such as waveform averaging, afterglow, and FFT spectral analysis enhance diagnostic capabilities.
The oscilloscope interfaces via USB 2.0, requiring no external power, and supports Windows 7, 8, and 10 platforms. The minimum time base of 2 ns/div and maximum time base of 100 s/div provide versatility across various signal timing needs.
Supplied accessories include a 60 MHz bandwidth passive probe, alligator clip cable, USB cable, and installation CD with user manual. This package enables quick setup and operation.
Applications include electronics circuit testing, automotive electronics diagnostics, wind and photovoltaic power equipment testing, and other industrial measurement tasks.
Its compact size and lightweight design enhance portability, making it a practical instrument for on-site testing and laboratory work. This oscilloscope is an excellent choice for engineers, technicians, and researchers demanding reliable, USB-connected measurement tools.
Offers 250 MHz bandwidth with 4 independent channels for multi-signal analysis. Features 8 bit vertical resolution ensuring accurate waveform representation. USB 2.0 interface enables plug and play connection with no external power required.
Includes advanced measurement functions including Pass/Fail checks and FFT spectrum analysis. Compact anodised aluminium housing provides durable and professional-grade performance. Supports Windows 7, 8, and 10 operating systems for easy integration.
Supplied with accessories including passive probe, alligator clip cable, and installation CD. Flexible time base ranges from 2 ns/div to 100 s/div for diverse testing needs. Ideal for industrial, laboratory, automotive, and renewable energy sector applications.
Lightweight and portable design suitable for field and bench use. Explore the full range of Oscilloscopes and test instruments from RS PRO on EnvMart for advanced measurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers a bandwidth of 250 MHz, allowing for detailed signal analysis across various applications.
It features 4 independent channels, enabling multi-signal analysis for complex measurements.
The oscilloscope has an 8 bit vertical resolution, which ensures accurate waveform representation during measurements.
It supports a minimum time base of 2 ns/div and a maximum time base of 100 s/div, providing flexibility for various signal timing needs.
This unit supports Windows 7, 8, and 10 operating systems, ensuring wide compatibility for users.
Included accessories are a 60 MHz passive probe, alligator clip cable, USB cable, and a software installation CD.
The rise time is 1.4 ns, which contributes to its ability to capture fast signal changes accurately.
The maximum vertical sensitivity is 2 mV/div, allowing for precise measurements of low-voltage signals.
It is a PC-based oscilloscope, which means it connects to a computer via USB for operation and analysis.
The minimum vertical sensitivity is 10 V/div, suitable for measuring higher voltage signals.
This model is designed as a PC-based oscilloscope, making it portable and suitable for both field and laboratory use.
It includes over 20 automatic measurement functions, such as Pass/Fail checks and FFT spectral analysis, enhancing its diagnostic capabilities.
