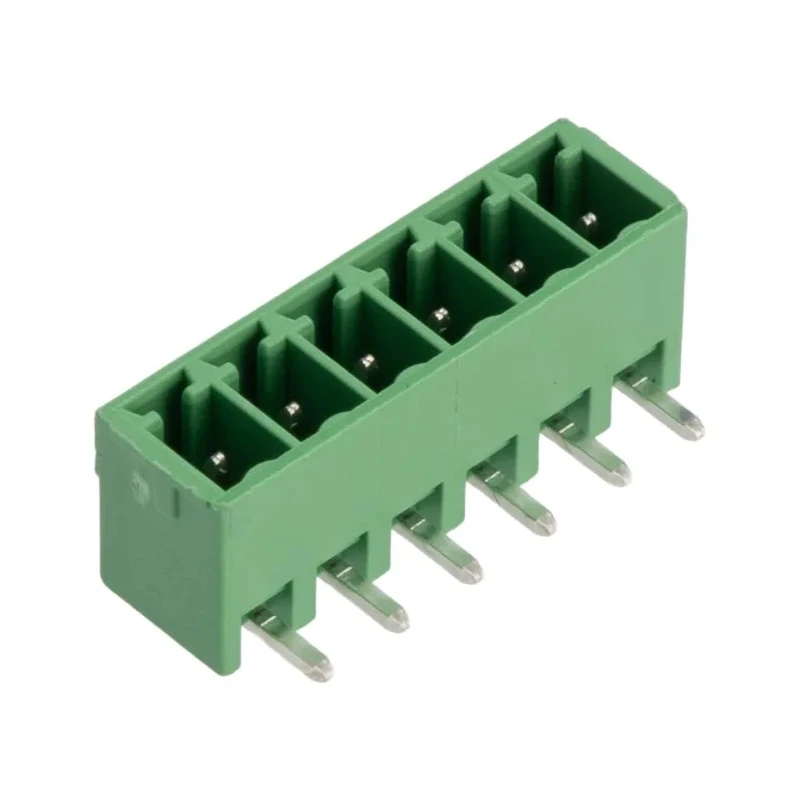

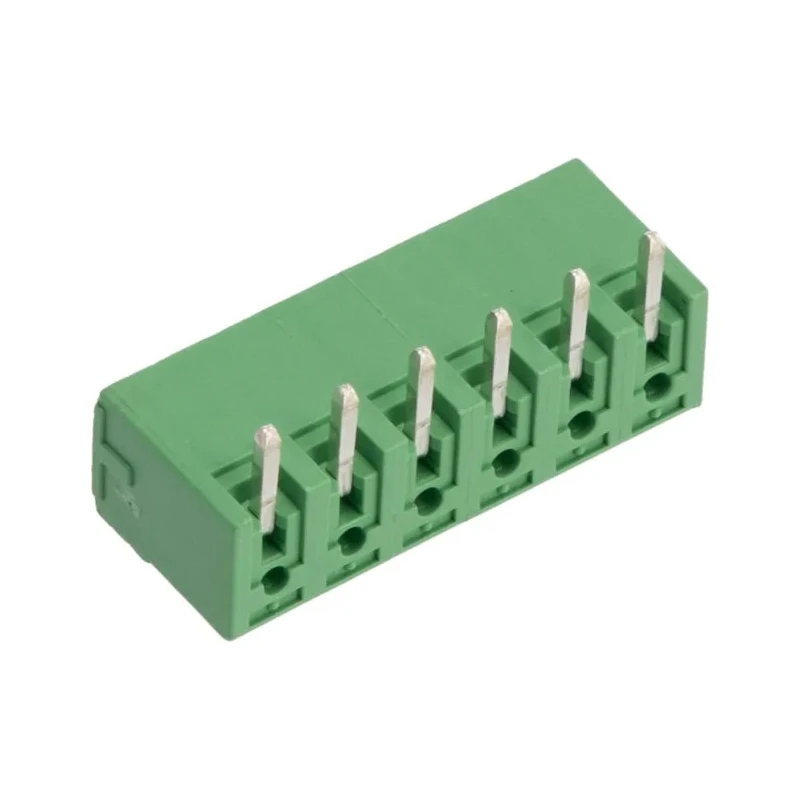

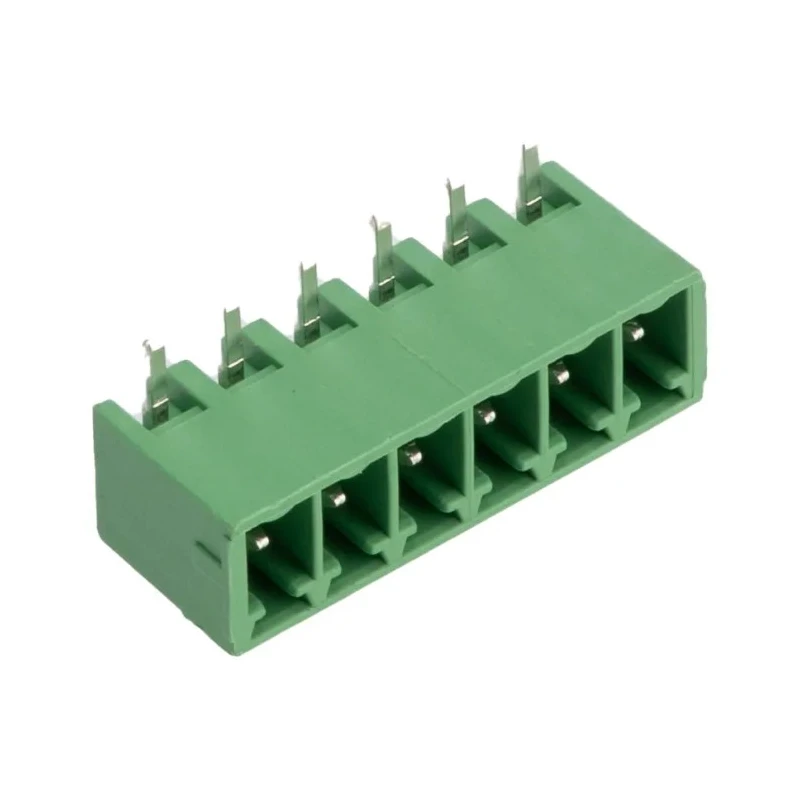

Phoenix Contact MC 1.5/ 6-G-3.81 Series Pluggable Terminal Block, 6-Contact, 3.81 mm Pitch, Right Angle, 8A, 300V 1803316
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Right Angle |
| Current | 8A |
| Length | 9.2mm |
| Model | 1803316 |
| Depth | 10.65mm |
| Width | 24.25mm |
| Housing Material | Polybutylene Terephthalate |
| Series | MC 1.5/ 6-G-3.81 |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Standards/Approvals | EU RoHS, EU REACH SVHC, cULus, CSA, CHINA RoHS |
| Number of Contacts | 6 |
| Connector Gender | Male |
| Maximum Wire Size mm² | 1.5mm² |
| Wire Connection Method | Solder |
Key Features
- This terminal block supports up to six connections for multiple circuits.
- It features a 3.81 mm pitch compatible with various systems.
- Rated for 8A current and 300V voltage ensuring dependable performance.
- Constructed with Polybutylene Terephthalate housing for durability and green color for enhanced visibility.
- Utilizes a solder connection method with right angle orientation for flexible device design.
- Through-hole mounting simplifies installation on PCBs.
- Suitable for automation, electrical distribution, control panels, and industrial environments.
Product Description
Phoenix Contact 1803316 is a pluggable terminal block series MC 1.5/ 6-G-3.81 designed for reliable and efficient electrical connections. This product features six contact points arranged in a single row with a 3.81 mm pitch, allowing secure and stable connectivity in various electronic and industrial applications.
The terminal block supports a current rating of 8 amperes and a voltage rating of 300 volts, suitable for high-voltage environments. Its housing is made from durable Polybutylene Terephthalate material in green color which improves visibility and marks the component for easy identification.
This right angle terminal block employs a solder connection method, ensuring robust electrical contact. The through-hole mounting design facilitates easy and secure installation on printed circuit boards (PCBs), making it suitable for assembly using wave soldering methods.
Key industrial applications include automation systems, electrical control panels, machinery, and outdoor or harsh environment installations where secure power and signal distribution are essential. The terminal block complies with multiple standards including EU RoHS, EU REACH SVHC, cULus, CSA, and China RoHS, reinforcing its suitability across global markets.
This product supports six connections suitable for multi-circuit setups. The 3.81 mm pitch ensures broad compatibility with standard PCBs. 8A current rating provides reliable power handling under load. The robust Polybutylene Terephthalate housing ensures durability and safety.
The right angle and through-hole design simplify PCB layout and assembly. Green color housing assists in visual identification during installation. Applications cover automation, control panels, and industrial power distribution.
Package contents include one pluggable terminal block of the MC 1.5/ 6-G-3.81 series, model 1803316. This product is made in Germany and is delivered in new condition. Explore more products in the Pluggable Terminal Blocks category on EnvMart for comprehensive electrical connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a current rating of 8A and a voltage rating of 300V, making it suitable for high-voltage applications.
The contacts of this model are arranged with a pitch of 3.81 mm, allowing for compatibility with various systems.
It features six contacts, which supports multiple circuit connections.
This terminal block utilizes a solder connection method for securing electrical contacts.

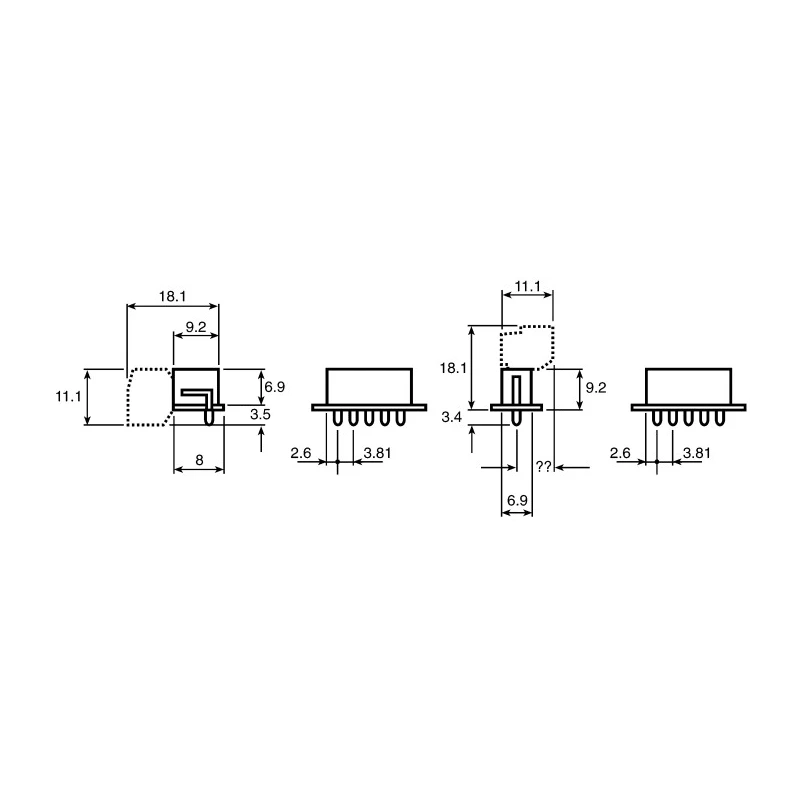

The dimensions are approximately 9.2 mm in length, 10.65 mm in depth, and 24.25 mm in width.
The housing is constructed from Polybutylene Terephthalate, which enhances its durability.
This model has a right angle orientation, which allows for flexible device design and layout.
It is manufactured in Germany, ensuring adherence to high manufacturing standards.
It complies with several standards including EU RoHS, EU REACH SVHC, cULus, CSA, and China RoHS.
This terminal block is suitable for automation systems, electrical control panels, and industrial environments where secure power and signal distribution is essential.
The maximum wire size that this terminal block can accommodate is 1.5 mm².
It features a through-hole mounting design, making installation on printed circuit boards (PCBs) straightforward.
