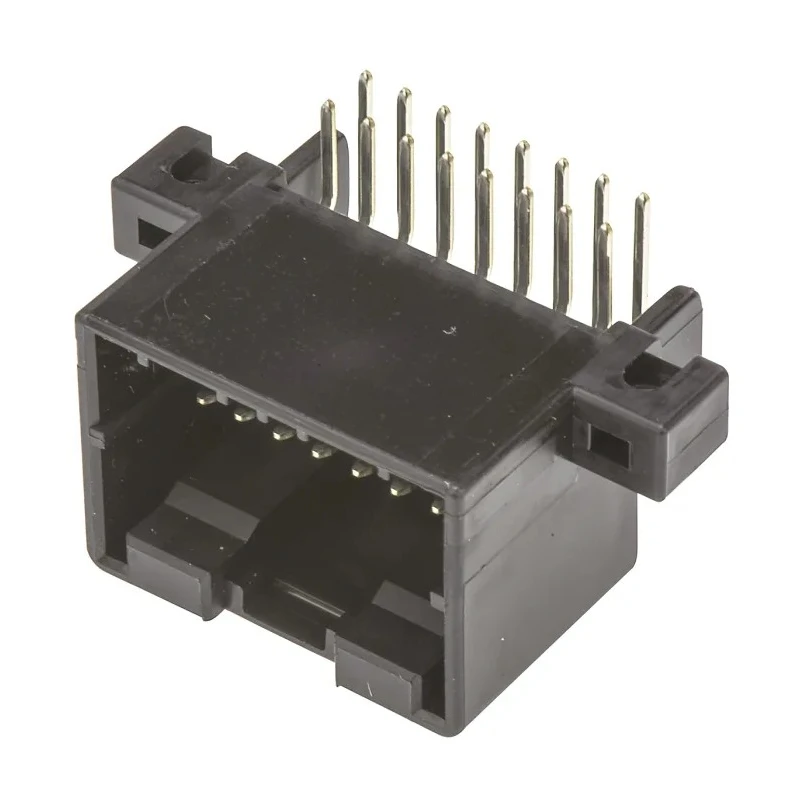

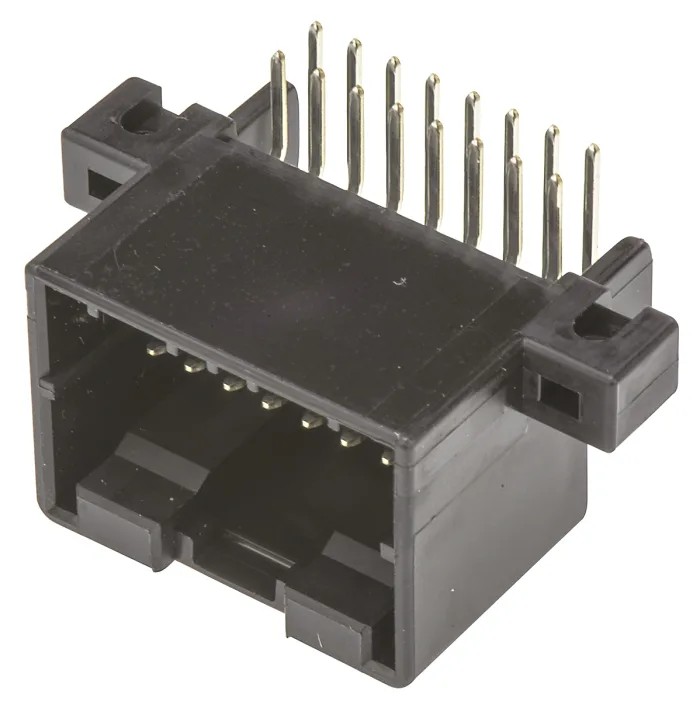

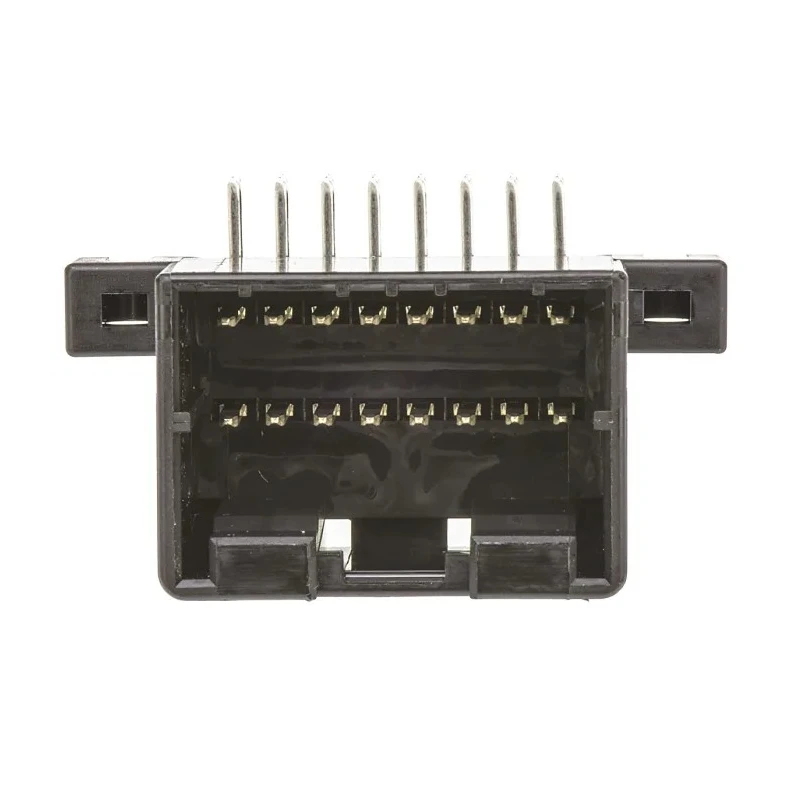

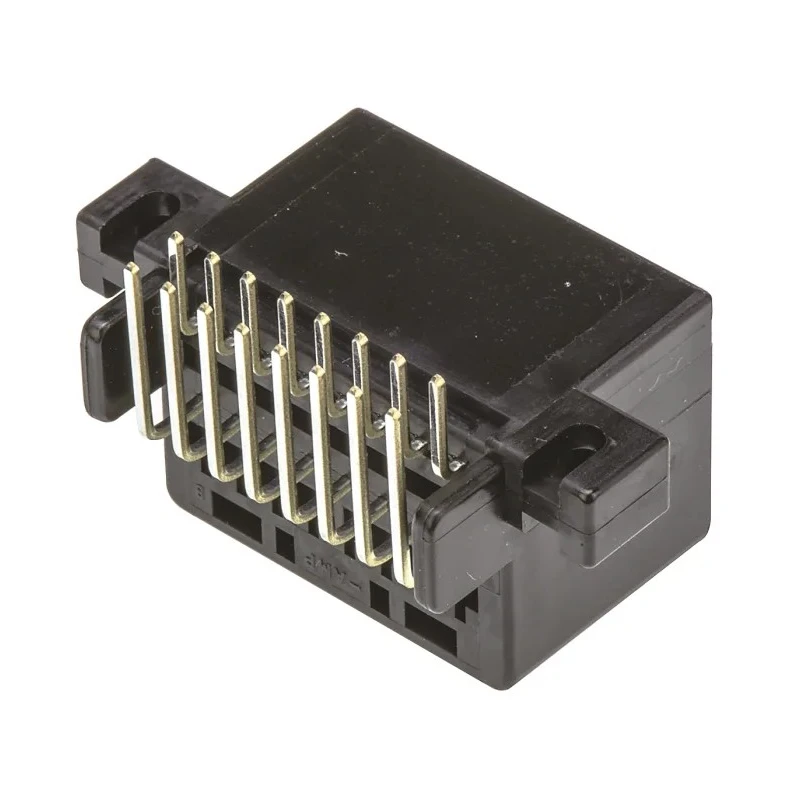

TE Connectivity MULTILOCK 040 Female Connector Housing 2.5 mm Pitch 16 Way 2 Row Right Angle 174053-2
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Length | 35mm |
| Model | 174053-2 |
| Width | 16.7mm |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Series | MULTILOCK 040 |
| Number of Rows | 2 |
| Pitch | 2.5mm |
| For Use With | Multilock Wire-to-Board Connector |
| Number of Contacts | 16 |
| Connector Gender | Female |
Key Features
- The connector features a high density 2.5 mm pitch design for reliable contact spacing.
- It includes an integral double locking system for secure contact retention.
- The housing is made of durable Polybutylene Terephthalate material suitable for automotive environments.
- It supports through hole mount type and right angle orientation for PCB connections.
- Provides pin protection from rocking action during mating and unmating cycles.
- Designed for automotive applications including powertrain, safety, and convenience systems.
- Suitable for wire-to-board connections using Multilock wire-to-board connector systems.
- Compact dimensions of 35 mm length and 16.7 mm width optimize PCB space.
Product Description
TE Connectivity 174053-2 MULTILOCK 040 Female Connector Housing is a high-quality connector housing designed primarily for automotive PCB wiring applications. Featuring a 2.5 mm pitch and 16 contacts arranged in 2 rows, this right angle connector housing ensures secure and reliable connection for wire-to-board interfaces.
The housing material is durable Polybutylene Terephthalate, providing strong mechanical and thermal stability, essential for automotive environments prone to vibration and temperature fluctuations. Its integral double locking system prevents inadvertent disconnections, enhancing operational safety and reliability.
This connector includes pin protection to shield contacts from rocking motions that could cause wear or damage during connector mating and unmating. The through hole mount type enables secure PCB placement, while the compact form factor with 35 mm length and 16.7 mm width supports space-constrained board designs.
Widely applied in automotive powertrain systems, safety and security modules, convenience features such as air conditioning and heated seats, driver information systems, and body and chassis controls, the MULTILOCK 040 series is versatile and robust. Although tailored for automotive use, it is suitable for various general purpose electronic and industrial applications requiring dependable wiring interfaces.
The connector supports wire-to-board connections utilizing Multilock connector systems for ease of assembly. The compact design maximizes PCB real estate without sacrificing performance. Durable housing material withstands harsh operating conditions.
Locking mechanism ensures contact retention and electrical integrity. Pin protection reduces mechanical wear enhancing long-term reliability. Right angle orientation facilitates flexible wiring layouts and assembly. Manufactured in Japan ensuring high manufacturing standards and quality.
Environmentally, the product is RoHS compliant and engineered for automotive sector standards, although no specific certifications are mentioned. The package includes the single female connector housing suitable for integration into larger Multilock systems.
Explore more Connector Housing solutions and specialized automotive connectors in the Electronics & Electricals category at EnvMart to support your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 2.5 mm pitch and has 16 contacts arranged in 2 rows.
The housing is made of Polybutylene Terephthalate, which provides strong mechanical and thermal stability suitable for automotive environments.
This connector housing is designed with a right angle orientation, facilitating flexible wiring layouts.
The dimensions of this unit are 35 mm in length and 16.7 mm in width, optimizing PCB space.
It supports a through hole mount type for secure placement on PCBs.
It includes an integral double locking system for secure contact retention and pin protection to shield contacts from rocking during mating and unmating cycles.
It is primarily designed for automotive applications, including powertrain systems, safety modules, and convenience features like air conditioning and heated seats.
Yes, this connector housing is RoHS compliant, making it suitable for environmentally conscious applications.
This connector housing is female, designed for use with Multilock wire-to-board connectors.
The MULTILOCK 040 connector housing is manufactured in Japan, ensuring high manufacturing standards.
It supports wire-to-board connections using Multilock connector systems, facilitating ease of assembly.
This model belongs to the MULTILOCK 040 series, which is known for its high-density design.
