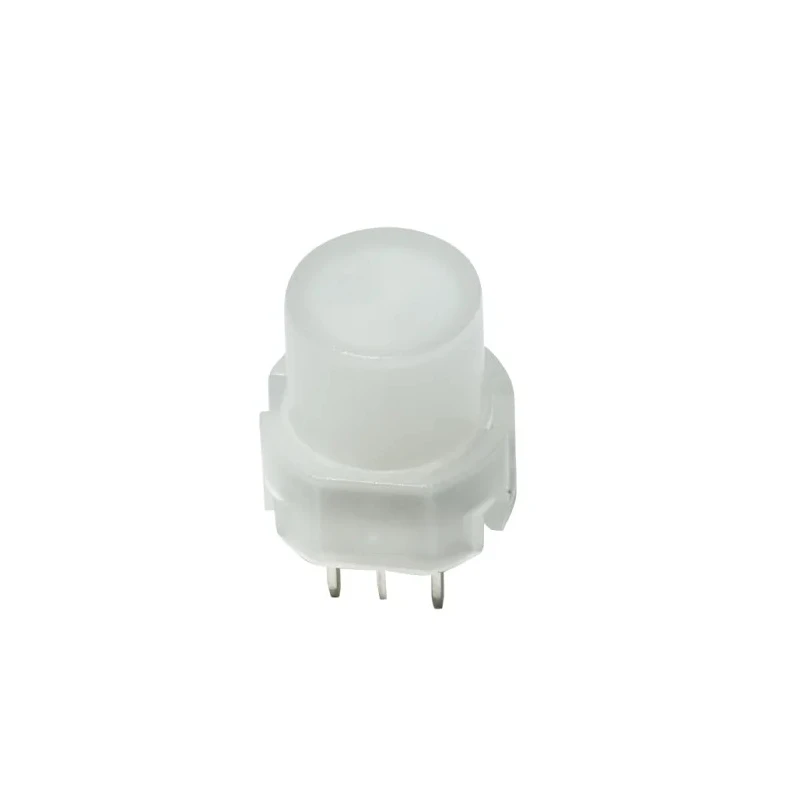

C & K D6 Series Illuminated Momentary Push Button Switch Through Hole 11.4 mm Cutout SPST Green LED IP40 35 V dc D6RLGNF1LFS

Name: C & K D6 Series Illuminated Momentary Push Button Switch Through Hole 11.4 mm Cutout SPST Green LED IP40 35 V dc D6RLGNF1LFS
Brand: C & K
SKU: 170413
Price: 20.22 USD
Availability: InStock



Category Push Button Switches Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Model	D6RLGNF1LFS
IP Rating	IP40
Mount Type	Through Hole
Series	D6
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	Momentary
Minimum Operating Temperature	-20°C
Panel Cutout Size	11.4 mm
Terminal type	PCB Pin
Standards/Approvals	RoHS
LED Colour	Green
Switch Operation	Momentary
Actuator Colour	White
Contact DC Voltage	35V dc
Actuator Style	Button
Switch Contact Current	10mA
Contact AC Voltage	35V ac

Key Features

The switch features a white button actuator designed for momentary operation.
It fits an 11.4 mm panel cutout and mounts through-hole style on the PCB.
Single Pole Single Throw (SPST) contact configuration supports 10 mA current at 35 V dc/ac.
Operating temperature ranges from -20°C to 85°C ensuring durability in various environments.
The unit is RoHS compliant and designed for use in electronic games, video equipment, and appliances.
Green LED illumination enhances visibility and status indication.
The switch supports a contact voltage of up to 35 V both dc and ac.

Product Description

C & K D6RLGNF1LFS Illuminated Momentary Push Button Switch is engineered for precise momentary switching operation with a smooth tactile response, featuring a white actuator button and green LED illumination for clear status indication. Designed for through-hole mounting with a compact 11.4 mm panel cutout, it supports SPST contact configuration suitable for low current switching of 10 mA at 35 V dc/ac.

This switch is RoHS compliant and built to withstand operating temperatures from -20°C up to 85°C, making it viable across a range of industrial and commercial applications including electronic games, video systems, and household appliances. The IP40 rating provides moderate protection against solid objects ensuring reliable operation in typical indoor environments.

The standard PCB pin terminals facilitate easy integration into electronic assemblies with the 'build-a-switch' modular concept allowing customization to fit diverse design needs. Its compact form factor and robust specifications suit it for use in laboratory equipment, electronic manufacturing, automation control panels, and other electronics requiring user interface controls.

The switch has a white-colored button actuator for precise tactile engagement. Momentary operation ensures the switch returns to its original state after being pressed. Illumination by green LED aids in operational status visibility.

Through-hole mount type enables secure PCB installation. SPST contact configuration controls a single circuit path with single throw action. Supports contact voltages of 35 V dc and 35 V ac for versatile application. Operating temperature range from -20°C to 85°C ensures device reliability.

Meets RoHS standards contributing to environmentally safe manufacturing compliance. IP40 ingress protection rating guards against penetration of solid objects larger than 1mm. Designed and manufactured with high build quality suitable for industrial and commercial use.

For electrical, automation, and electronic equipment manufacturers seeking reliable, customizable momentary push button switches, the C & K D6RLGNF1LFS offers proven performance and ease of integration. Explore the broad range of compatible Push Button Switches and components for tailored control solutions.
