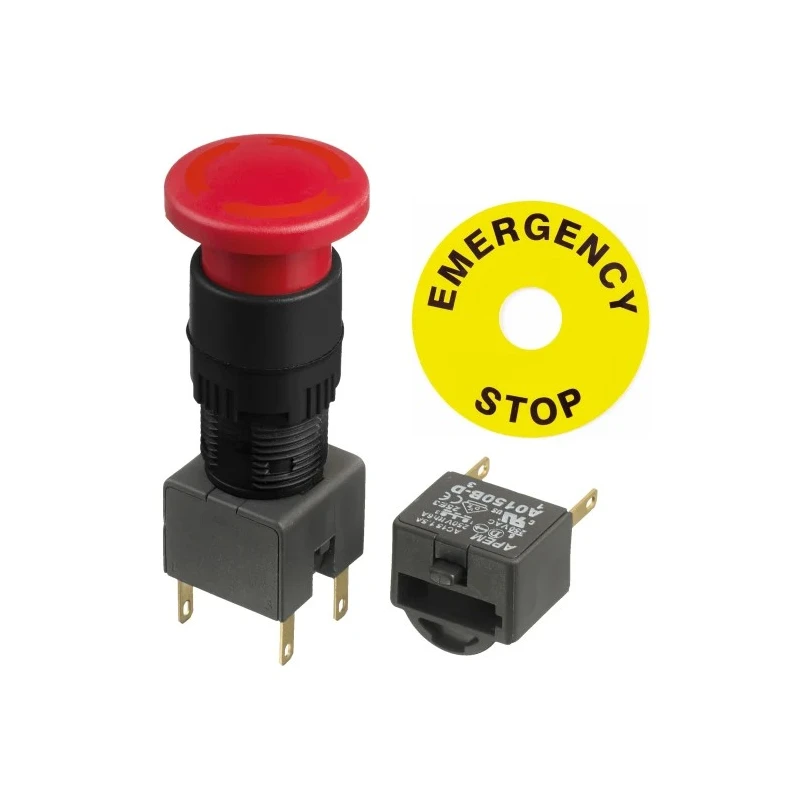

APEM A01ES Series Twist Release Emergency Stop Push Button, Panel Mount, 16 mm Cutout, 2 NC, IP65 A01ES

APEM A01ES Series Twist Release Emergency Stop Push Button A01ES is a high-quality panel mount safety switch designed for rapid shutdown in industrial and automation applications. Operating with a 16 mm diameter cutout, this emergency stop push button features two normally closed contacts offering reliable interruption in urgent conditions.

The push button actuation uses a twist release mechanism, ensuring that the button securely latches when engaged and requires a twist to release. This enhances operational safety by preventing accidental resets.

Constructed from robust plastic materials, the operator case is made of polyetherimide, the actuator of durable polycarbonate, and the switch block of PBT plastic. The neoprene panel seal delivers an IP65 rating on the front panel and IP40 on the rear panel, protecting against dust and water ingress following EN60947-5-5 standards.

The push button supports contact AC voltage ratings of 250V AC with current capacities of 1.5A in AC-15 applications and 6A at 250VAC, making it suitable for various industrial electrical circuits. Electrical and mechanical lifespan is rated at 6,050 cycles, assuring a long service life under demanding conditions.

Its red actuator enhances visibility in control panels, improving safety during emergency shutdowns. This emergency stop switch is suitable for use in electrical, industrial automation, manufacturing, and safety equipment applications requiring reliable emergency control devices.

This emergency stop push button is actuated by twist release to ensure secure operation. Durable construction using polyetherimide, polycarbonate, and PBT plastic materials. Rated IP65 front panel sealing with neoprene panel seal for ingress protection.

Supports up to 250V AC contact voltage with 1.5A AC-15 and 6A current rating at 250VAC. Electrical and mechanical life rated at 6,050 cycles for extended durability. Red actuator for enhanced visibility during emergencies.

Suitable for panel mount with a 16 mm cutout diameter. Manufactured in the United Kingdom ensuring quality assurance.

This APEM Emergency Stop Push Button A01ES is a vital safety component across industrial, manufacturing, automation, and electrical control panel sectors. It provides a dependable emergency shutdown mechanism helping prevent equipment damage and personnel hazards.
