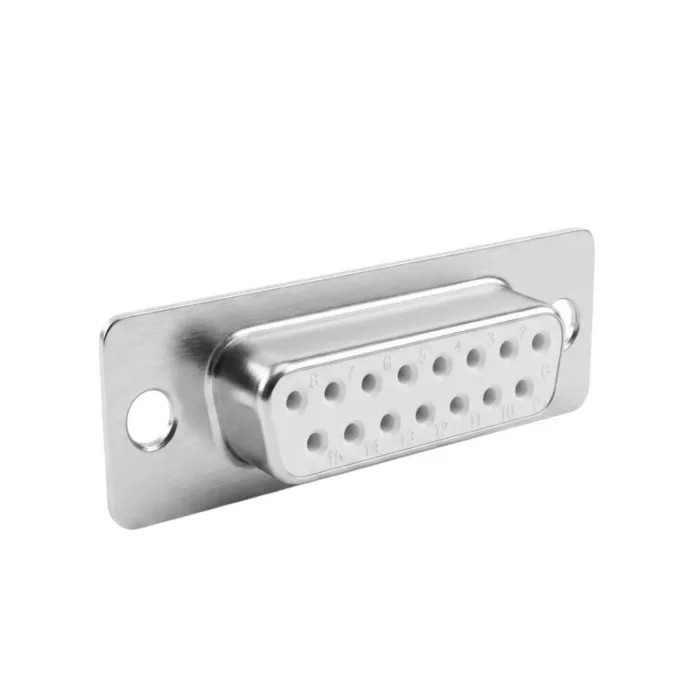

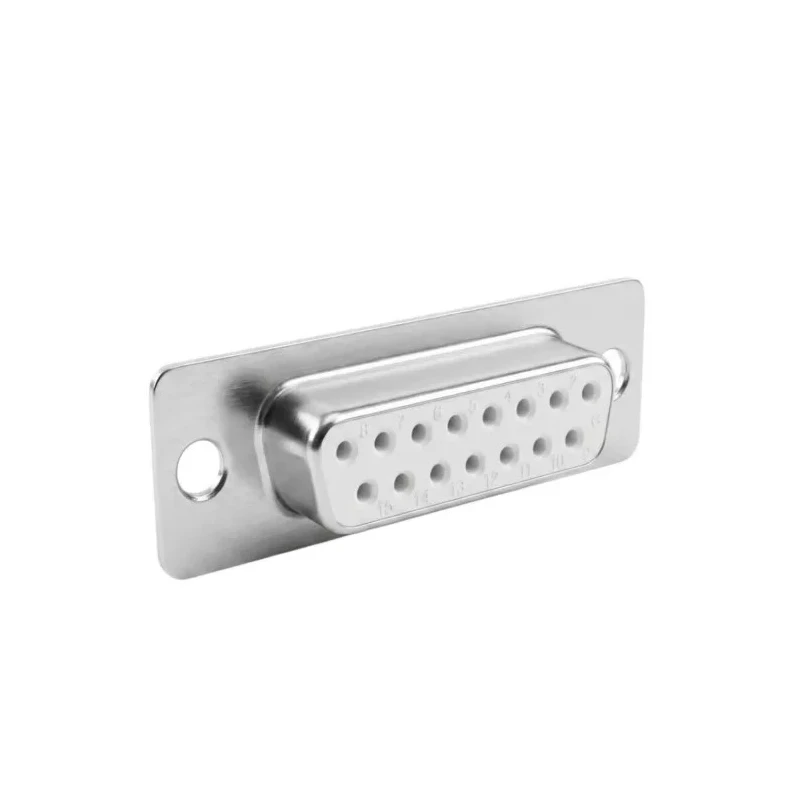

RS PRO 15 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with Screw Female 217-7797

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 15 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with Screw Female 217-7797

Name: RS PRO 15 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with Screw Female 217-7797
Brand: RS PRO
SKU: 170240



Category D-Sub Connector Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	1kV
Brand	RS PRO
Orientation	Straight
Operating Temperature	-50°∼+105°
Mounting	Panel mount
Current	5A
Model	217-7797
Gender	Male or Female
Mount Type	Panel Mount
Housing Material	Steel
Contact Material	Brass
Mounting Hardware	Screw
Termination Type	Solder
Maximum Operating Temperature	105°C
Insulation resistance	1000mΩ Min. at 500V DC
Minimum Operating Temperature	-50°C
Shell	SPCC Material, Nickel Plated Front, Tin Plated Rear
Pitch	2.77mm
Contact Resistance	20mΩ max
Standards Met	ROHS
Contact Plating	Gold Flash
Number of Contacts	15
Contact Gender	Female
Connector Gender	Female
Contact Size	1.09 mm
Connector Type D	D-Sub
D-Sub Shell Size	A
Withstanding Voltage	1000V (one minute)
Contact Finish	Gold Flash On Contact Area, Tin Plated On Solder Tail, under Plated Nickel
9 pin, RS Stock no	218-4249
15 pin, RS Stock no	217-7796
25 pin, RS Stock no	217-7798

Key Features

The connector features a robust steel housing with a durable nickel and tin plating for corrosion resistance.
It supports a current rating of 5A and working voltage up to 1kV ensuring performance under demanding conditions.
Gold flash plating on the brass contacts ensures excellent conductivity and corrosion resistance.
The panel mount design with screw fastening provides secure and easy installation.
Operating temperature range from -50°C to 105°C suits various environmental conditions.
The 15 contacts and 2.77 mm pitch ensure compatibility with standard D-Sub interfaces.
Solder termination enables strong electrical and mechanical connections.
The connector is widely used in computers, monitors, test and measurement equipment, as well as PCB applications.

Product Description

RS PRO 217-7797 15 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with Screw Female is a high-quality connector designed for precise and durable electrical connections. It is crafted from steel with nickel plating on the front and tin plating on the rear shell to provide excellent EMI/RFI protection and robust mechanical support.

This D-Sub Connector features 15 female contacts with a pitch of 2.77 mm, suitable for various industrial, laboratory, manufacturing, and electronic device applications. The brass contacts are gold flash plated to maintain signal integrity and resist corrosion over time.

Its panel mount type with screw hardware allows secure installation on equipment panels, ensuring stable connections even in environments subject to vibration and movement. The connector supports a current rating of 5A and withstands voltages up to 1kV, suitable for low to moderate power electrical signals.

The operating temperature range from -50°C to 105°C renders it adaptable to harsh environments found in construction, HVAC systems, and water treatment instrumentation.

Installation involves solder termination, which offers reliable electrical and mechanical contact strength. The robust and durable design makes it ideal for use in computers, monitors, RS232 serial interfaces, and other point-to-point communication devices.

Robust steel housing with nickel and tin plating for enhanced durability. Gold flash plated brass contacts optimize conductivity and corrosion resistance. Panel mount with screw fastening ensures secure and professional installation.

15 female contacts with 2.77 mm pitch for standard connectivity. Supports current rating of 5A and withstands operating voltage up to 1kV. Wide operating temperature range from -50°C to 105°C. Solder termination type for reliable connection integrity.

Ideal for industrial, laboratory, electronic, and manufacturing use cases.

RS PRO connectors offer a comprehensive solution for D-Sub connectivity needs. Browse the RS PRO category on EnvMart for related connectors and accessories to enhance your electronic assembly projects.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It supports a current rating of 5A, making it suitable for low to moderate power electrical signals.

The connector can withstand voltages up to 1kV, ensuring performance under demanding conditions.

This model features 15 female contacts with a pitch of 2.77 mm, ensuring compatibility with standard D-Sub interfaces.

It employs a solder termination type, which provides reliable electrical and mechanical connections.

The housing is made of steel with nickel plating on the front and tin plating on the rear, while the contacts are made of brass with gold flash plating.

It features a panel mount design with screw fastening, ensuring secure and easy installation on equipment panels.

The maximum contact resistance is 20mΩ, ensuring efficient signal transmission.

This model meets ROHS standards, ensuring compliance with environmental regulations.

The insulation resistance is a minimum of 1000mΩ at 500V DC, providing reliable electrical isolation.

It is classified as a D-Sub shell size A, which is standard for many applications.
