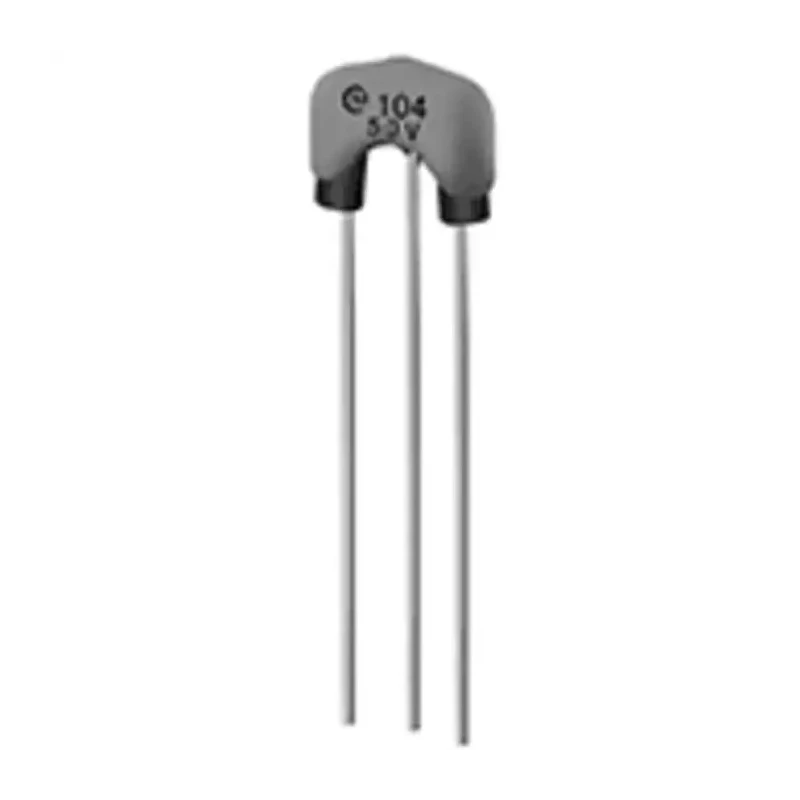

Murata EMI Filter DSS1 100V dc 6 A Through Hole Solder Terminal Q91A 8.5mm

The Murata DSS1NB32A101Q91A EMI Filter is a high-performance passive component designed for efficient noise suppression in electronic circuits operating up to 100V DC and drawing maximum currents of 6A. This through-hole mount filter features a Q91A package and solder termination with a compact length of 8.5mm, making it ideal for applications requiring high reliability in limited space.

Featuring a three-terminal capacitor structure with 100pF capacitance, it provides superior electromagnetic interference (EMI) filtering across a wide frequency range, suitable for diverse noise environments. The robust operating temperature span from -40°C to 85°C ensures stable performance in harsh industrial, laboratory, and commercial electronics settings.

This EMI filter is compliant with RoHS standards, underscoring its environmentally friendly manufacturing and safe usage. The part is manufactured in Japan, reflecting Murata’s commitment to quality and precision engineering.

Typical applications include integration into power and signal lines in industrial automation equipment, communication devices, and sensitive instrumentation to reduce EMI noise and enhance signal integrity. The filter’s through-hole design supports automated assembly processes, facilitating high-volume production.

Compact DSS1 series EMI filter with 100pF capacitance. Three-terminal structure for efficient high-frequency noise suppression. Q91A package compatible with automatic insertion machinery. Wide temperature operation from -40°C to +85°C.

Manufactured in Japan ensuring high quality standards. Explore more high-quality electronic components and EMI Filters at EnvMart for industrial, commercial, and laboratory applications.
