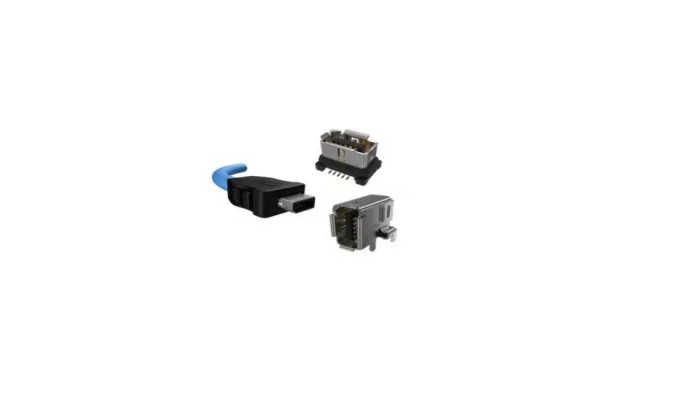

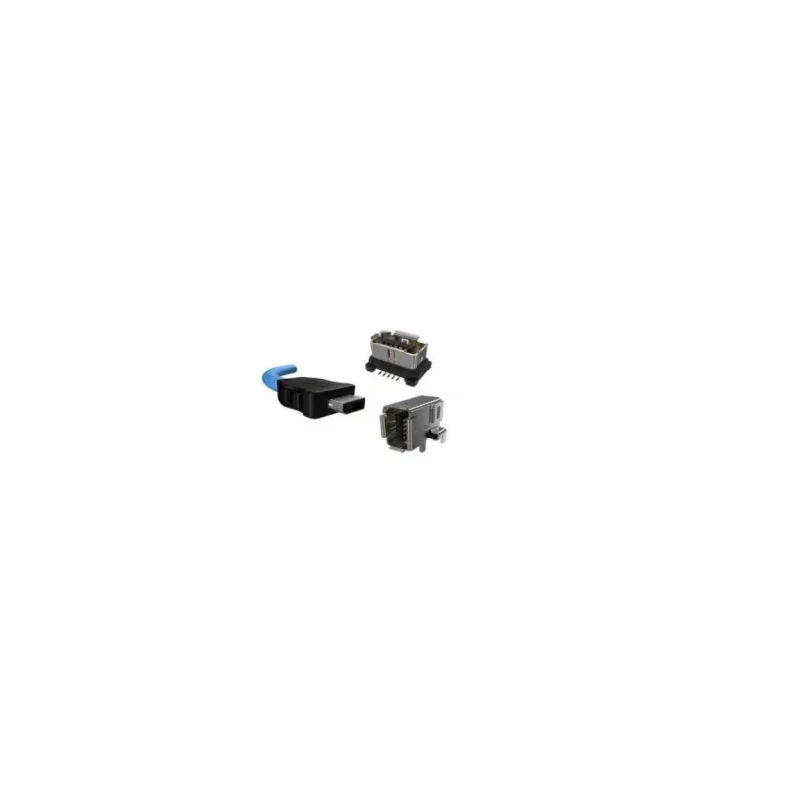

Amphenol Communications Solutions IX PCB Flag Mini I/O Connector Female Shielded ND9AS1200

Amphenol Communications Solutions ND9AS1200 is a PCB mount Mini I/O Connector Female with Flag orientation and Shielded design optimized for industrial and communication electronics use. It provides secure connections for ethernet and other high-speed industrial protocols, making it ideal for IoT connectivity within manufacturing and networking environments.

This connector features a thermoplastic housing with a black finish and copper alloy contacts plated with gold over nickel in the mating areas to ensure durability and excellent conductivity. Its shielded construction, including 360-degree coverage through the mated pair, offers superior EMI protection in electrically noisy environments.

The compact 10mm pitch flag orientation design enables 25% smaller port size compared to standard RJ45 connectors, which allows greater port density within constrained PCB real estate. Designed for surface mount termination, the connector supports a single port female receptacle configuration with reliable 2-point metal latch lock for mating security.

With an IP20 rating, the connector is suited for indoor applications in industrial, laboratory, manufacturing, commercial, and network telecommunications installations. It is RoHS compliant, ensuring reduction of hazardous substances.

Designed for PCB mounting with flag orientation to optimize space. Features a single port with female, receptacle connector type. Shielded design ensures excellent electromagnetic interference (EMI) protection. Terminated by surface mount technology for reliable installation.

Constructed from thermoplastic housing and copper alloy contacts for durability. Meets RoHS compliance ensuring environmentally responsible manufacturing. Rated IP20 for protected indoor environments. Connector size allows port density up to 25% smaller than RJ45 equivalents.

Supports high-speed data transmission suitable for Cat6A level, enabling 10GBASE-T applications. Contact surfaces are gold plated over nickel for corrosion resistance and reliable signal integrity.

This connector is essential for electronics, network infrastructure, telecommunications, industrial automation, and IoT device integration, providing a reliable, compact, and secure interface with excellent bandwidth capability. Explore more connectors and connectivity solutions in EnvMart’s Electronics & Electricals category for your industrial and commercial needs.
