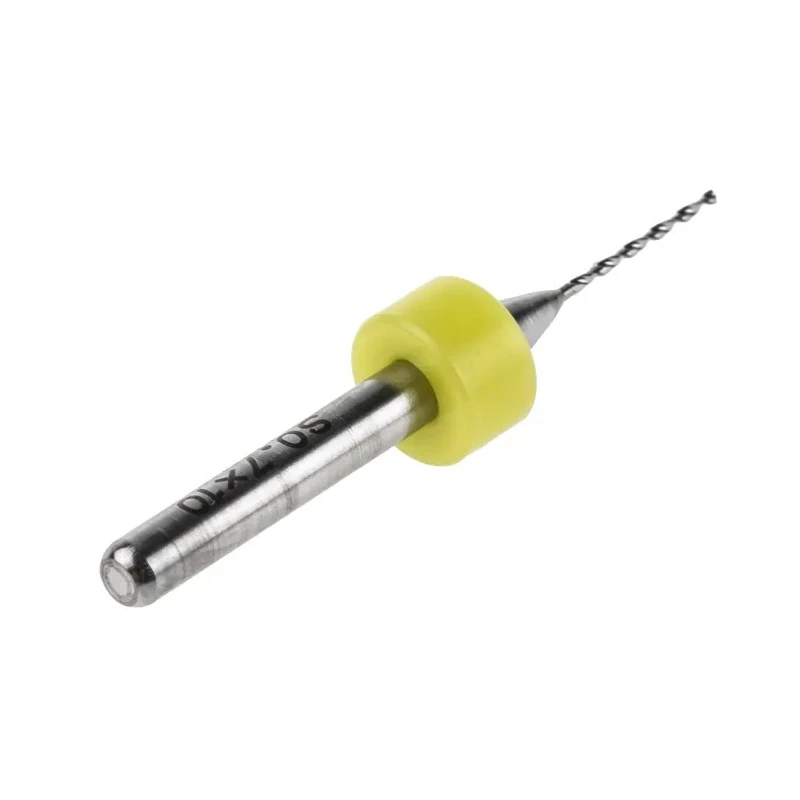

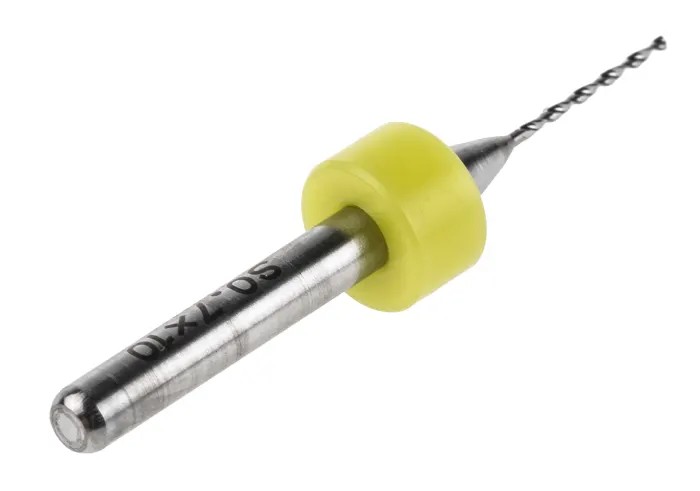

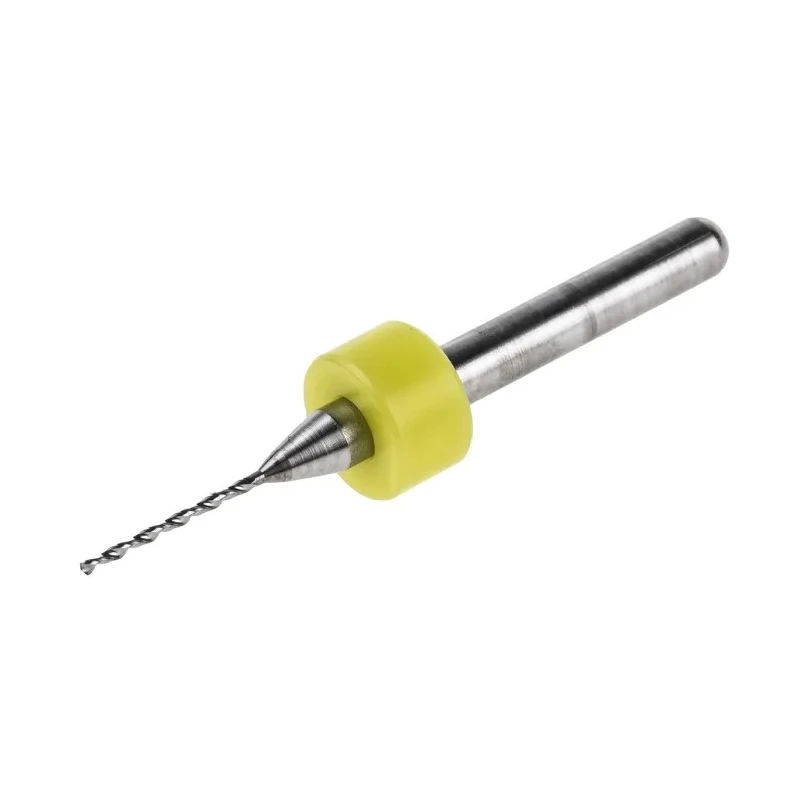

Fortex Tungsten Carbide PCB Drill Bit 1.7 mm Diameter, 3.175 mm Shank, Micro Carbide Drill CBD3818/170

The Fortex CBD3818/170 Tungsten Carbide PCB Drill Bit is a specialist micro carbide drill designed specifically for printed circuit board applications. Featuring a drill bit diameter of 1.7 mm and a shank diameter of 3.175 mm, this bit provides optimal precision for drilling tasks in electronics manufacturing and PCB assembly.

Constructed from solid tungsten carbide, this drill bit offers extended durability and maintains its sharpness much longer than traditional high-speed steel (HSS) drill bits. This characteristic ensures consistently clean and accurate holes, essential when working with multilayer PCB boards and standard single-layer PCBs alike.

The drill bit conforms to the DIN 338 industry standard, guaranteeing reliability and precision machining. With a total length of 38.1 mm and mono piece construction, the bit ensures stability and reduced risk of breakage during use.

This micro drill bit is particularly suited for drilling small through holes, blind vias, and via interconnectors, allowing manufacturers to achieve higher registration accuracy and improved inner hole wall quality. This functionality makes it ideal for high density multilayer circuit board production, enhancing product quality and reducing defects in PCB manufacturing processes.

Manufactured in China, the Fortex CBD3818/170 maintains rigorous quality standards and compatibility with standard PCB drilling machines featuring a 3.175 mm shank diameter. Solid tungsten carbide for long-lasting sharpness.

Compliant with DIN 338 standard for precision. Suitable for multilayer and standard PCBs. Mono piece construction for durability. Ideal for small through holes and blind vias. Improves inner hole wall quality and registration accuracy.

Compatible with 3.175 mm shank drill machines. Perfect for high density PCB manufacturing.

This Fortex PCB drill bit is an essential tool for electronic component manufacturers, PCB prototyping labs, and assembly houses requiring precise and reliable drilling capabilities. Explore the comprehensive range of PCB Drill Bits and other electronic components available at EnvMart for industrial and laboratory applications.
