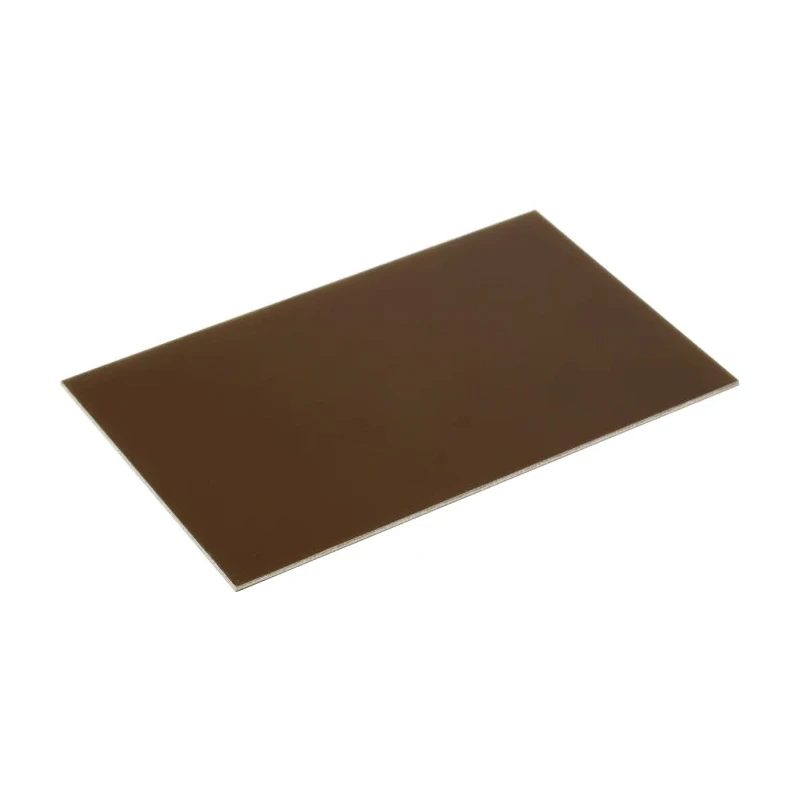

Fortex 1 Copper Clad Board Epoxy Glass Fabric Laminate 35 μm Copper Thickness 100 mm 03-5108-1

Fortex 03-5108-1 1 Copper Clad Board Epoxy Glass Fabric Laminate features a 35 μm thick single copper layer with a 100 mm board length. This high-quality board is manufactured using FR4 epoxy glass fabric laminate known for its flame retardant characteristics and durability.

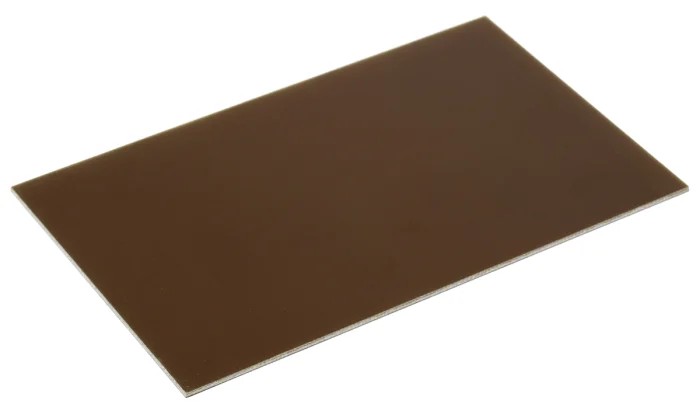

The board is coated with a high-resolution positive photoresist containing a dye that provides excellent contrast against the copper. This facilitates easy visual inspection during the board developing process to ensure precision and quality.

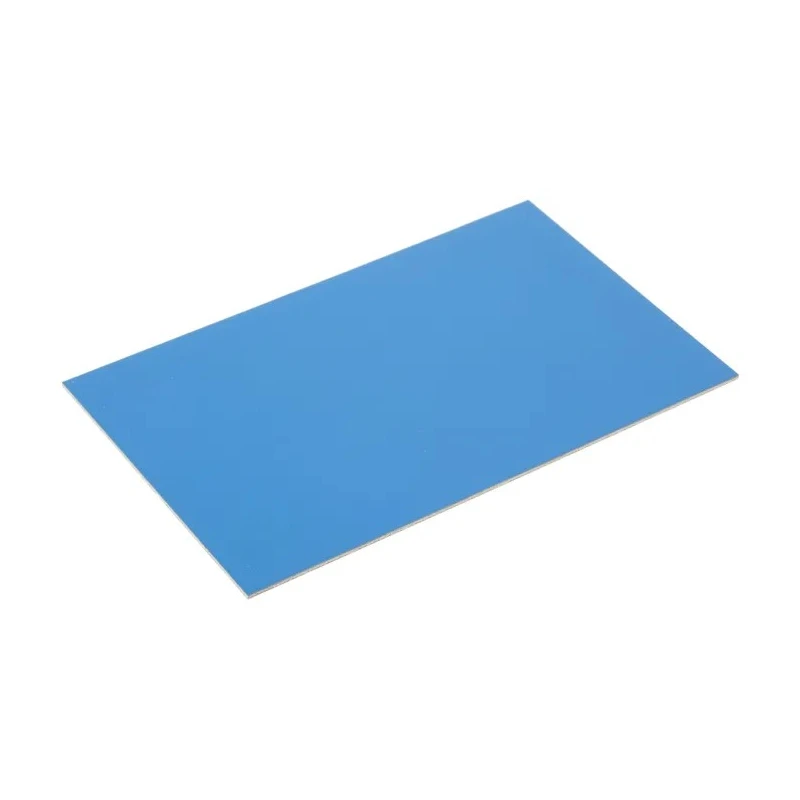

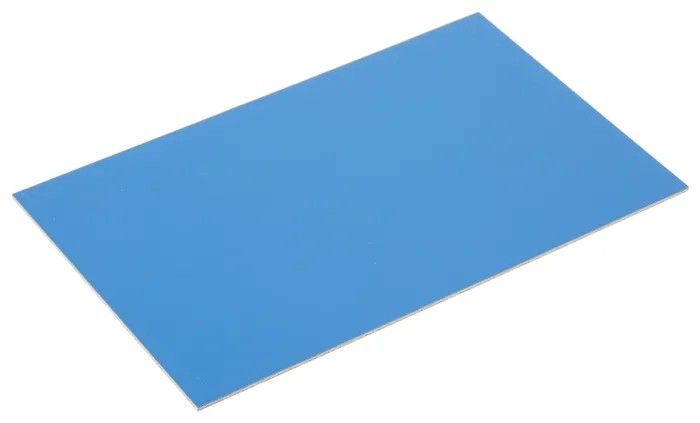

To protect the photoresist during processing, the panels are covered with a specially designed light-proof blue film. This film allows the panels to be guillotined without risking fractures or damage to the photoresist layer, thus preserving the integrity of the board throughout manufacturing.

With a thickness of 160 mm, the board delivers mechanical strength suitable for various industrial and commercial printed circuit board prototyping requirements.

Fortex copper clad boards conform to RoHS standards, ensuring compliance with important environmental regulations, making them ideal for safe electrical and electronic equipment manufacturing.

This epoxy glass laminate board is an excellent choice for applications in electronics manufacturing, laboratory prototyping, and product development where reliable insulation and conductivity are critical.

Constructed from high-quality epoxy glass fabric laminate material. Single-sided board with 35 μm copper layer for reliable conductivity. FR4 material grade ensures excellent flame retardant properties. Board thickness measures 160 mm providing sturdy mechanical strength.

Compliant with RoHS standards ensuring environmental safety. Photoresist coating enhances contrast for easy inspection during development stages. Protected by a light-proof blue film to prevent photoresist damage while cutting.

Suitable for electronic prototyping, PCB fabrication, and industrial applications. Dimensions optimized for efficient circuit board production. Explore more Copper Clad Boards and related electronic components on EnvMart for your industrial and laboratory needs.
