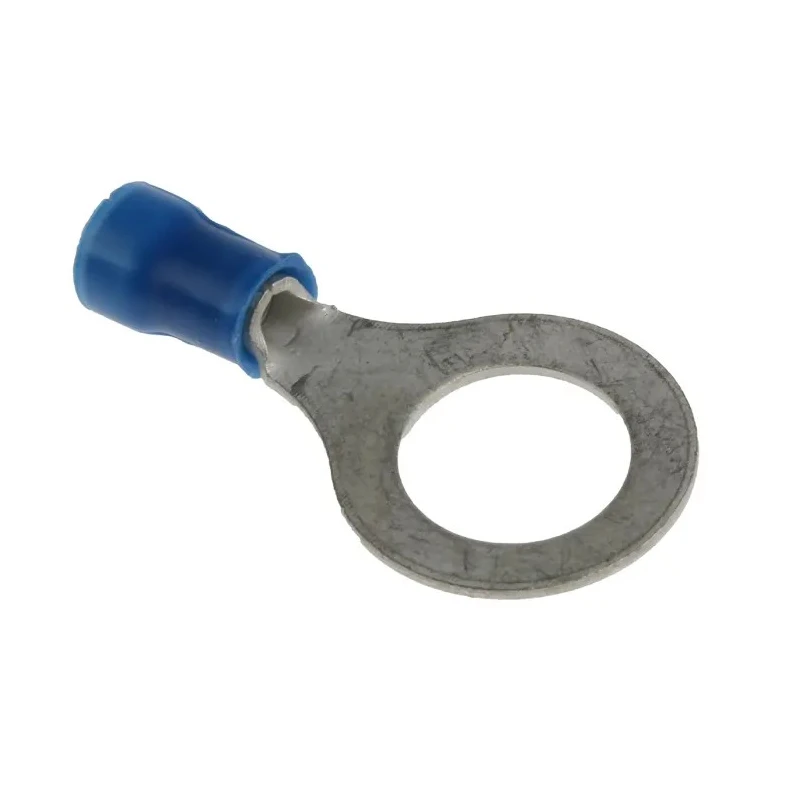

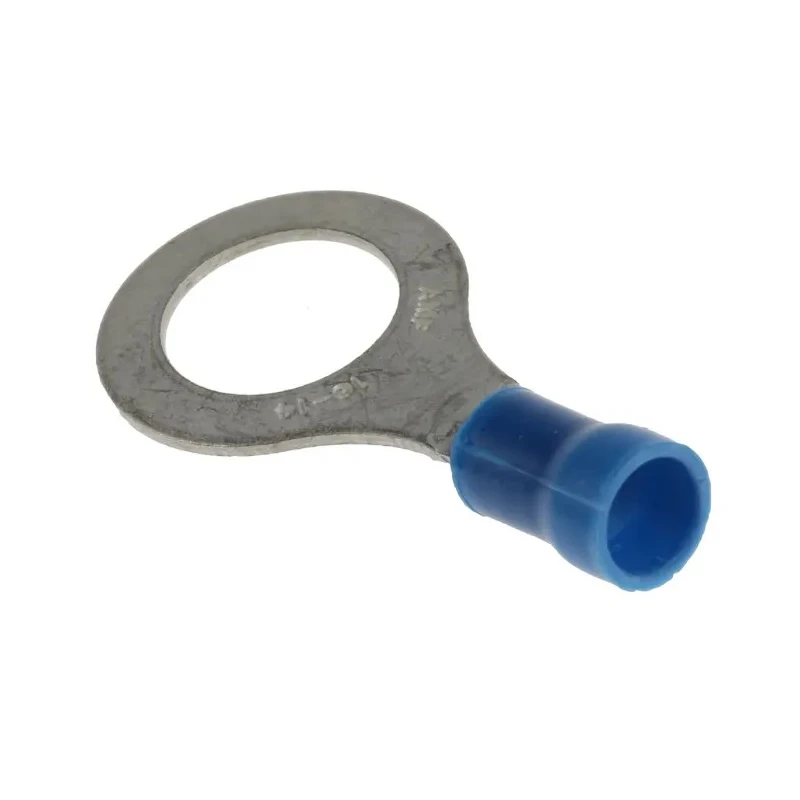

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M10 Stud Size 16 AWG 14 AWG Wire Size Blue 160136
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Model | 160136 |
| Insulation | Insulated |
| Overall Length | 32.2mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Polyvinyl Chloride |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 16.7mm |
| Inner Ring Diameter | 10.5mm |
| Stud Size | M10 |
Key Features
- Constructed with high conductivity copper and tin plating for optimal electrical contact.
- Features 94V-0 rated vinyl insulation for excellent dielectric strength.
- Closed barrel design with serrated inner barrel enhances tensile strength after crimping.
- Funnel entry in wire barrel enables easy wire insertion and improved crimp quality.
- Outer ring diameter 16.7 mm and inner ring diameter 10.5 mm ensure proper stud fit.
- Overall length is 32.2 mm for compact and reliable connections.
- Rated for a maximum operating temperature of 105°C.
- Suitable wire size range from 1 mm² (16 AWG) to 2.6 mm² (14 AWG).
Product Description
TE Connectivity model 160136 PLASTI-GRIP insulated ring terminal is engineered for reliable electrical connections in electronic and power applications. This ring terminal accommodates M10 stud sizes and supports wire gauges from 16 AWG to 14 AWG, with a maximum operating temperature up to 105°C. The terminal body is constructed of high conductivity copper with tin plating to provide excellent electrical conductivity and corrosion resistance.
The blue vinyl insulation sleeve is rated 94V-0 for high dielectric strength, ensuring safety and durability under demanding conditions. With an outer ring diameter of 16.7 mm and an inner ring diameter of 10.5 mm, the terminal fits securely onto the specified stud size. Its overall length of 32.2 mm offers a compact form factor for versatile installation possibilities.
The closed barrel style features a serrated inner barrel which maximizes electrical contact and mechanical retention after crimping. The funnel entry on the wire barrel simplifies wire insertion and supports consistent, secure crimps. This product is ideal for industrial, electronic manufacturing, HVAC, automotive, and laboratory electrical wiring applications requiring high performance and long-term reliability.
High conductivity copper construction with tin plating for corrosion resistance. 94V-0 rated vinyl insulation provides excellent dielectric strength. Serrated inner barrel design improves tensile and electrical contact. Funnel wire entry facilitates ease of use and crimp consistency.
Blue color coding for 16 AWG to 14 AWG wire sizes identification. Compact overall length of 32.2 mm for flexible installations. Rated for maximum operating temperature of 105°C. Suitable for M10 stud and wire sizes 1 mm² to 2.6 mm².
This TE Connectivity PLASTI-GRIP insulated Ring Terminal delivers superior conductivity, mechanical strength, and temperature resistance for demanding industrial and electronic wiring tasks. Browse our Electrical Connectors category for more precision components from leading brands like TE Connectivity on EnvMart.
