Hanna HI1000 Series Process Digital pH Probe-15m (49.2')-HT - High Temperature-PTFE

The HI1006-3815 is a digital process pH probe engineered for demanding industrial applications. With a chemically resistant PVDF body and PTFE reference junction, this probe is suitable for high temperature and aggressive chemical environments. The probe includes a built-in Pt100 temperature sensor for precise temperature compensation in pH readings.

• Measurement range: LT glass 0 to 12 pH, HT glass 0 to 14 pH, HF glass 0 to 10 pH.
• Operating temperature: LT glass -5 to 80°C, HT glass 0 to 100°C, HF glass F- less than 2 g/L, temperature 2.
• Digital RS485 output signal is immune to electrical interference common in process environments.
• Direct wire connection and 15 m (49.2 ft) cable for flexible installation in tanks, reactors, or pipelines.
• Suitable for both in-line mounting (¾” NPT threads) or submersion mounting with optional holder.

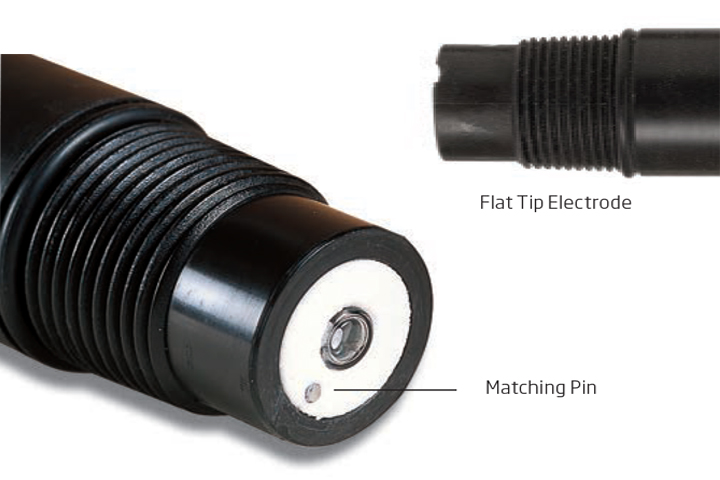

• Flat tip glass with double junction and polymer electrolyte for stability and long life.
• Outer diameter: 22.5 mm; Overall body length: 140 mm.
• Max. process pressure: 6 bar (87 psi).
• Designed for use with HI510 Universal Process Controller and other compatible process analyzers.

This robust pH electrode is ideal for continuous monitoring in industrial process control, chemical manufacturing, water treatment, and laboratory automation. Compatible with harsh chemical environments and suited for HT/ LT/ HF formulations, the probe ensures reliable measurements and ease of maintenance.
