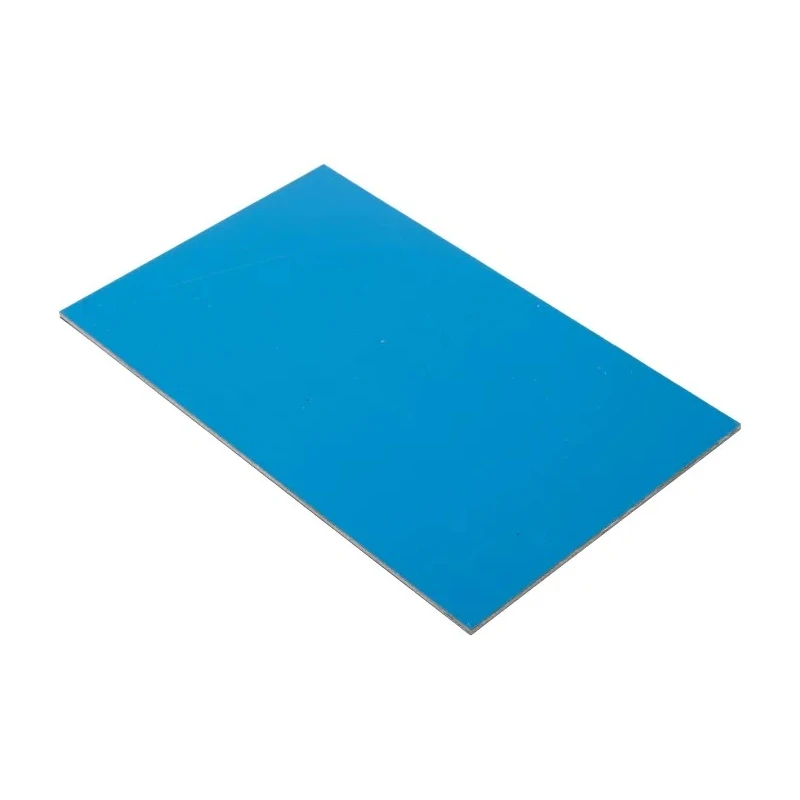

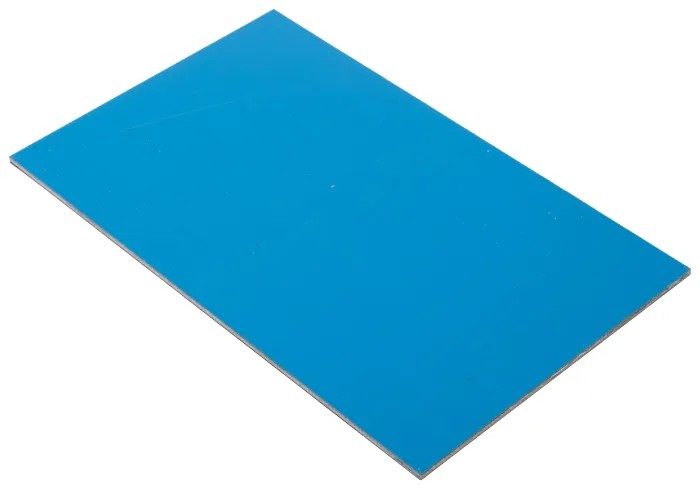

Fortex Copper Clad Board Epoxy Glass Fabric Laminate 2 Sides 35 μm Copper Thickness 160 mm Board Thickness 100 mm 03-5128-1

Fortex 03-5128-1 Copper Clad Board is manufactured using FR4 epoxy glass fabric laminate material, optimizing it for electrical and prototyping applications. This product features double-sided copper cladding with a copper thickness of 35 μm, providing effective conductivity necessary for PCB development.

The board thickness is 160 mm, and the length measures 100 mm, making it suitable for various prototyping and electronic applications requiring reliable substrate material. The construction material conforms to RoHS standards, ensuring compliance with environmental regulations and promoting safe handling.

The microtrak FR4 laminate is dip coated with a high resolution positive working photoresist, which contains a dye providing excellent contrast against the copper layer. This feature facilitates easy inspection during the photoresist development process to guarantee quality control.

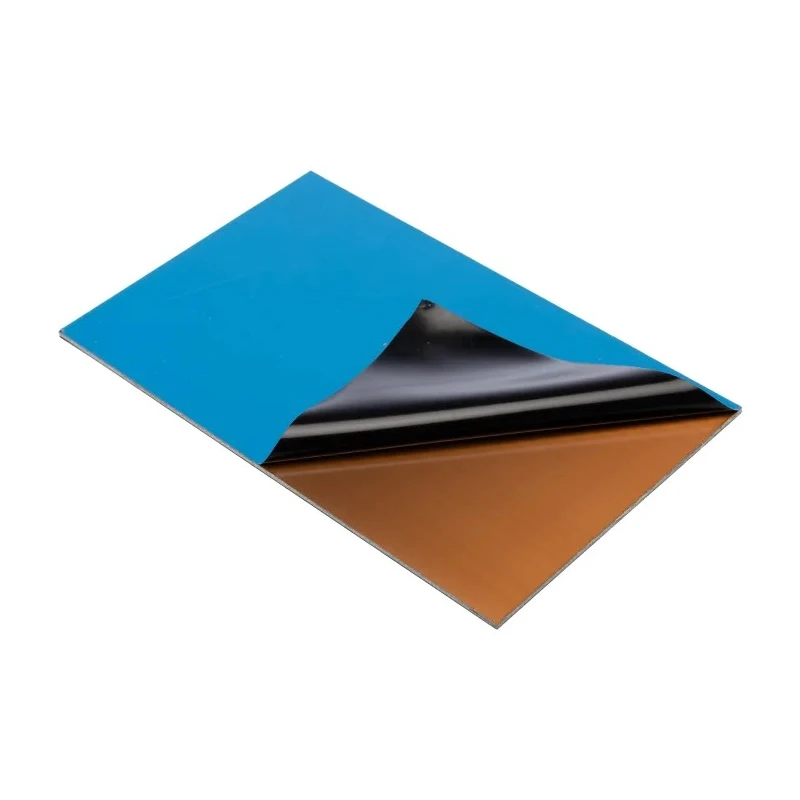

Additionally, the panels are shielded by a specially designed light-proof blue film. This protective film enables precise cutting by guillotining without risk of fracturing the photoresist, enhancing durability and usability during manufacturing.

Constructed from FR4 epoxy glass fabric laminate ensuring high mechanical strength. Double-sided copper cladding with 35 μm thickness for superior electrical performance. Board thickness of 160 mm and length of 100 mm for versatile prototyping use.

RoHS compliant, adhering to environmental safety standards. Positive working photoresist with dye for enhanced copper contrast during processing. Light-proof blue protective film allows for safe guillotining without photoresist damage.

Ideal for electronic prototyping, PCB fabrication, and related manufacturing applications.

This copper clad board is widely used in industrial, laboratory, and electronics manufacturing sectors for PCB prototyping and production. For additional options and detailed specifications, explore the copper clad board category on EnvMart.
