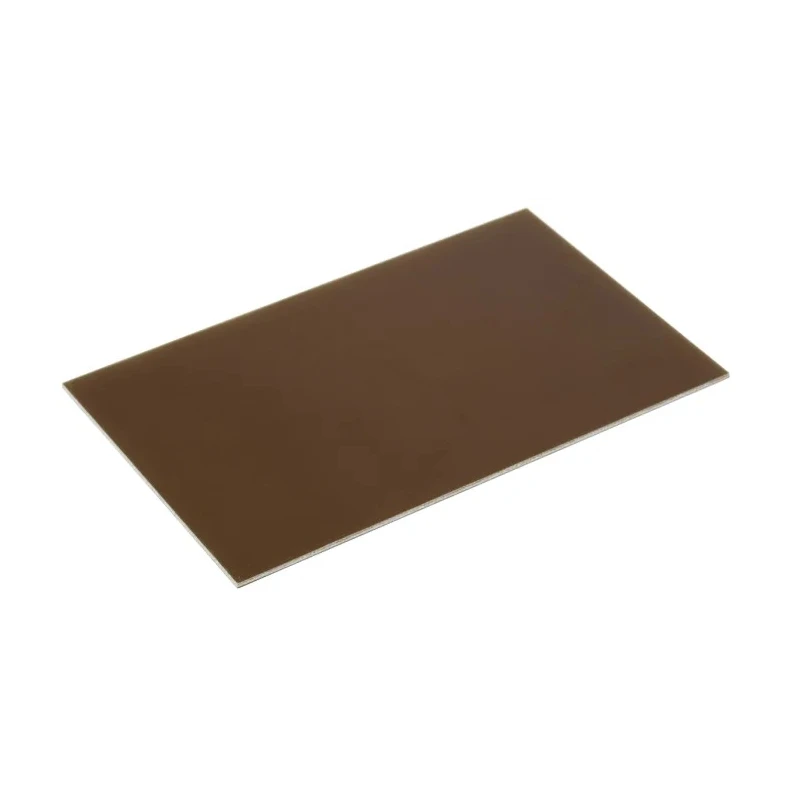

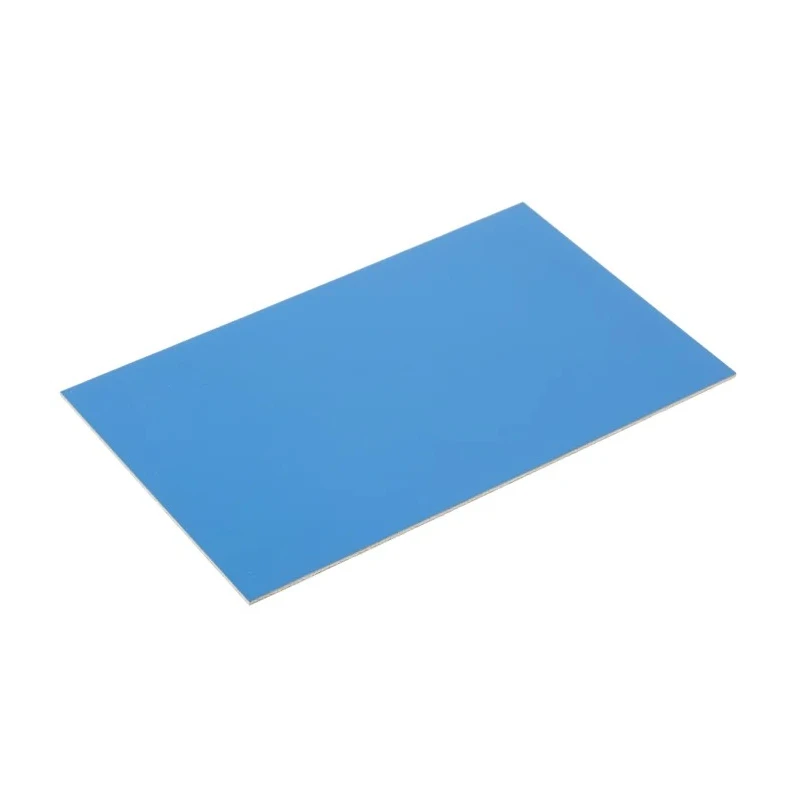

Fortex Copper Clad Board Epoxy Glass Fabric Laminate With 35 μm Copper Thickness, 160 mm Thickness, 233.4 mm Length 03-5144-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Fortex |
| Length | 233.4mm |
| Board Material | Epoxy Glass Fabric Laminate |
| Standards/Approvals | RoHS |
| Number of Sides | 1 |
| Board Thickness | 160mm |
| FR Material Grade | FR4 |
| Copper Thickness | 35μm |
Key Features
- The board features a single-sided copper layer ideal for electronic prototyping and PCB design.
- Constructed with FR4 grade epoxy glass fabric providing stability and durability.
- Boards are dip coated with a high-resolution positive working photoresist for precise pattern development.

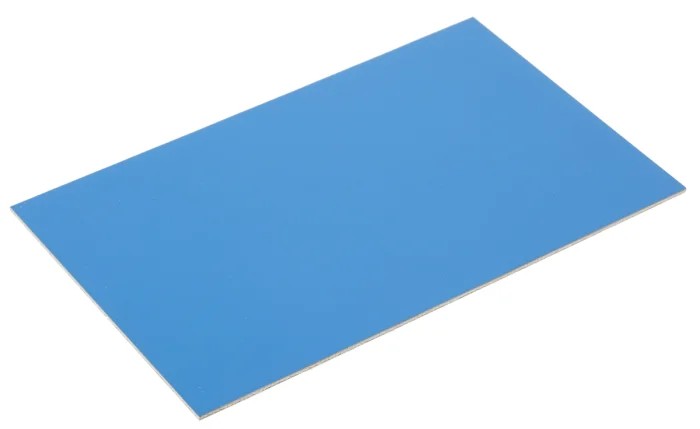

- Equipped with a specially designed light-proof blue film to protect the photoresist during handling and cutting.
- Measuring 233.4 mm in length, suitable for various electronic component mounting needs.
Product Description
Fortex 03-5144-1 copper clad board is a single-sided prototyping board constructed from FR4-grade epoxy glass fabric laminate, delivering excellent mechanical strength and electrical insulation for electronic applications.
The board has a copper thickness of 35 μm, ensuring effective conductivity for signal paths while minimizing material usage. Its 160 mm thickness and 233.4 mm length dimensions cater to standard prototyping and PCB fabrication requirements.
The surface is dip coated with a high-resolution positive working photoresist that includes a dye to offer good contrast against the copper, facilitating easy inspection during the development stages.
Panels are protected by an innovative light-proof blue film, allowing safe guillotining without damaging the photoresist layer. The single-sided copper design is optimal for creating electronic circuits and test boards. FR4 epoxy glass fabric material provides flame retardant properties and long-lasting performance.
Applications include laboratory prototyping, electronics manufacturing, educational projects, and repair of PCBs. The product complies with RoHS standards, ensuring environmentally safe usage in industrial and commercial electronics.
Suitable for industrial, laboratory, manufacturing, and electronic component assembly uses. This Copper Clad Board by Fortex is a reliable choice for electronics engineers and technicians requiring quality prototyping materials.
Browse the Electronics Components section at EnvMart for more copper clad and prototyping board solutions.
Explore more products in our Copper Clad Boards category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The board measures 233.4 mm in length, making it suitable for various electronic component mounting needs.
The board has a thickness of 160 mm, which is typical for standard prototyping and PCB fabrication requirements.
It features a copper thickness of 35 μm, ensuring effective conductivity for signal paths.
This model is constructed from FR4-grade epoxy glass fabric laminate, providing excellent mechanical strength and electrical insulation.
The board is single-sided, which is optimal for creating electronic circuits and test boards.
It complies with RoHS standards, ensuring environmentally safe usage in industrial and commercial electronics.
Applications include laboratory prototyping, electronics manufacturing, educational projects, and repair of PCBs.
The board is protected by a light-proof blue film, allowing safe handling and cutting without damaging the photoresist layer.
The surface is dip coated with a high-resolution positive working photoresist, facilitating easy inspection during the development stages.
The board is manufactured in India, ensuring local production standards.
FR4 material provides flame retardant properties and long-lasting performance for electronic applications.
Yes, it is suitable for educational projects, as well as for laboratory prototyping and electronics manufacturing.
