Littelfuse Thyristor 600 V 20 A 6 mA 300 A TO-220L Package SV6020L1QTP

Free Delivery in India | Lowest Global Shipping Charges

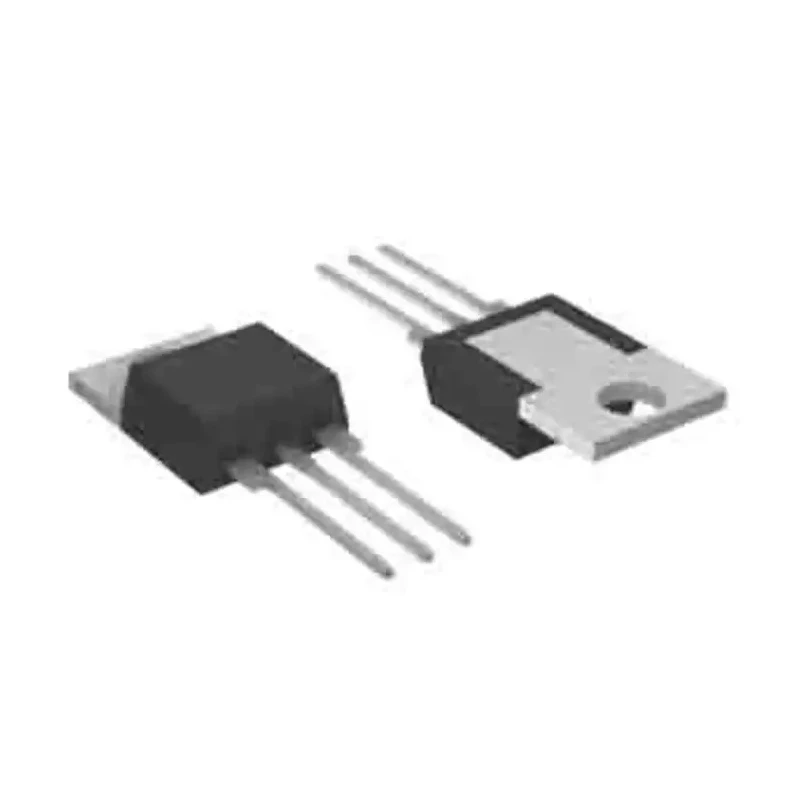

Littelfuse Thyristor 600 V 20 A 6 mA 300 A TO-220L Package SV6020L1QTP

Name: Littelfuse Thyristor 600 V 20 A 6 mA 300 A TO-220L Package SV6020L1QTP
Brand: LITTELFUSE
SKU: 169033
Price: 3.45 USD
Availability: InStock



Category Thyristors Brand LITTELFUSE Condition New

Specifications

Country of Origin	India
Brand	Littelfuse
Model	SV6020L1QTP
Mount Type	Through Hole
Series	SVxx20xxQ
Maximum Operating Temperature	150°C
Package Type	TO-220L
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	3
Rated Average On-State Current Irms	20A
Thyristor Type	SCR
Repetitive Peak Reverse Voltage VDRM	600V
Surge Current Rating	300A
Maximum Gate Trigger Current Igt	6mA
Maximum Holding Current Ih	25mA
Maximum Gate Trigger Voltage Vgt	1.5V

Key Features

Features a TO-220L package suitable for through-hole mounting.
Surge current rating of 300 A provides robustness against transient currents.
Maximum gate trigger current is 6 mA for precise control.
Supports a maximum gate trigger voltage of 1.5 V and maximum holding current of 25 mA.
Operates reliably within temperature range of -40°C to 150°C.
Complies with RoHS standards ensuring environmental safety.
Three-pin configuration designed for ease of installation and integration.
Series SVxx20xxQ known for durability and efficiency in power electronics applications.

Product Description

The Littelfuse SV6020L1QTP is a Silicon Controlled Rectifier (SCR) thyristor that offers a rated average on-state current of 20 A and repetitive peak reverse voltage of 600 V. It comes in a TO-220L package, designed for through-hole mounting, which ensures mechanical stability and ease of integration into power electronic circuits.

With a surge current rating of 300 A, this device can withstand short transient overloads, enhancing its robustness in demanding environments. The maximum gate trigger current of 6 mA and a low maximum gate trigger voltage of 1.5 V allow for sensitive and efficient triggering.

The device supports a maximum holding current of 25 mA and operates reliably across a temperature range from -40°C to 150°C, making it suitable for both industrial and automotive applications. It meets RoHS standards, ensuring compliance with environmental regulations and safety.

The SV6020L1QTP SCR is part of the SVxx20xxQ series, recognized for high temperature tolerance and reliable operation in power control and semiconductor switching tasks. Features a TO-220L package suitable for through-hole mounting.

Surge current rating of 300 A provides robustness against transient currents. Maximum gate trigger current of 6 mA for precise control. Maximum gate trigger voltage of 1.5 V and maximum holding current of 25 mA. Operating temperature range from -40°C to 150°C.

Compliant with RoHS environmental standards. Three-pin configuration for easy integration. Series SVxx20xxQ known for durability and efficiency. Suitable for industrial, automotive, and electronic power control applications.

Explore the Semiconductor and Thyristor categories at EnvMart for matching industrial components and power electronics solutions suitable for a variety of sectors including manufacturing, automotive electronics, and industrial control systems.
