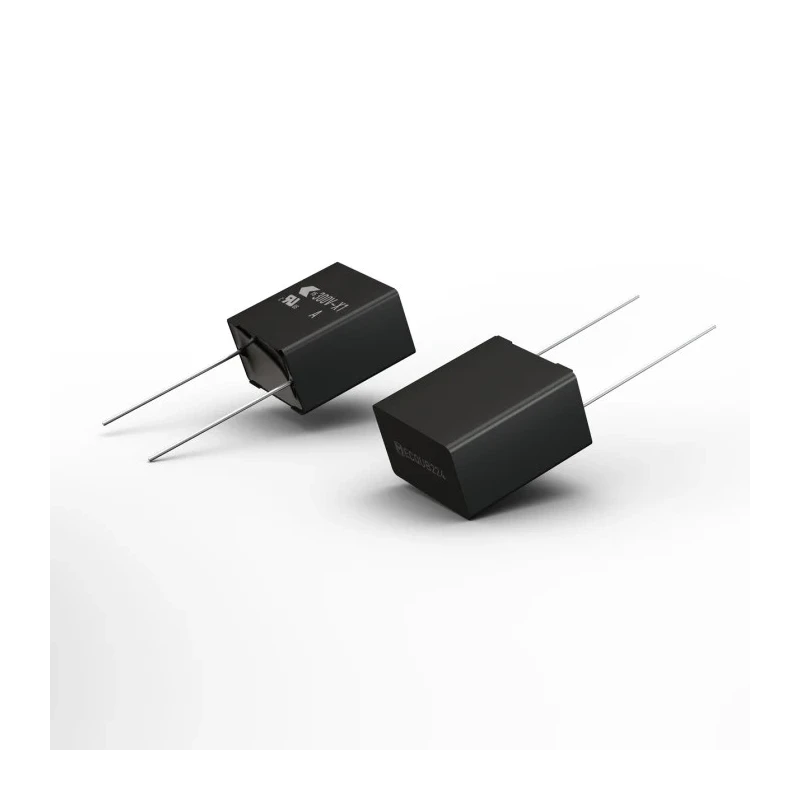

Panasonic ECQUB Polypropylene Capacitor ±20 % 33 nF 300V AC Through Hole ECQUBAF333V2

Free Delivery in India | Lowest Global Shipping Charges

Panasonic ECQUB Polypropylene Capacitor ±20 % 33 nF 300V AC Through Hole ECQUBAF333V2

Name: Panasonic ECQUB Polypropylene Capacitor ±20 % 33 nF 300V AC Through Hole ECQUBAF333V2
Brand: Panasonic
SKU: 168176
Price: 0.5 USD
Availability: InStock



Category Film Capacitors Brand Panasonic Condition New

Specifications

Country of Origin	China
Brand	Panasonic
Height	10.5mm
Length	18.5mm
Model	ECQUBAF333V2
Width	6mm
Mount Type	Through Hole
Series	ECQUB
Maximum Operating Temperature	110°C
Tolerance	±20 %
Capacitance	33nF
Minimum Operating Temperature	-40°C
Terminal type	Crimped Lead
Dissipation Factor	0.1%
Lead Length	20mm
Package/Case	Plastic
Pin Count	2
Rated AC Voltage	300V ac
Lead Pitch	15mm
Lead Diameter	0.6mm
Automotive Standard	AEC-Q200

Key Features

The capacitor offers a tolerance of ±20% ensuring reliable performance.
Constructed with metallized polypropylene film for stable electrical characteristics.
Features a crimped lead terminal type with a 15 mm lead pitch and 20 mm lead length.
Rated for operation between -40°C and 110°C suitable for various electronic applications.
Complies with automotive standard AEC-Q200 and international standards EN 60384-14, UL 60384-14, CSA E60384-14.
Encased in a flame-retardant plastic case with non-combustible resin for safety.
Low dissipation factor of 0.1% ensures minimal energy loss during operation.
Pin count of 2 supports common circuit configurations.

Product Description

Panasonic ECQUBAF333V2 is a high-quality polypropylene film capacitor designed for interference suppression in electronic equipment. It delivers a capacitance of 33 nF with a tolerance of ±20% and is rated for 300 V AC operation. The through hole mount design includes crimped lead terminals with a 15 mm pitch and 20 mm length, enabling easy PCB integration.

This capacitor operates reliably across a wide temperature range from -40°C to 110°C, making it suitable for automotive and industrial electronics. It meets stringent automotive standard AEC-Q200 and international safety standards EN 60384-14, UL 60384-14, and CSA E60384-14 to ensure robust performance and safety compliance.

The metallized polypropylene film construction gives the capacitor excellent electrical stability, combined with a flame-retardant plastic case and non-combustible resin for enhanced fire safety. Its low dissipation factor of 0.1% minimizes power loss, increasing energy efficiency in circuits.

With a compact form factor of 18.5 mm length, 10.5 mm height, and 6 mm width, and a pin count of 2, this capacitor is ideal for interference suppression in various electronic and automotive equipment applications.

Manufactured in China, this Panasonic ECQUB series capacitor ensures high reliability under demanding environmental conditions. The capacitor offers a tolerance of ±20% ensuring reliable performance. Constructed with metallized polypropylene film for stable electrical characteristics.

Features a crimped lead terminal type with a 15 mm lead pitch and 20 mm lead length. Rated for operation between -40°C and 110°C suitable for various electronic applications. Complies with automotive standard AEC-Q200 and international standards EN 60384-14, UL 60384-14, CSA E60384-14.

Encased in a flame-retardant plastic case with non-combustible resin for safety. Low dissipation factor of 0.1% ensures minimal energy loss during operation. Pin count of 2 supports common circuit configurations. Manufactured in China with dimensions of 18.5 mm length, 10.5 mm height, and 6 mm width.
