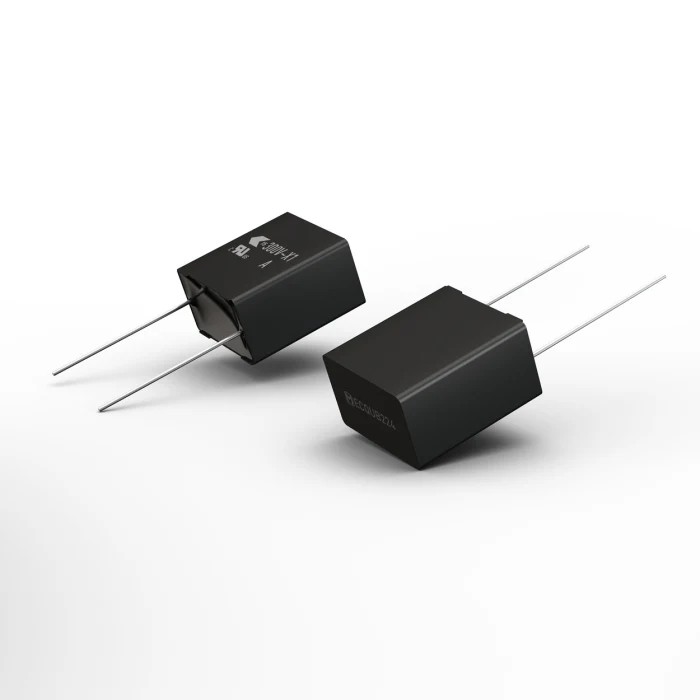

Panasonic Polypropylene Capacitor , ±20 % Tolerance, 2.7 nF Capacitance, 300V AC Rated Voltage, Through Hole ECQUBAF272M

Panasonic ECQUBAF272M is a high-quality polypropylene film capacitor designed for interference suppression in electronic equipment. This capacitor features a capacitance of 2.7 nF with ±20 % tolerance, supporting a rated AC voltage of 300V. It is constructed using metallized polypropylene film which provides non-inductive characteristics, enhancing electrical performance by reducing signal noise and distortion.

The capacitor is housed in a flame-retardant plastic case with non-combustible resin, ensuring high safety under operating conditions. It meets the automotive standard AEC-Q200, indicating its reliability for automotive and industrial applications.

Its through hole mounting with straight terminals and a lead pitch of 12.5 mm ensures compatibility with standard PCB layouts. The leads have a length of 20 mm and diameter of 0.6 mm for secure soldering. The product operates effectively within a temperature range of -40°C to 110°C, making it suitable for use in environments with wide temperature variations.

The compact physical dimensions include a length of 15.3 mm, height of 11.5 mm, and width of 5 mm. Its dissipation factor of 0.1% signifies low internal energy loss, aiding energy efficiency. It also complies with safety standards UL 60384-14, EN 60384-14, and CSA E60384-14, qualifying it for diverse global applications.

This capacitor is ideal for industrial, automotive, HVAC, telecommunications, and consumer electronic manufacturing industries requiring high voltage interference suppression components that combine safety, durability, and precise capacitance values.

Rated AC voltage of 300V for stable operation under electrical stress. Through hole mount type with straight terminals for easy PCB installation. Lead pitch of 12.5mm and lead length of 20mm for standard mounting configuration.

Operating temperature range from -40°C up to 110°C to withstand harsh conditions. Constructed with flame-retardant plastic case and non-combustible resin for enhanced safety. Complies with automotive standard AEC-Q200 ensuring durability and quality.

Non-inductive metallized polypropylene film design reduces signal distortion. Dissipation factor of 0.1% ensuring minimal energy loss in operation. Dimensions: 15.3mm length, 11.5mm height, and 5mm width suitable for compact applications.
