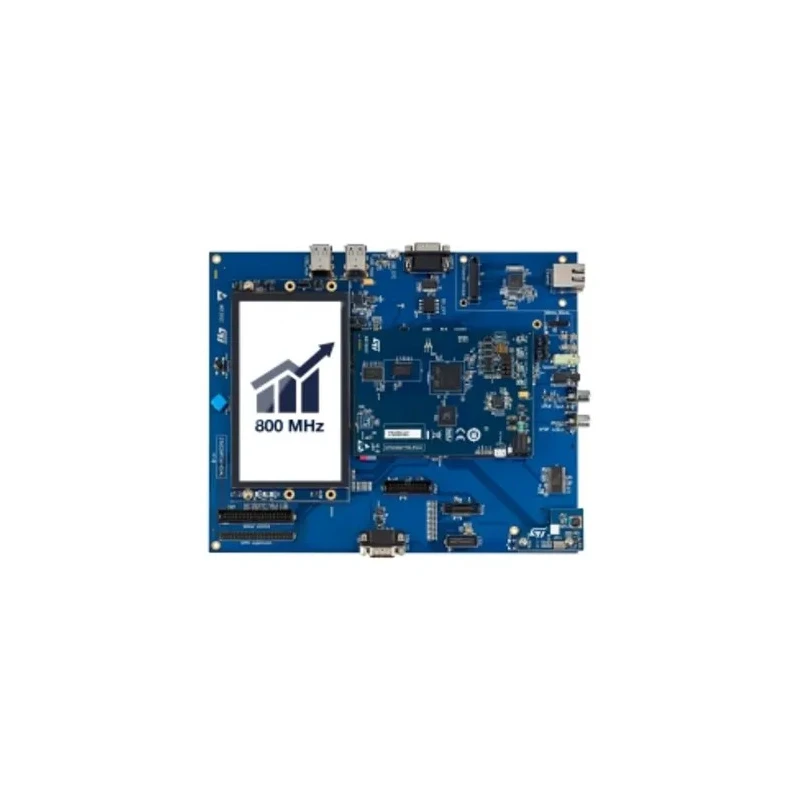

STMicroelectronics Evaluation Board with STM32MP157D 800 MHz Dual Cortex-A7 and Cortex-M4 MPU STM32MP157D-EV1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STM32MP157D-EV1 |
| Technology | 32 bit |
| Interfaces | Ethernet (RGMII) compliant with IEEE-802 |
| Standards/Approvals | IEEE-802.3ab (1-Gbit/s Ethernet (RGMII) |
| Device Core | ARM-based dual Cortex-A7 800 MHz 32 bits + Cortex-M4 32 bits |
| Kit Classification | Development Board |
| Kit Name | Evaluation board with STM32MP157D MPU |
| Processor Type | Cortex M4, ARM Cortex-A |
| Processor Family Name | STM32MP157 |
| On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability | Virtual COM port and debug port |
Key Features
- Embedded ST-LINK/V2-1 debugger/programmer provides USB virtual COM and debug ports.
- Supports STM32 MPU OpenSTLinux Distribution and STM32CubeMP1 software stacks.
- Includes 1-Gbps Ethernet, CAN FD, USB OTG Micro-AB, and four USB Host Type-A connectors.
- Integrated peripherals include LCD touchscreen, camera interface, audio codecs, and multiple digital microphones.
- Expansion connectors compatible with Raspberry Pi® shields and motor control interfaces.
- Offers multiple memory options including DDR3L, Quad-SPI flash, eMMC, NOR, and NAND flash.
- Equipped with user LEDs, push-buttons, joystick, and wake-up button for versatile user interaction.
- Ideal for industrial, embedded, and development applications requiring complex multi-core processing.
Product Description
STMicroelectronics STM32MP157D-EV1 Evaluation Board is a comprehensive development platform integrating an ARM-based dual Cortex-A7 at 800 MHz and Cortex-M4 32-bit MPU, designed for advanced embedded applications and system prototyping.
This evaluation kit features an on-board ST-LINK/V2-1 debugger/programmer facilitating virtual COM and debug ports via USB, allowing efficient programming and debugging workflows.
It supports development using the STM32 MPU OpenSTLinux Distribution for application development on the main processor, as well as STM32CubeMP1 software for the co-processor, enabling robust and flexible software design.
The board includes a 1-Gbit/s Ethernet interface compliant with IEEE-802.3ab, CAN FD communications, USB OTG Micro-AB, and four USB Host Type-A connectors, addressing diverse connectivity requirements.
Integral peripherals encompass a 5.5-inch TFT LCD with 720x1280 resolution and capacitive touch, 5-megapixel 8-bit camera interface, stereo headset jack with microphone input, four advanced ST-MEMS digital microphones, SPDIF Rx/Tx, smartcard interface, microSD™ card slot, and eMMC, NOR, NAND flash memories for extensive storage options.
Expansion capabilities include two GPIO connectors for motor control and support for Raspberry Pi® shields, broadening the scope of hardware customization.
The evaluation board provides system interaction through two user LEDs, two user push-buttons, a reset push-button, a wake-up button, and a 4-direction joystick with selection button, enhancing user input versatility.
This STM32MP157D-EV1 development board is ideal for industrial, embedded systems, power-efficient computing, and IoT development requiring complex multicore processing with integrated multimedia and communication interfaces.
Explore the Microcontroller Development Tool collection at EnvMart for advanced embedded development solutions. Embedded ST-LINK/V2-1 debugger/programmer provides USB virtual COM and debug ports. Supports STM32 MPU OpenSTLinux Distribution and STM32CubeMP1 software stacks.
Includes 1-Gbps Ethernet, CAN FD, USB OTG Micro-AB, and four USB Host Type-A connectors. Integrated peripherals include LCD touchscreen, camera interface, audio codecs, and multiple digital microphones. Expansion connectors compatible with Raspberry Pi® shields and motor control interfaces.
Offers multiple memory options including DDR3L, Quad-SPI flash, eMMC, NOR, and NAND flash. Equipped with user LEDs, push-buttons, joystick, and wake-up button for versatile user interaction. Ideal for industrial, embedded, and development applications requiring complex multi-core processing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This evaluation board features an ARM-based dual Cortex-A7 processor running at 800 MHz along with a Cortex-M4 32-bit MPU, designed for advanced embedded applications.
It includes a 1-Gbps Ethernet interface compliant with IEEE-802.3ab, CAN FD communications, USB OTG Micro-AB, and four USB Host Type-A connectors for diverse connectivity options.
The board features a 5.5-inch TFT LCD with 720x1280 resolution and capacitive touch, a 5-megapixel camera interface, audio codecs, and multiple digital microphones.
It offers multiple memory options including DDR3L, Quad-SPI flash, eMMC, NOR, and NAND flash for extensive storage capabilities.
The ST-LINK/V2-1 debugger/programmer provides USB virtual COM and debug ports, facilitating efficient programming and debugging workflows.
This model includes expansion connectors compatible with Raspberry Pi® shields and GPIO connectors for motor control, enhancing hardware customization.
It is equipped with user LEDs, push-buttons, a joystick, and a wake-up button to enhance user interaction versatility.
The Ethernet interface is compliant with IEEE-802.3ab, supporting 1-Gbps data rates.
It supports the STM32 MPU OpenSTLinux Distribution for application development on the main processor and STM32CubeMP1 software for the co-processor.
The country of origin for this evaluation board is India.
This product is classified as a development board, specifically the evaluation board with the STM32MP157D MPU.
It utilizes 32-bit technology, incorporating both ARM Cortex-A and Cortex-M processor types.
