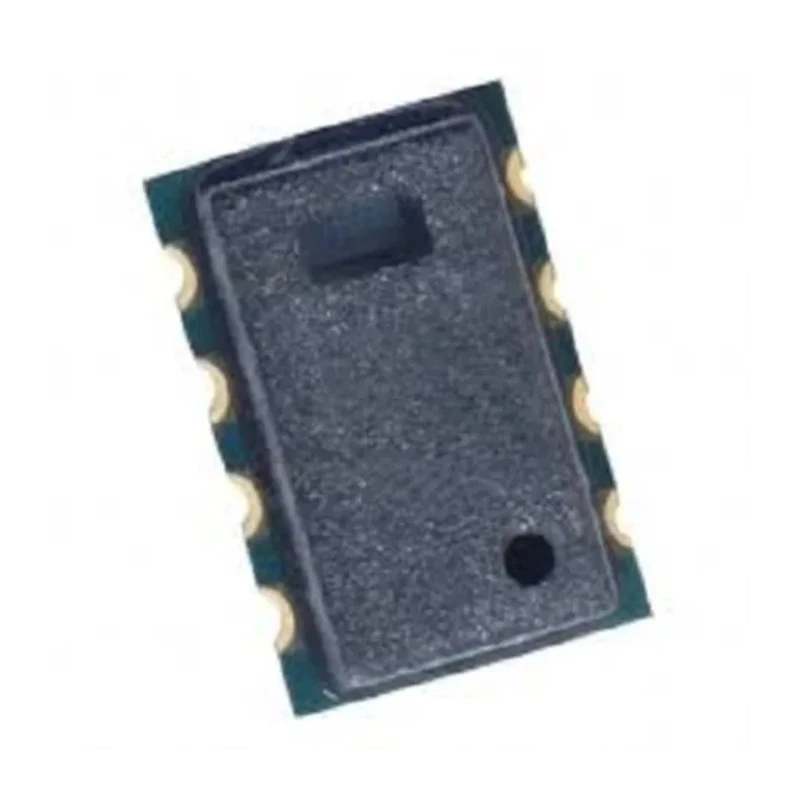

Amphenol Advanced Sensors Digital Output Temperature & Humidity Sensor Surface Mount I2C Interface ±3 % Accuracy 8-Pin CC2D33
Specifications
| Country of Origin | Korea |
|---|---|
| Accuracy | ±3 % |
| Brand | Amphenol Advanced Sensors |
| Height | 6mm |
| Length | 4mm |
| Model | CC2D33 |
| RH Range | 0 to 100 % |
| Width | 1.9mm |
| Mount Type | Surface |
| Output type | Digital |
| Series | CC2D33 |
| Maximum Operating Temperature | 125°C |
| Sub Type | Temperature & Humidity Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | I2C |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
Key Features
- Provides ±3 % accuracy in humidity measurement.
- Operates within temperature range from -40°C to 125°C.
- Features an 8-pin surface mount design suitable for compact PCB layouts.
- Communicates via I2C digital interface for easy system integration.
- Low power consumption with supply voltage from 2.3V to 5.5V.
- Measures relative humidity (RH) from 0 to 100%.
- Compact dimensions of 4mm length, 1.9mm width, and 6mm height.
- Ideal for industrial, laboratory, HVAC, and electronic device applications requiring precise humidity and temperature sensing.
Product Description
Amphenol Advanced Sensors CC2D33 series is a high-performance digital output temperature and humidity sensor designed for surface mount applications, featuring an I2C interface and ±3 % humidity accuracy. It integrates a capacitive polymer sensor chip with a CMOS integrated circuit and EEPROM in a reflow solderable SMD package, enabling precise environmental sensing in compact electronics.
This sensor operates reliably in harsh environments with an operating temperature range from -40°C to 125°C and a wide supply voltage range of 2.3V to 5.5V. Its 8-pin surface mount format facilitates easy incorporation into printed circuit boards, making it suitable for industrial machines, laboratories, HVAC systems, and electronic devices.
The CC2D33 sensor covers the full relative humidity spectrum from 0 to 100 %, ensuring broad environmental monitoring capabilities. Its compact dimensions (4 mm length x 1.9 mm width x 6 mm height) allow integration in space-constrained applications. The digital I2C interface streamlines data communication for embedded systems, reducing design complexity and power consumption.
±3 % humidity accuracy ensures reliable performance. Wide operating temperature range of -40°C to 125°C supports diverse environments. 8-pin surface mount package for compact PCB design. I2C digital interface enables efficient connectivity and control.
Low voltage operation from 2.3V to 5.5V reduces power usage. Measures relative humidity from 0 to 100 % for comprehensive sensing. Compact form factor suitable for industrial and laboratory equipment. Robust design for harsh environmental conditions.
Amphenol Advanced Sensors CC2D33 is a premium choice for accurate and reliable temperature and humidity sensing in industrial automation, laboratory instrumentation, HVAC monitoring, and electronic component manufacturing sectors. Its surface mount design and digital output make it extremely versatile and easy to implement within modern electronic systems.
Explore more sensors and advanced measurement components on EnvMart for your industrial and laboratory needs.
Explore more products in our Temperature & Humidity Sensor category.
