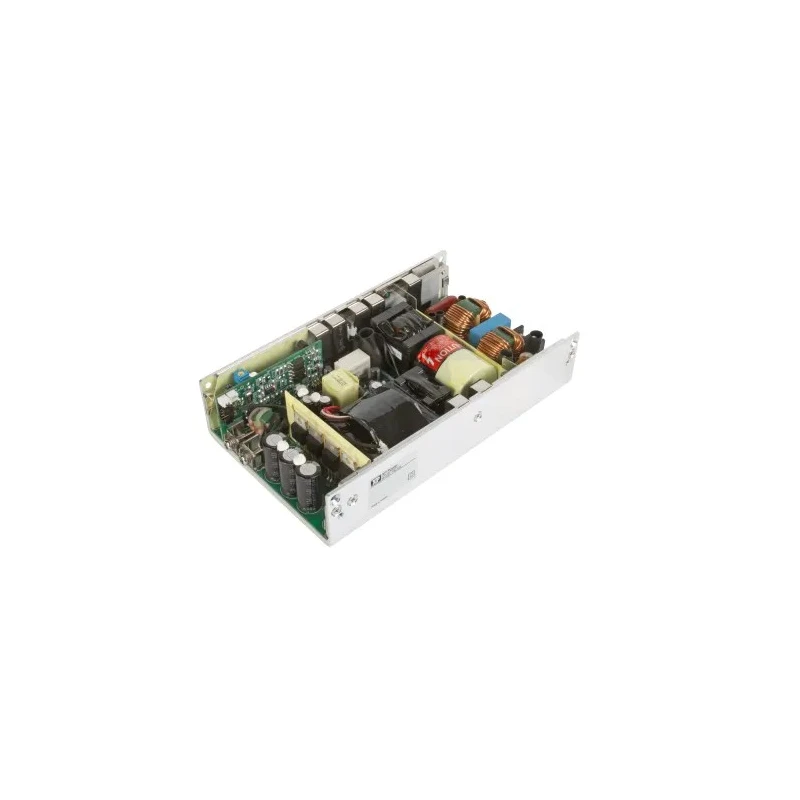

XP Power Switching Power Supply 2 Outputs 24V DC 500W, 264V AC PBL500PS24B
Specifications
| Country of Origin | China |
|---|---|
| Brand | XP Power |
| Power | 500W |
| Efficiency | 90% |
| Length | 180mm |
| Model | PBL500PS24B |
| Depth | 40mm |
| Gross Weight | 2.23lb |
| Width | 107mm |
| Mount Type | Screw |
| Series | PBL500 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Number of outputs | 2 |
| Maximum Input Voltage | 264V ac |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 20.84A |
Key Features
- Delivers 450-500W continuous power with forced air cooling.
- Includes 2 outputs for flexible power distribution.
- Equipped with screw mount type for secure installation.
- Operates between -10°C and 70°C temperature range.
- Compact housing with dimensions 180mm x 107mm x 40mm.
- Features 90% efficiency for reduced energy consumption.
- Meets medical safety approvals with BF rated insulation.
- Provides 5V standby and 12V fan supply outputs.
Product Description
XP Power PBL500PS24B is a high-performance switching power supply featuring two 24V DC outputs and a maximum power output of 500 watts. It is designed for demanding industrial and medical applications requiring reliable and continuous power delivery.
The power supply supports continuous operation up to 500 watts with forced air cooling and 250 watts under convection cooling conditions. It is built on a robust U-channel chassis that provides enhanced mechanical stability and efficient heat dissipation.
With dimensions of 180mm in length, 107mm in width, and 40mm in depth, the unit is compact and easy to install, using screw mounting methods for secure placement. It operates efficiently with a 90% energy efficiency rating, minimizing heat generation and power loss.
This product is specifically designed to meet stringent medical safety standards, including BF rated insulation, making it suitable for medical devices and equipment. It carries multiple certifications such as CSA C22.2 No.60601-1, EN 60601-1, ES 60601-1, and IEC 60601-1, ensuring compliance with international safety regulations.
The PBL500PS24B offers additional features like 5V standby and 12V fan supply outputs, AC OK signal, inhibit control, and remote sensing capabilities, which enhance operational flexibility and system integration. It can operate reliably in environmental temperatures ranging from -10°C to 70°C and at altitudes up to 5000 meters.
Delivers continuous power output of 450-500W with forced air cooling. Supports 250W power output with convection cooling. Dual 24V DC outputs for versatile applications. Screw mount installation for mechanical stability.
Compact footprint with dimensions 180 x 107 x 40 mm. High efficiency of 90% supports energy-saving operations. Certified for medical use with BF rated insulation and multiple safety standards. Includes 5V standby and 12V fan outputs.
Equipped with AC OK, inhibit, and remote sense features. Operates in temperature range -10°C to +70°C and altitudes up to 5000 meters.
This switching power supply is well-suited for industrial, laboratory, HVAC, manufacturing, and medical equipment applications requiring reliable, compliant, and efficient power conversion. Explore our catalogue for more advanced power supply options by XP Power and comparable manufacturers.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum power output of 500 watts with forced air cooling and supports 250 watts under convection cooling conditions.
The dimensions of this unit are 180mm in length, 107mm in width, and 40mm in depth.
It operates with an efficiency rating of 90%, which helps to minimize heat generation and power loss.
The PBL500PS24B features two 24V DC outputs for flexible power distribution.
It operates reliably in a temperature range from -10°C to 70°C.
This unit is designed for screw mount installation, ensuring secure placement.
In addition to the main outputs, it includes a 5V standby output and a 12V fan supply output.
It meets multiple safety standards, including CSA C22.2 No.60601-1, EN 60601-1, ES 60601-1, and IEC 60601-1, making it suitable for medical applications.
The maximum input voltage for the PBL500PS24B is 264V AC.
The gross weight of this model is 2.23 pounds.
It includes features such as AC OK signal, inhibit control, and remote sensing capabilities for enhanced operational flexibility and system integration.
