Samtec SSW Series Right Angle Surface PCB Socket 50-Contact 2 Row 2.54 mm Pitch Solder Termination SSW-125-22-F-D-VS

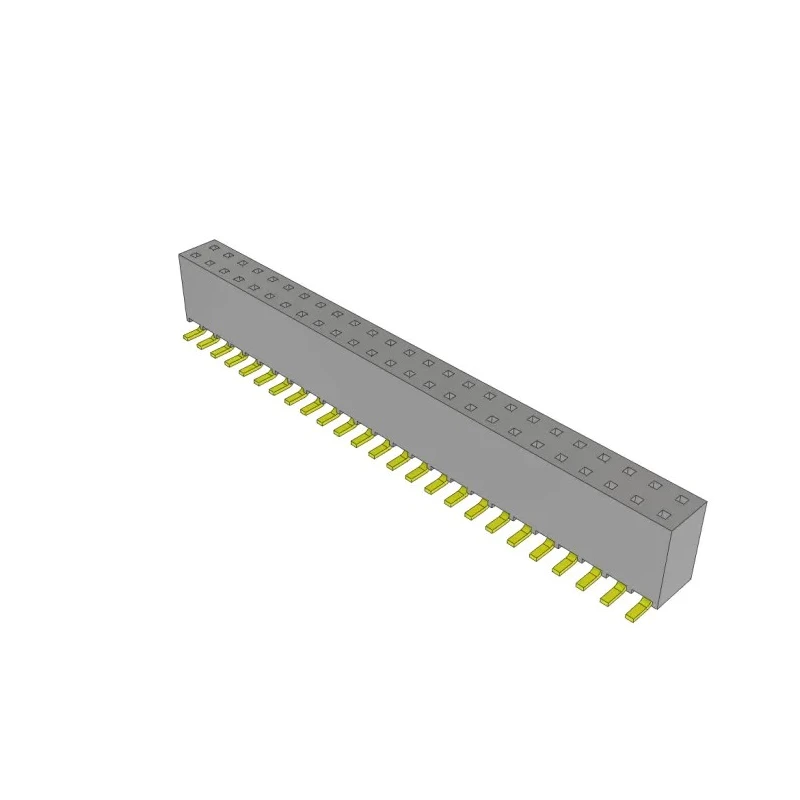

Samtec SSW-125-22-F-D-VS Series Right Angle Surface PCB Socket is a professional-grade, surface mount board-to-board connector designed for high reliability and durability in electronic components applications. This PCB socket features 50 female contacts arranged in 2 rows with a 2.54 mm pitch for precise alignment on printed circuit boards. The right angle orientation enables compact, space-saving PCB layouts in complex assemblies.

The housing is molded from liquid crystal polymer, providing excellent mechanical strength and thermal stability. It supports solder termination via tails optimized for surface mount technology. Contacts are constructed from phosphor bronze and plated in gold to ensure optimal electrical performance combined with corrosion resistance.

Rated for a maximum current of 4.7 A per pin, this socket can operate at voltages up to 655 V (DC), making it suitable for demanding power and signal applications. The operational temperature range from -55°C to 125°C allows usage in a variety of industrial, electronic, and telecommunications environments.

The design includes a row pitch of 2.5 mm, contributing to high-density connector configurations. The Samtec SSW series offers standard and low insertion force contacts to ease board assembly and maintenance.

This socket belongs to the SSW series known for reliable board-to-board connections in industrial, computing, and communication manufacturing sectors. Its durability, precision, and electrical specifications make it applicable for laboratory equipment, electronic instrumentation, power electronics, and automated manufacturing systems.

Features 50 female contacts in a 2-row socket strip configuration. Offers a current rating of 4.7 A per contact. Constructed with a liquid crystal polymer housing for durability. Phosphor bronze contacts with gold plating ensure reliable conductivity.

Designed for surface mount solder termination with right angle orientation. Voltage rating up to 655 V allows for high-voltage applications. Operates between temperatures of -55°C to 125°C for wide temperature ranges. Standard and low insertion force contact options for easy mating.

Row pitch measures 2.5 mm enabling compact PCB layouts. Connector system supports board-to-board interconnections. Explore more PCB Sockets and connectors at EnvMart to find compatible and complementary electronic components for your project needs.
