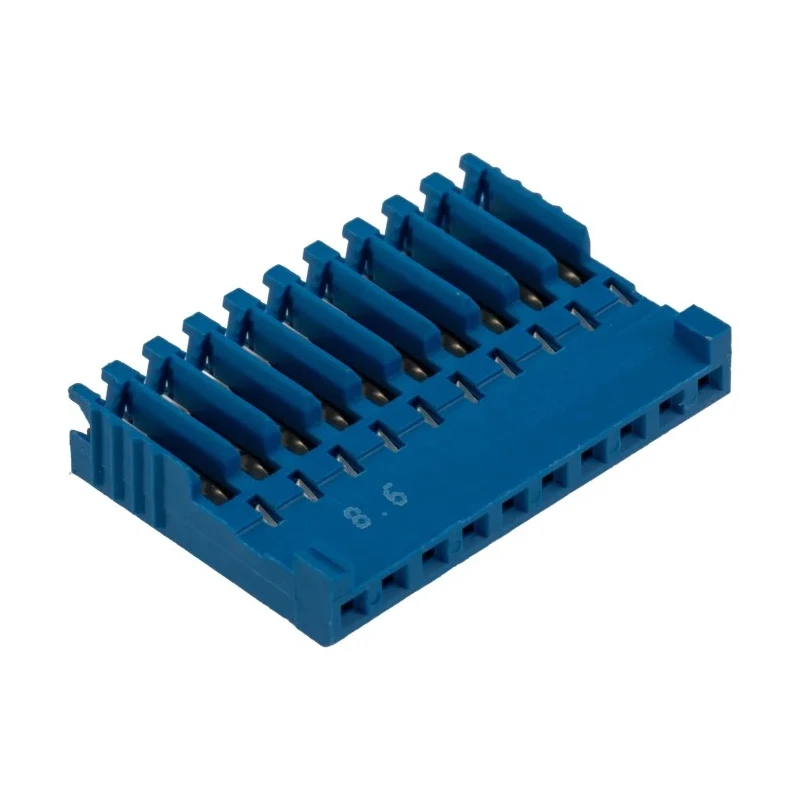

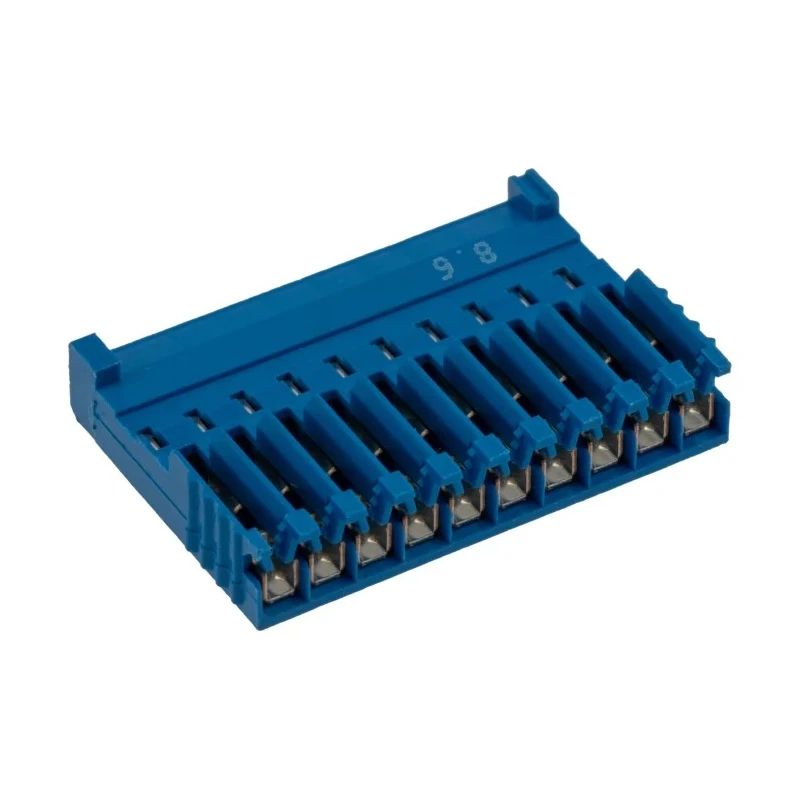

TE Connectivity AMPMODU HE14 Female Connector Housing, 2.54 mm Pitch, 10 Way, 1 Row Straight HE14
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 17.8mm |
| Model | HE14 |
| Width | 26.2mm |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | AMPMODU HE14 |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| For Use With | Centerline Receptacle |
| Number of Contacts | 10 |
| Connector Gender | Female |
Key Features
- This connector accommodates 10 female contacts in a single row for reliable wire termination.
- It features polybutylene terephthalate housing material ensuring durability and industrial grade performance.
- The connector uses a 2.54 mm pitch, which is standard for many PCB and wire housing applications.
- Designed for use with centerline receptacles, it supports IDC cable sockets for discrete wire or ribbon cable sizes 28-26 AWG.
- Its compact length of 17.8 mm and width of 26.2 mm allow for space-efficient installation in electronic assemblies.
- The straight orientation aids in maintaining orderly wiring harness layouts in industrial and automation control systems.
- Part of the AMPMODU HE14 series, widely recognized for signal level interconnect in automation and control applications.
Product Description
TE Connectivity HE14 female connector housing HE14 is a 10 way, 1 row straight connector housing designed for cable mounting with a 2.54 mm pitch. It is crafted from polybutylene terephthalate, providing robustness and electrical insulation suitable for industrial environments.
This connector housing is part of the AMPMODU HE14 interconnect system, which is a reliable and economical solution for signal connections in automation and control. The system includes IDC receptacle assemblies suitable for terminating discrete wires or ribbon cable, shrouded headers, receptacle housings, and crimp contacts, making it highly versatile.
With a cable mounting type and female connector gender, the HE14 housing is intended for use with centerline receptacles, supporting wire gauges 28-26 AWG for IDC cable sockets. Its straight orientation and compact dimensions (17.8 mm length, 26.2 mm width) make it ideal for tight spaces in electronic device assembly.
The high-quality polybutylene terephthalate housing ensures durability under industrial operating conditions. This component is well-suited for industrial, manufacturing, automation, and electronic equipment applications where dependable PCB Connector Housing is critical.
This connector accommodates 10 female contacts in one row. The pitch is 2.54 mm, meeting common electronic standards. Housing material is polybutylene terephthalate for enhanced durability. It is designed for cable mounting with a straight orientation.
Compatible with centerline receptacles for IDC cable sockets. Compact dimensions allow for efficient PCB space utilization. Part of the AMPMODU HE14 series trusted in automation and control industries.
Explore EnvMart’s catalog for more high-quality electronic connectors and components by TE Connectivity and other leading manufacturers to support your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm, which is standard for many PCB and wire housing applications.
It accommodates 10 female contacts in a single row.
The connector housing has a length of 17.8 mm and a width of 26.2 mm.
The housing is made of polybutylene terephthalate, which provides durability and electrical insulation suitable for industrial environments.
This model supports cable mounting, designed for use with centerline receptacles.
It supports wire gauges of 28-26 AWG for IDC cable sockets.
The connector housing features a straight orientation, which aids in maintaining orderly wiring harness layouts.
It is part of the AMPMODU HE14 series, recognized for its reliability in signal level interconnect applications.
This model is suitable for industrial, manufacturing, automation, and electronic equipment applications where dependable PCB connections are critical.
The HE14 connector housing has 1 row.
The country of origin for this connector housing is India.
