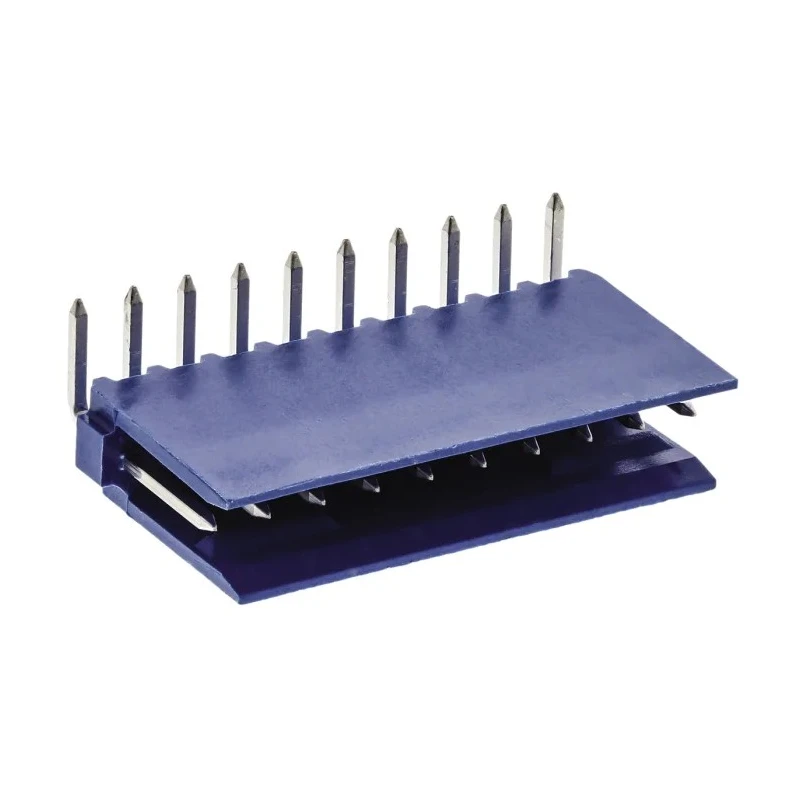

NEUTRAL AMPMODU Series Right Angle Through Hole PCB Header 10 Contact 2.54 mm Pitch 1 Row Shrouded HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | NEUTRAL |
| Orientation | Right Angle |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
| HE14 10W 1/ROW 90 HDRBrand | NEUTRAL |
Key Features
- Constructed with high temperature UL 94V-0 rated thermoplastic housing for durability.
- Features phosphor bronze contact material with tin plating for reliable conductivity.
- Right angle orientation ensures effective PCB connection and signal integrity.
- Shrouded design includes integrated friction lock to prevent mismating and secure connection.
- Operates within temperature range from -40°C to 105°C suitable for various environments.
- Rated for voltage up to 500V and continuous current of 3A.
- Mount type is through hole with solder termination for sturdy assembly.
- Compatible with AMPMODU HE14 IDC receptacles for wire-to-board interfacing.
Product Description
TE Connectivity HE14 series right angle through hole PCB header, model HE14, featuring 10 contacts arranged in a single row with a 2.54 mm pitch. This PCB header is designed with a high temperature UL 94V-0 rated thermoplastic housing that is shrouded to provide pin protection. The housing polarization helps prevent mismating, while the integrated friction lock ensures a secure and stable mating connection.
The contacts are made from phosphor bronze with tin plating, offering excellent electrical conductivity and resistance to corrosion. This connector operates reliably within an industrial temperature range of -40°C to 105°C and can support up to 3 amps of current at a voltage rating of 500 volts, making it well suited for demanding electronic applications.
The through hole mount type and solder termination provide strong mechanical and electrical stability on PCBs. This PCB header is compatible with corresponding AMPMODU HE14 IDC receptacles, ideal for terminating discrete wires or 2.54 mm pitch ribbon cables used in wire-to-board interconnects.
Common applications include automotive controls, industrial automation, telecommunications equipment, computers, medical instruments, test and measurement apparatus, storage equipment, and consumer appliances, making it a versatile component in multiple electronic and industrial systems.
High temperature UL 94V-0 thermoplastic housing ensures durability under heat stress. Shrouded pin design provides enhanced protection and secure connection. Polarized housing prevents incorrect mating and potential damage.
Integrated friction lock secures connections against vibration and movement. Phosphor bronze with tin plating contacts guarantee dependable electrical performance. Rated for 3A current and 500V voltage suitable for industrial electronic assemblies.
Right angle orientation allows for versatile mounting configurations. Through hole solder termination guarantees mechanical stability on PCB. Compatible with AMPMODU HE14 IDC receptacles for wire-to-board applications.
Explore the AMPMODU HE14 series at EnvMart for industrial and electronic projects requiring robust and reliable PCB header connectors. This product supports high-quality interconnect solutions in construction, manufacturing, automotive, and telecommunications industries.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a maximum voltage of 500V.
The HE14 model supports a continuous current of up to 3A.
It operates reliably within a temperature range from -40°C to 105°C.
This model features a through hole mount type with solder termination for assembly.
The contacts are made from phosphor bronze with tin plating to ensure reliable conductivity.
This PCB header has 10 contacts arranged in a single row.
This model is shrouded, providing enhanced protection for the pins.
The pitch size for this PCB header is 2.54 mm.
It supports a wire-to-board connector system, making it suitable for various applications.
The orientation of this model is right angle, allowing for versatile mounting configurations.
The housing is constructed from high temperature UL 94V-0 rated thermoplastic for durability.
This header is compatible with AMPMODU HE14 IDC receptacles for wire-to-board interfacing.
