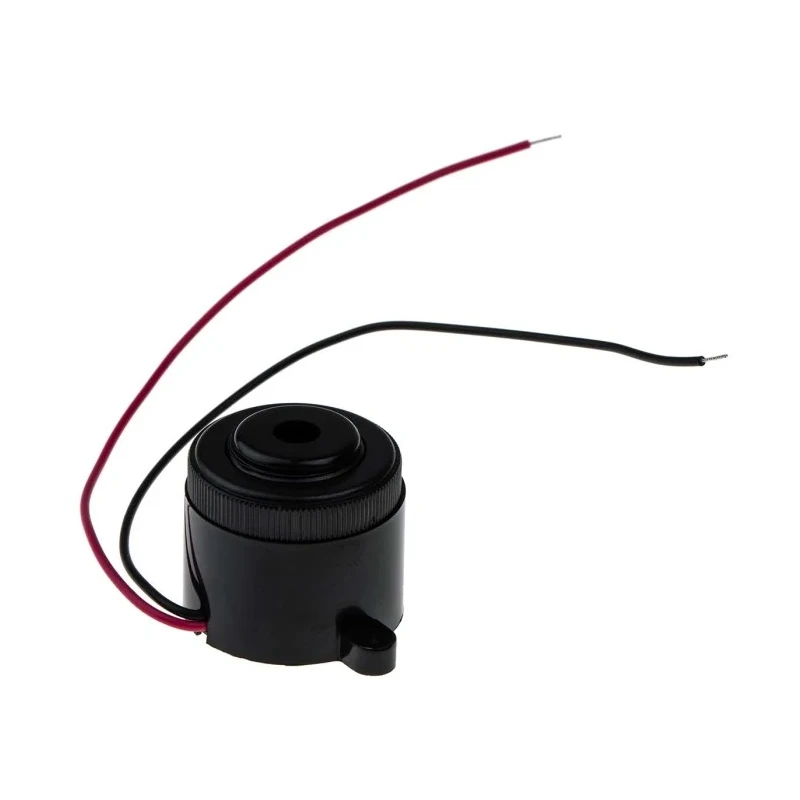

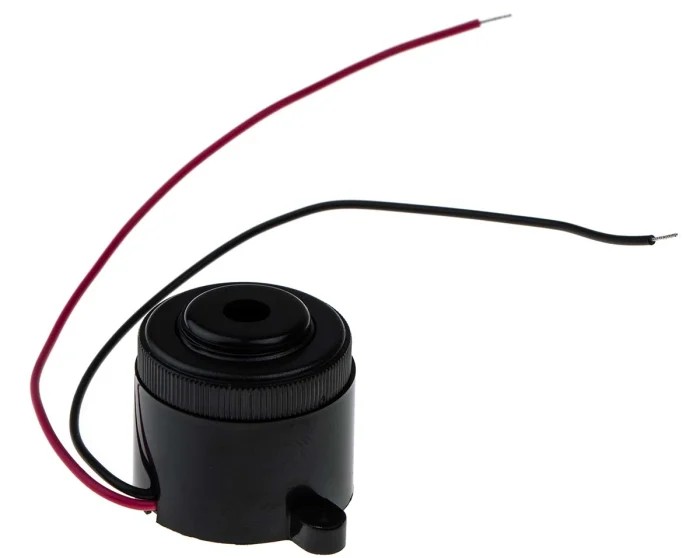

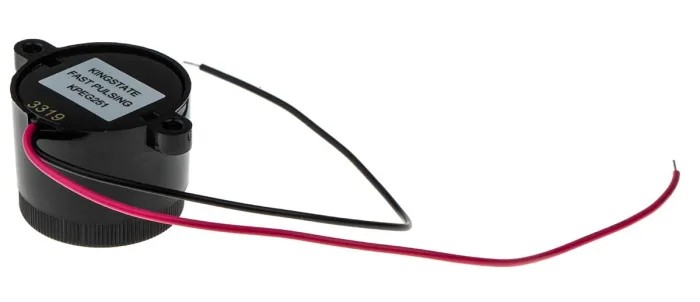

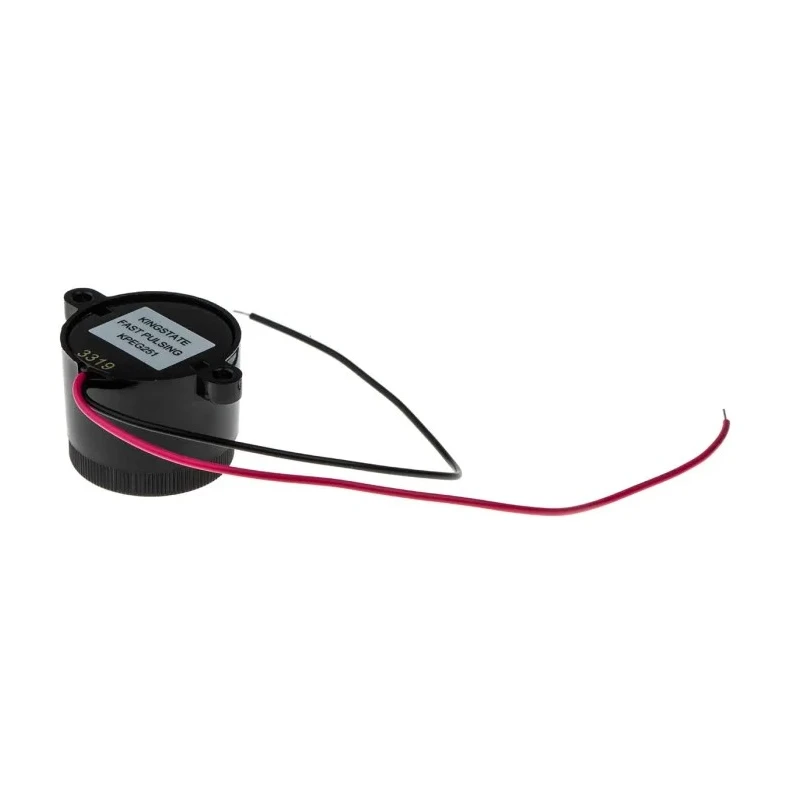

NEUTRAL 82 dB Panel Mount Fast Pulse Internal 25.4 mm Piezo Buzzer Component 39.5 mm 4 V dc Min 28V dc Max 535-8269
Specifications
| Country of Origin | Taiwan |
|---|---|
| Diameter | 28mm |
| Brand | NEUTRAL |
| Sound Level | 82dB |
| Height | 25.4mm |
| Length | 39.5mm |
| Model | 535-8269 |
| Depth | 28mm |
| Drive Type | Internal |
| Mount Type | Panel Mount |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Maximum Frequency | 4kHz |
| Termination Style | Wire |
| Maximum Supply Voltage | 28V dc |
| Minimum Supply Voltage | 4V dc |
| Supply Current | 5mA |
| Tone Type | Fast Pulse |
| Minimum Frequency | 3000Hz |
| Piezo BuzzerBrand | NEUTRAL |
Key Features
- Operates from 4 V dc minimum to 28 V dc maximum supply voltage.
- Generates a clear sound level of 82 dB with minimal power consumption.
- Features a compact panel mount design with dimensions 25.4 mm height and 28 mm diameter.
- Provides a fast pulse tone with frequency range from 3000 Hz to 4 kHz.

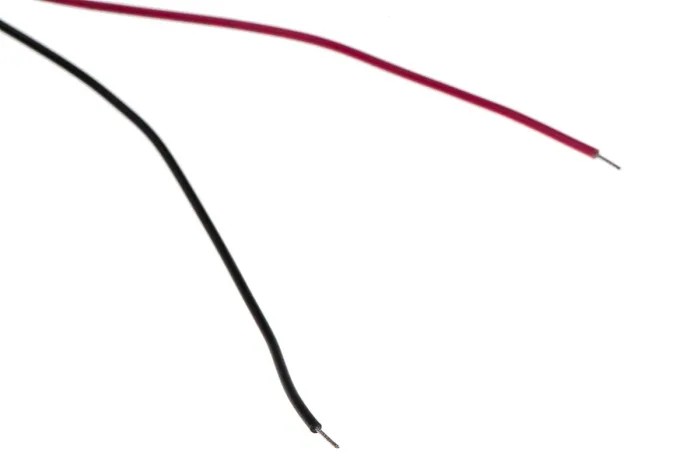

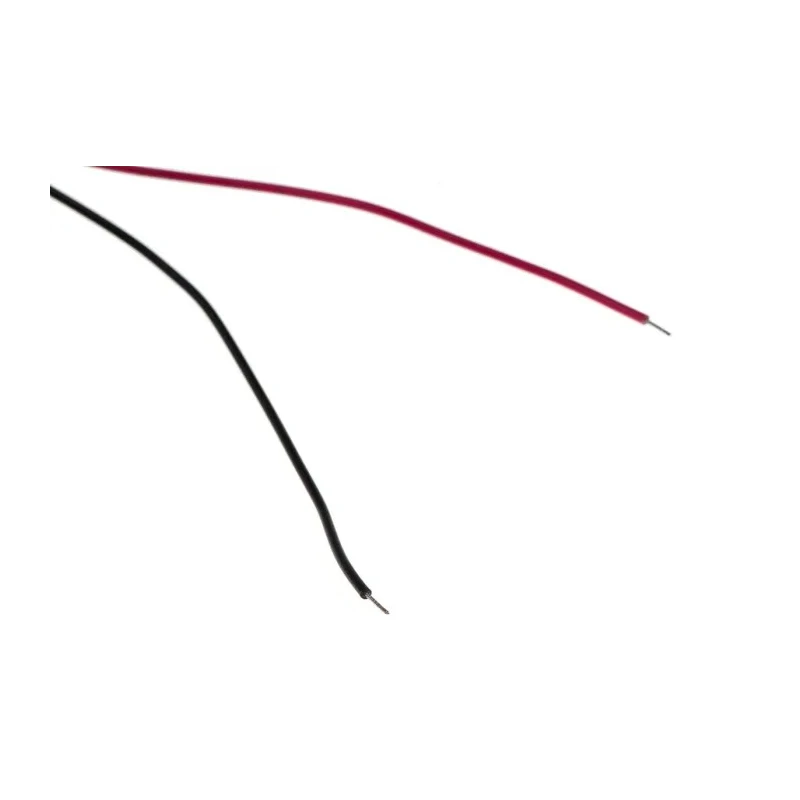

- Includes 39.5 mm wire termination for easy circuit connection.
- Withstands operating temperatures from -30°C to 85°C for harsh environments.
- Consumes a supply current of 5 mA ensuring energy efficiency.
- Suitable for automotive equipment, fire alarms, and other industrial signaling uses.
Product Description
RS PRO 535-8269 Piezo Buzzer Component is a high-performance panel mount device offering a fast pulse internal tone at 82 dB sound output. Designed for electronic, industrial, and commercial applications, it operates efficiently on a wide voltage range from 4 V dc to 28 V dc with low current draw of 5 mA.
This buzzer's compact size, featuring a diameter of 28 mm and height of 25.4 mm with a length of 39.5 mm for wire termination, ensures easy integration into panel mount assemblies. Its robust operating temperature range from -30°C to +85°C makes it suitable for demanding environmental conditions, including outdoor and automotive equipment.
The buzzer emits a fast pulse tone spanning 3000 Hz to 4000 Hz frequency bands which ensures clear audible signaling in noisy industrial settings. The internal drive technology eliminates the need for external driving circuits, simplifying installation and reducing system complexity.
Built to meet stringent electrostatic discharge standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, this component guarantees reliability and durability in safety critical applications like fire alarms and alert systems.
The 535-8269 buzzer from RS PRO supports panel mounting and features wire termination for straightforward connection to circuit boards, making it an adaptable and efficient choice for electronic component designs.
Operates with supply voltages from 4 V dc to 28 V dc. Provides a loud 82 dB fast pulse sound level. Compact panel mount form factor with 28 mm diameter and 25.4 mm height. Wide operating temperature range of -30°C to 85°C.
Low supply current draw at 5 mA for energy efficiency. Conforms to key electrostatic discharge standards ensuring product reliability. Ideal for automotive, alarm, and industrial signaling applications.
This RS PRO Piezo Buzzer Component combines robust performance with flexible installation options to meet the needs of diverse industrial, electronic manufacturing, and safety system requirements. For more high-quality electronic components and piezo buzzers, explore the extensive RS PRO lineup at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a voltage range of 4 V dc to 28 V dc.
This model generates a sound level of 82 dB.
The buzzer has a diameter of 28 mm, a height of 25.4 mm, and a length of 39.5 mm for wire termination.
It emits a fast pulse tone with a frequency range from 3000 Hz to 4 kHz.
It consumes a supply current of 5 mA, ensuring energy efficiency.
This buzzer can operate in temperatures ranging from -30°C to 85°C.
It features a wire termination style for easy circuit connection.
This model utilizes internal drive technology, eliminating the need for external driving circuits.
It is suitable for automotive equipment, fire alarms, and other industrial signaling uses.
It is built to meet electrostatic discharge standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007.
It supports panel mounting, making it easy to integrate into various assemblies.
The brand of this component is NEUTRAL.
