NEUTRAL 92 dB Panel Mount Fast Pulse Continuous Internal Piezo Buzzer Component 6V DC Min 28V DC Max 237-962

Free Delivery in India | Lowest Global Shipping Charges

NEUTRAL 92 dB Panel Mount Fast Pulse Continuous Internal Piezo Buzzer Component 6V DC Min 28V DC Max 237-962

Name: NEUTRAL 92 dB Panel Mount Fast Pulse Continuous Internal Piezo Buzzer Component 6V DC Min 28V DC Max 237-962
Brand: NEUTRAL
SKU: 149858
Price: 27.8 USD
Availability: InStock



Category Piezo Buzzer Component Brand NEUTRAL Condition New

Specifications

Country of Origin	Taiwan
Diameter	35.5mm
Brand	NEUTRAL
Sound Level	92dB
Height	23.5mm
Model	237-962
Drive Type	Internal
Mount Type	Panel Mount
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Standards/Approvals	RoHS
Maximum Frequency	4.1kHz
Termination Style	PC Pin
Maximum Supply Voltage	28V dc
Minimum Supply Voltage	6V dc
Supply Current	13mA
Tone Type	Fast Pulse, Continuous
Minimum Frequency	3100Hz

Key Features

Compact panel mount design for easy installation.
Operates between 6 V DC minimum and 28 V DC maximum supply voltage.
Emits a high sound level of 92 decibels for effective audible signaling.
Durable plastic construction with PC pin termination for PCB mounting.
Operating temperature range from -30°C to 85°C for wide environmental tolerance.
Consumes 13 mA supply current for efficient power usage.
Measures 35.5 mm diameter and 23.5 mm height for compact footprint.

Product Description

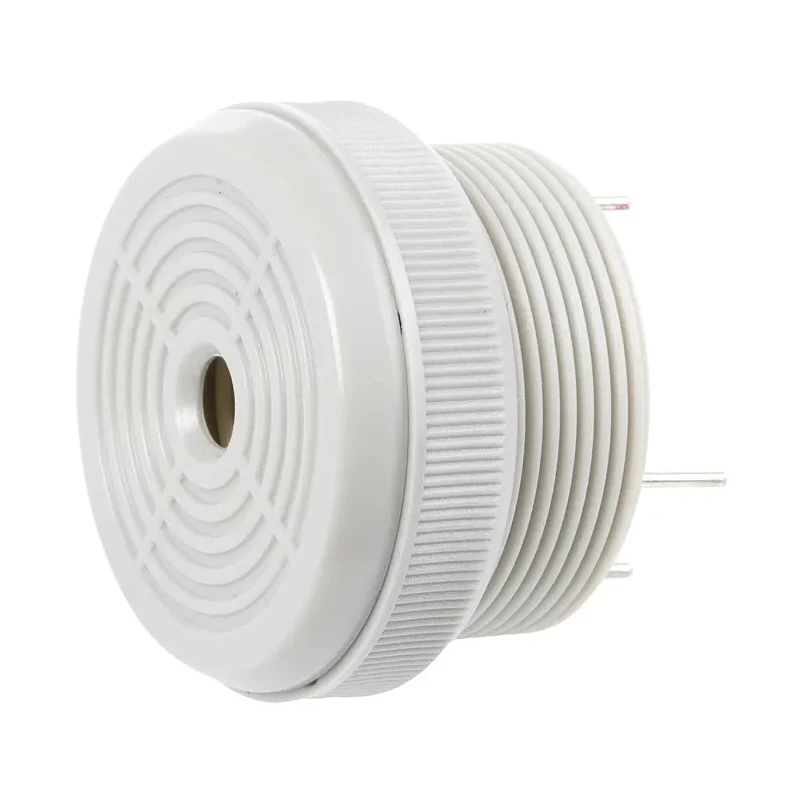

RS PRO 237-962 piezo buzzer component is designed for panel mounting with a compact size of 35.5 mm diameter and 23.5 mm height, making it ideal for installation in control panels with limited space. This buzzer offers continuous, fast pulse tones at a sound level of 92 dB, making it suitable for use as an alarm or audible signaling device in industrial, commercial, and domestic applications.

The component operates on DC voltage ranging from 6 V minimum to 28 V maximum and draws a current of 13 mA, providing efficient and reliable performance. Its frequency range of 3100 Hz to 4.1 kHz produces an effective and distinct tone suitable for smoke alarms, security devices, and other alert systems.

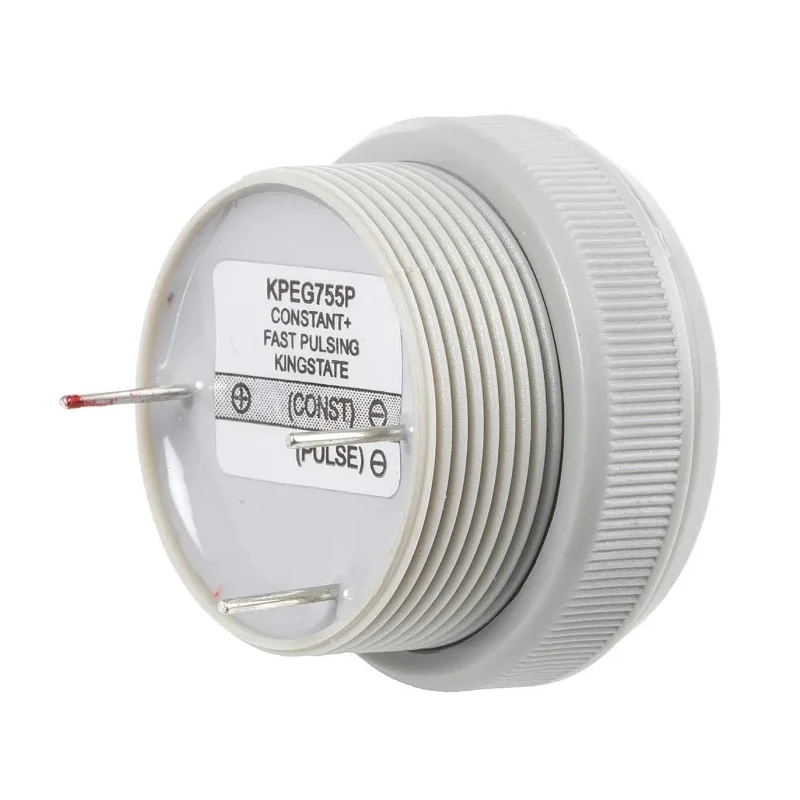

The unit is constructed with a lightweight plastic housing and features PC pin termination style for secure mounting on printed circuit boards. It is specified to operate in a temperature range of -30°C to 85°C, ensuring resilience in a variety of environmental conditions.

This piezo buzzer complies with relevant RoHS environmental directives and meets stringent American and European electrostatic control standards, ensuring quality and safety. Compact panel mount design for easy installation.

Supply voltage range of 6 V to 28 V DC. High sound level of 92 dB for effective alerts. Frequency from 3100 Hz to 4.1 kHz with internal drive type. Operating temperature from -30°C to +85°C for durability. PC pin termination facilitates PCB mounting.

Low current consumption at 13 mA. Measuring 35.5 mm diameter and 23.5 mm height. Compliant with RoHS and electrostatic discharge standards.

This product is well suited for industrial automation, instrumentation panels, security alarms, and HVAC control systems. It supports audible signaling requirements where space constraints exist and high sound output is necessary. Customers seeking reliable Piezo Buzzer Components for control panel applications will find this RS PRO component an effective choice.
