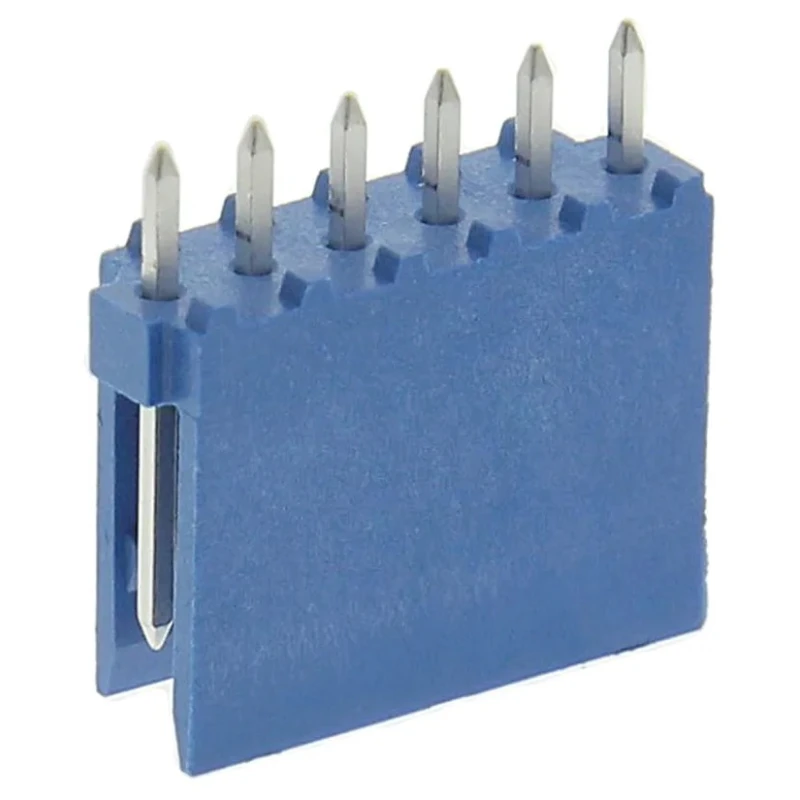

TE Connectivity AMPMODU HE14 Series Straight Through Hole PCB Header, 6 Contacts, 2.54 mm Pitch, 1 Row, Shrouded HE14

TE Connectivity HE14 Series Straight Through Hole PCB Header, model HE14, features 6 contacts with a 2.54 mm pitch and single-row, straight orientation designed for wire-to-board applications.

The header includes a shrouded, blue thermoplastic housing with UL 94V-0 high temperature rating, providing superior thermal resistance and electrical insulation. The housing is polarized to prevent mismating and includes protective shrouds for pin protection combined with an integrated friction lock that ensures secure, stable mating connections.

Manufactured using phosphor bronze contact material with tin plating, these contacts provide excellent conductivity and corrosion resistance. The connector supports through-hole mounting and is rated for 3A current and 500V voltage, suitable for various industrial and commercial electronic interconnect applications.

The operational temperature range spans from -40°C to 105°C, allowing usage in demanding environments such as automotive controls, industrial and test equipment, telecommunications, medical instruments, storage equipment, computers, and appliances.

This AMPMODU HE14 header mates with corresponding AMPMODU HE14 IDC receptacles for terminating discrete wires or 2.54 mm pitch ribbon cables, forming a reliable and economical interconnect system ideal for automation and control applications.

6 contact pins for secure wire-to-board connection. 2.54 mm pitch and single row configuration. Shrouded housing protects pins and prevents mismating. Thermoplastic housing rated UL 94V-0 for high temperature performance.

Phosphor bronze contact material with tin plating ensures conductivity and corrosion resistance. Through-hole mount type for PCB integration. Operating voltage up to 500V with 3A current rating. Wide temperature range from -40°C to 105°C.

Male contacts with 2.79 mm tail pin length. Integrated friction lock for secure mating connection.

This product is ideal for a broad range of industrial, laboratory, telecommunications, and manufacturing environments requiring reliable PCB interconnect solutions. Explore more TE Connectivity connectors and headers in the EnvMart catalog for comprehensive electronic component solutions.
