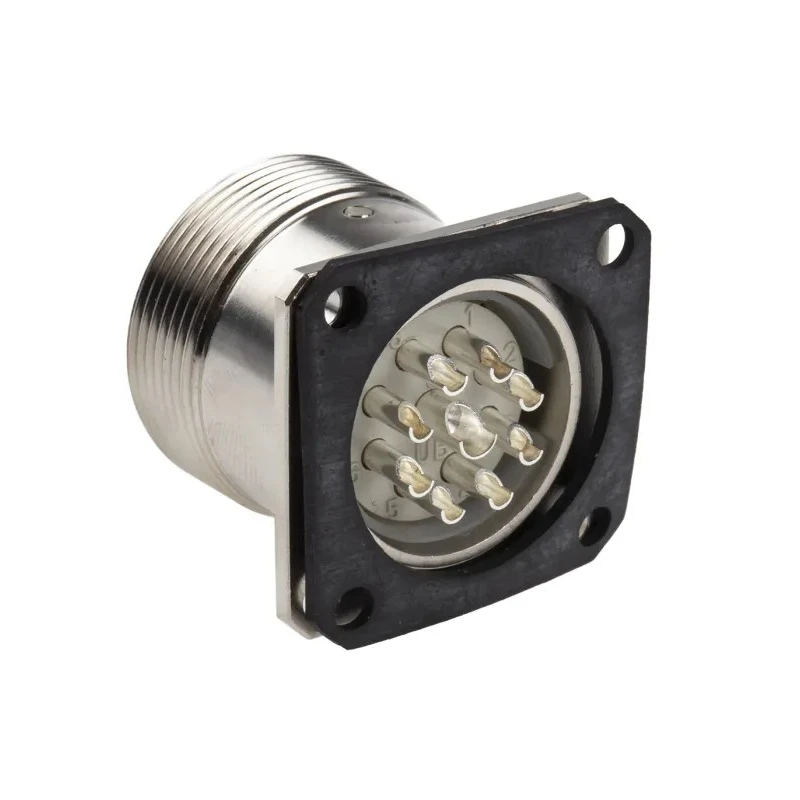

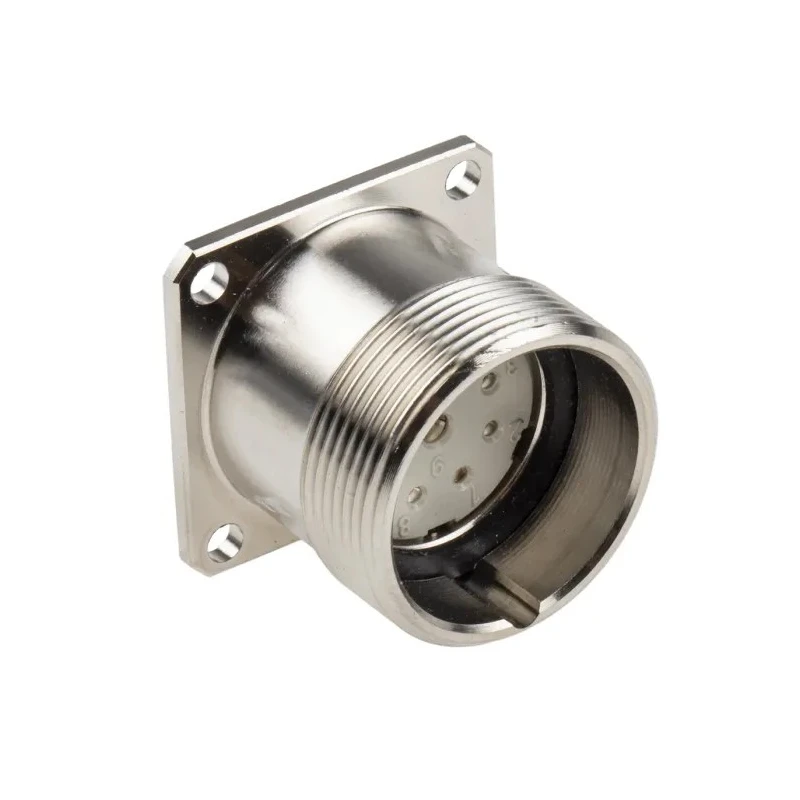

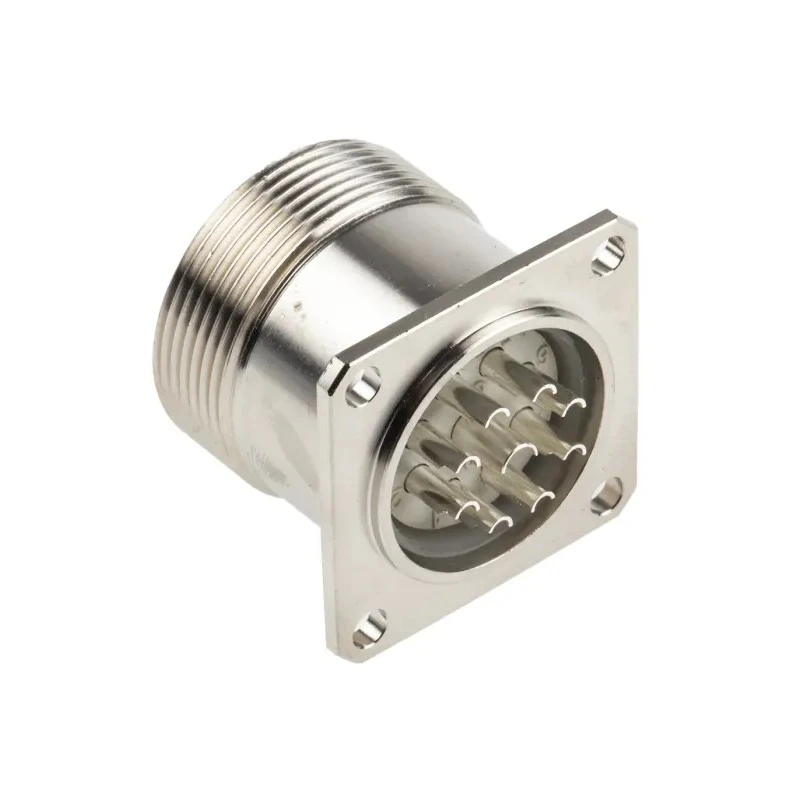

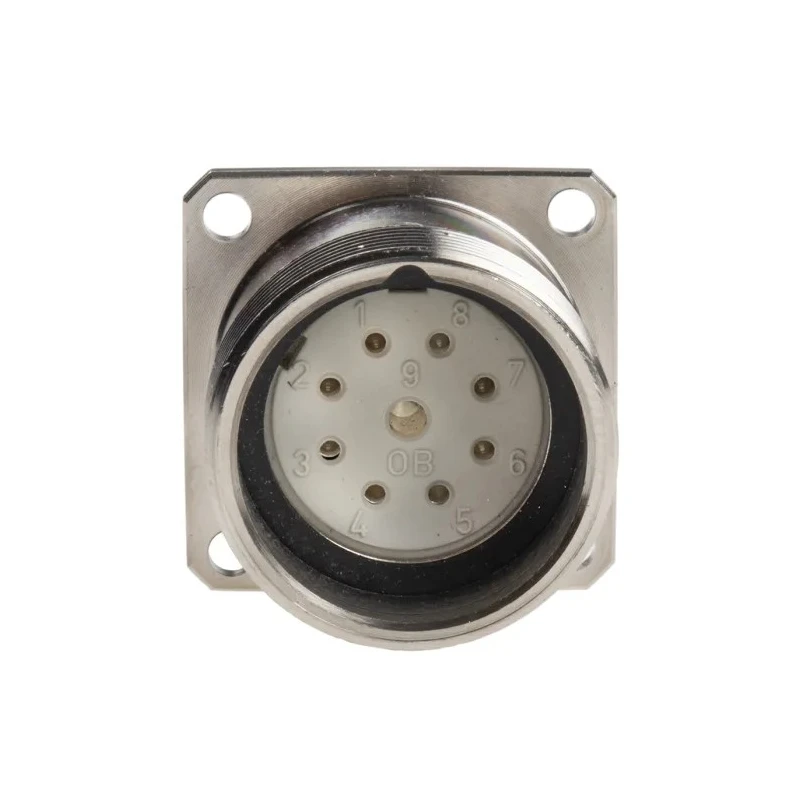

Lapp Circular Connector 9 Contacts Panel Mount Socket Female 19.5 mm IP65 EPIC R Series 50101200+00008705
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1.5kV |
| Brand | Lapp |
| Orientation | Straight |
| Current | 7.5A |
| Model | 50101200+00008705 |
| IP Rating | IP65 |
| Mount Type | Panel Mount |
| Housing Material | Copper |
| Contact Material | Copper |
| Series | EPIC R |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 9 |
| Contact Plating | Silver |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Shell Size | 25 mm |
| Mating Type | Screw Lock |
| Connector Size | 19.5 mm |
| Plug/Socket | Socket |
Key Features
- Compact circular connector suitable for industrial signal and power applications.
- Features 9 silver-plated copper contacts with a straight orientation.
- Panel mount type with robust flange and screw locking mating system.
- Connector size of 19.5 mm and shell size of 25 mm for high contact density.
- Rated for 7.5 A current and 1.5 kV voltage with solder termination.
- Operating temperature range from -40°C to 125°C for harsh environments.
- Constructed with copper housing and corrosion-resistant nickel plating.
- IP65 rated for dust-tight and low-pressure water spray resistance.
Product Description
Lapp 50101200+00008705 circular connector is a 9-contact, female socket designed for panel mounting within the EPIC R Series. This compact connector measures 19.5 mm in diameter and 25 mm shell size, providing a robust and space-saving solution for industrial signal and power applications.
The connector is rated for 7.5 A current and 1.5 kV voltage, with a solder termination type ensuring secure contact. Its copper alloy housing with corrosion-resistant nickel plating offers excellent mechanical protection and durability in demanding environments. The screw locking mating system guarantees reliable connections, suitable for automation, measurement, and machine manufacturing industries.
This product features an IP65 protection rating, making it dust tight and resistant to low-pressure water sprays, thus suitable for indoor and some outdoor industrial settings. The operating temperature range spans from -40°C to 125°C, supporting use in varied environmental conditions.
The connector is designed with a straight orientation and uses silver-plated copper contacts for optimal conductivity and corrosion resistance. It includes a robust flange for secure panel mounting and is compatible with mating parts such as 9 pole circular connector plugs from the EPIC R Series.
Compact size and high contact density within a small shell. Screw locking mating system for secure engagement. IP65 rating ensures protection against dust and water ingress. Corrosion-resistant copper alloy housing with nickel plating.
Wide operating temperature range from -40°C to 125°C. Suitable for industrial automation, measurement, and control applications. Ideal for use with multi-core cables in industrial signal transmission. Designed for a reliable and maintenance-free connection in demanding environments.

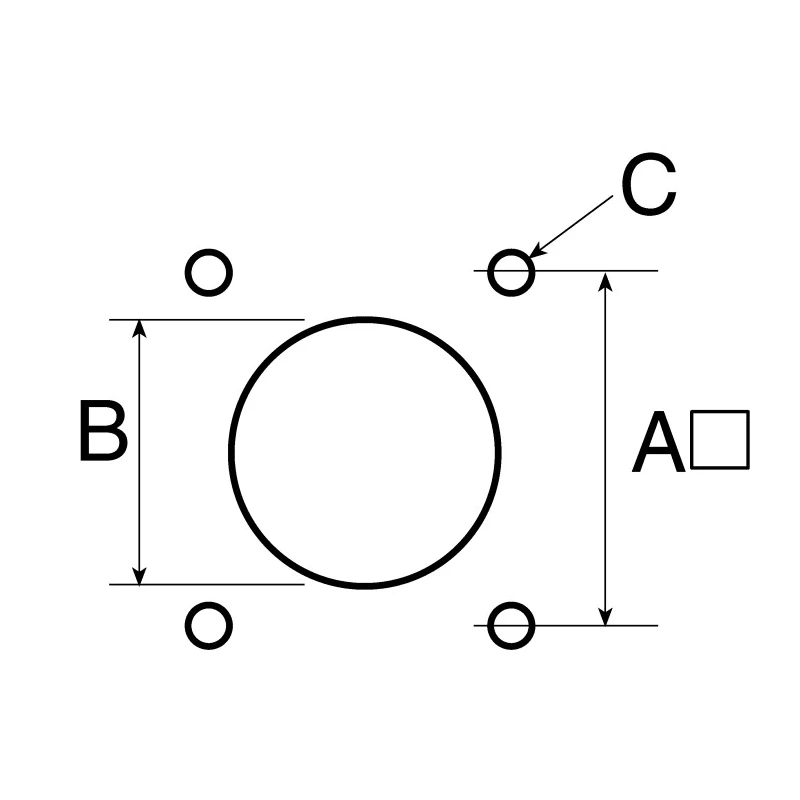

Robust flange mount secures connector to panels firmly.
Choose the Lapp EPIC R Series 50101200+00008705 circular connector for durable and efficient connectivity in your industrial setups. Explore other Industrial Circular Connectors within EnvMart's extensive catalog to find complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 7.5 A and a voltage of 1.5 kV.
It has an IP65 rating, making it dust-tight and resistant to low-pressure water sprays.
The operating temperature range spans from -40°C to 125°C, suitable for harsh environments.
It features a copper housing with corrosion-resistant nickel plating and silver-plated copper contacts.
This model is designed for panel mounting and includes a robust flange for secure installation.
It uses a solder termination type, ensuring secure contact connections.
This circular connector has 9 contacts and is a female socket type.
The connector has a size of 19.5 mm and a shell size of 25 mm.
It features a screw locking mating system for reliable connections.
This model is part of the EPIC R Series by Lapp.
It is suitable for industrial signal and power applications, including automation and measurement.
The country of origin for this connector is Germany.
