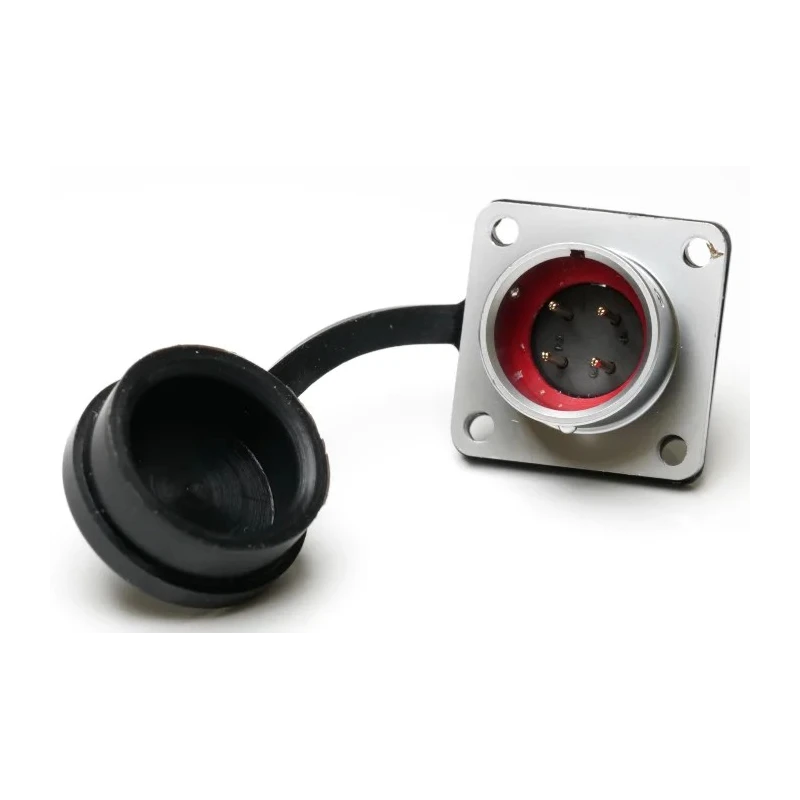

RS PRO Industrial Circular Connector, 4 Contacts, Flange Mount, M16 Size, Socket, Male, IP67, 500V, 5A, Chrome 206-5105
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 5A |
| Model | 206-5105 |
| IP Rating | IP67 |
| Mount Type | Flange |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 4 |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shell Size | 18.4 mm |
| Mating Type | Push Pull |
| Connector Size | M16 |
| Plug/Socket | Socket |
Key Features
- The connector supports 500V voltage and 5A current for robust electrical applications.
- Manufactured with chrome plated brass housing and gold-plated brass contacts to ensure durability and corrosion resistance.
- Features a push-pull coupling system and solder termination for secure and easy installation.
- Designed for high performance with an operating temperature range from -40°C to 85°C.
- IP67-rated design for waterproof and dustproof protection, suitable for harsh environments.
- Ideal for use in medical devices, test & measurement equipment, and communications applications.
- Supports 500 mating cycles ensuring long-term reliability.
- Shell size measures 18.4 mm and cable compatibility supports wire size 0.75 to 1.5 mm² with cable diameter between 5-12 mm.
Product Description
RS PRO 206-5105 is a premium Industrial Circular Connector featuring 4 contacts arranged in a flange mount style with M16 connector size, designed as a socket with male contact gender. It is manufactured with a robust chrome plated brass housing and brass contacts plated in gold to provide excellent conductivity and resistance to wear and corrosion.
This connector operates reliably within a voltage rating up to 500V and a maximum current of 5A. It supports a wide operating temperature range from -40°C to 85°C, making it suitable for demanding industrial, medical, communications, and test & measurement environments that require high precision and resilience.
The connector uses a push-pull mating type providing quick, secure, and maintenance-friendly connections, suitable for panel cable mounting with a flange mount type. Termination is by soldering ensuring stable electrical contact.
Rated IP67, this device is waterproof and dustproof, making it ideal for harsh or outdoor conditions where ingress protection is critical. The shell size is 18.4 mm with a panel-hole cut-out size of 16 mm, and it is compatible with cables having an outer diameter of 5-12 mm and wire sizes from 0.75 mm² to approximately 18 AWG.
The connector supports up to 500 mating cycles, providing durability for repeated use. Its compact M16 form factor and flange mount type allow for secure panel integration. Gold-plated brass contacts ensure high-quality signal transmission and corrosion resistance.
Its straight orientation and push-pull coupling simplify installation and maintenance. Suitable for constructing customized connector systems requiring secure, waterproof connections. Widely used in industrial, laboratory, construction, HVAC, manufacturing, and agricultural applications that demand reliable connectors.
RS PRO connectors are trusted for their precision and reliability in various industrial and critical performance settings. This model 206-5105 is specifically designed to meet exacting standards for electrical and mechanical connection durability.
Explore more connectors and industrial solutions in the RS PRO range on EnvMart to find compatible accessories and additional configurations.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 500V and a maximum current of 5A, making it suitable for robust electrical applications.
It has an IP67 rating, which means it is waterproof and dustproof, suitable for harsh environments.
The housing is made of chrome plated brass, and the contacts are brass plated with gold for enhanced conductivity and corrosion resistance.
It operates reliably within a temperature range from -40°C to 85°C, allowing it to function in extreme conditions.
This connector features 4 contacts arranged in a male socket configuration.
The shell size measures 18.4 mm, and it is compatible with cables having an outer diameter between 5-12 mm.
It uses solder termination, ensuring stable electrical contact for reliable connections.
This model features a push-pull mating type, which allows for quick and secure connections.
It supports up to 500 mating cycles, providing durability for repeated use.
This connector is designed for flange mounting, making it suitable for panel cable installations.
It is ideal for use in medical devices, test & measurement equipment, and communications applications, among others.
This model has a straight orientation, facilitating easy installation and maintenance.
