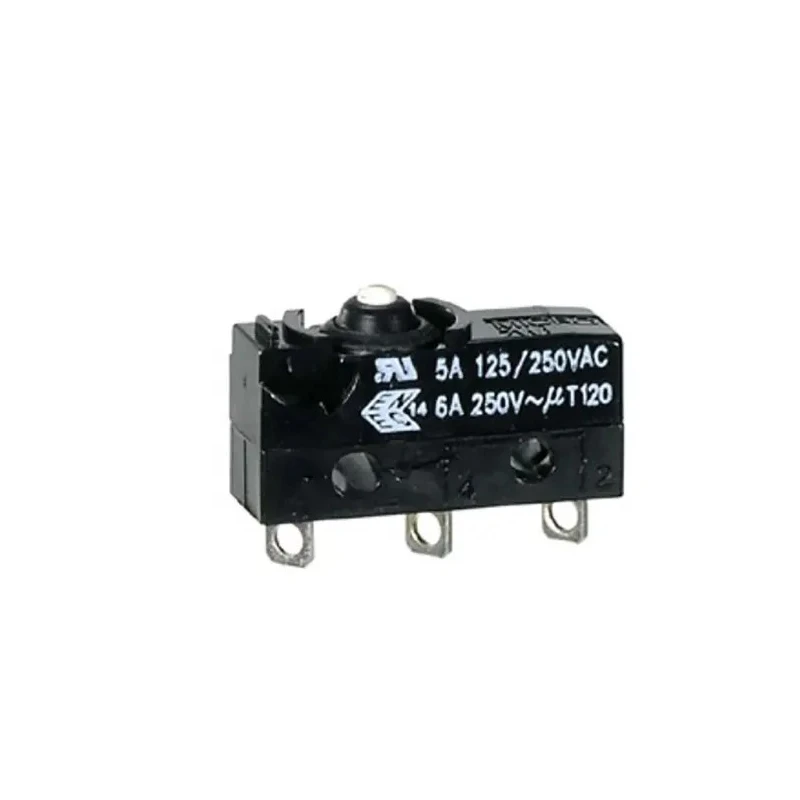

Honeywell Technologies Pin Plunger Micro Switch PCB Terminal 100mA 250V AC SPDT IP00 ZW10E20AD1
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Honeywell |
| Length | 19.8mm |
| Model | ZW10E20AD1 |
| Depth | 9.25mm |
| IP Rating | IP00 |
| Width | 6.4mm |
| Housing Material | Polybutylene Terephthalate |
| Series | ZW |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Hazardous Area Certification | CQC, cUL, ENEC, RoHS, UL |
| Standards/Approvals | ENEC, RoHS, UL, CQC, cUL |
| Switch Contact Current | 100mA |
| Operating Force | 150g |
| Mechanical Life | 1000000min |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
Key Features
- Actuator type is a durable pin plunger for reliable mechanical actuation.
- Features a subminiature design suitable for compact PCB mounting applications.
- Operating force rated at 150 grams for consistent trigger response.
- Wide operating temperature range from -40°C to 120°C accommodates varied environments.
- Constructed with polybutylene terephthalate housing for stability and chemical resistance.
- Contact configuration is SPDT allowing single-pole changeover switching.
- Electrical rating supports 250 V AC voltage and 100 mA contact current.
- Mechanical life expectancy of one million cycles ensures long-term reliability.
Product Description
Honeywell ZW10E20AD1 pin plunger micro switch is a compact and reliable mechanical switching device designed to provide precise control in electrical and electronic assemblies. Featuring a pin plunger actuator and PCB terminals, it operates as a single-pole double-throw (SPDT) switch rated for 100 mA current and 250 V AC voltage, making it ideal for low-power signal switching and sensing applications.
The switch housing is crafted from polybutylene terephthalate, chosen for its excellent dimensional stability and resistance to common industrial chemicals, ensuring durability in a range of environments. It operates reliably within a wide thermal range from -40°C to 120°C, suitable for cold storage and elevated temperature industrial enclosures.
Mechanical life rating of one million cycles supports applications requiring frequent switching and long service intervals. The device is designed for PCB mounting with smooth integration onto boards, facilitating compact and efficient designs in consumer electronics, automated machinery, and test jigs that require rapid cycling.
Ingress protection is rated IP00, so usage is recommended in environments protected from dust and moisture. The micro switch carries multiple global certifications including ENEC, RoHS, UL, CQC, and cUL, aligning it with international safety and quality standards.
Durable pin plunger actuator for repeatable mechanical input conversion. Subminiature form factor for space-saving PCB integration. Wide operating temperature range from -40°C to 120°C. Polybutylene terephthalate housing offers chemical and thermal stability.
Contact current of 100 mA at 250 V AC supports low voltage circuit detection. Mechanical lifespan of 1,000,000 cycles prolongs device service life. SPDT contact configuration enables single-pole double-throw switching. PCB terminal type allows secure and direct board mounting.
Compliance with ENEC, RoHS, UL, CQC, and cUL standards for safety and performance.
Ideal for position sensing in automated machinery, control panel input switches, limit switching in electromechanical assemblies, and compact consumer electronic devices requiring precise and reliable switching. Suitable for a variety of industrial, laboratory, manufacturing, and commercial applications.
Explore more Micro Switch options and Honeywell products on EnvMart for dependable industrial and electronic control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a contact current of 100 mA at a voltage of 250 V AC.
The mechanical life expectancy is rated at one million cycles, ensuring long-term reliability.
It operates within a wide temperature range from -40°C to 120°C, suitable for various environments.
It features a pin plunger actuator for reliable mechanical actuation.
The housing is constructed from polybutylene terephthalate, providing stability and chemical resistance.
The switch has a single-pole double-throw (SPDT) contact configuration.
It measures 19.8 mm in length, 6.4 mm in width, and 9.25 mm in depth.
It uses PCB terminals for secure and direct board mounting.
It carries multiple certifications including ENEC, RoHS, UL, CQC, and cUL, ensuring compliance with international standards.
The operating force is rated at 150 grams for consistent trigger response.
It is suitable for position sensing in automated machinery, control panel input switches, and limit switching in electromechanical assemblies.
The ingress protection rating is IP00, indicating it should be used in environments protected from dust and moisture.
