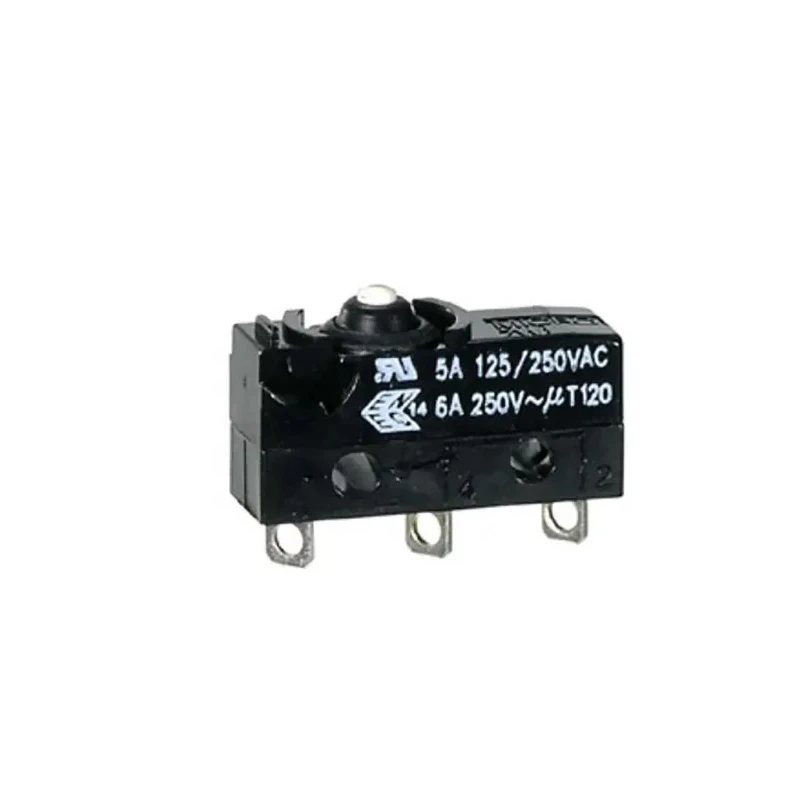

Honeywell Technologies Pin Plunger Micro Switch, PCB Terminal, 6A, 250V AC, SPDT, IP00 ZW50F20AD1

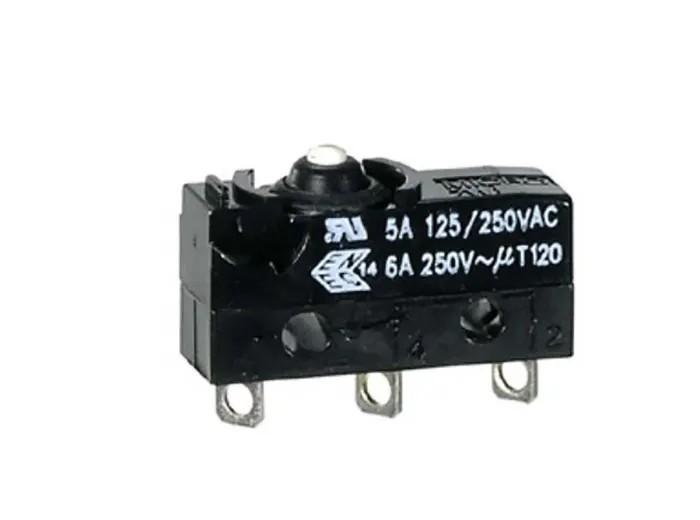

Honeywell ZW50F20AD1 Pin Plunger Micro Switch is a compact electromechanical component designed for precise single-pole changeover control within electronic assemblies, operating at 250V AC and 6A current rating.

This micro switch features a pin plunger actuator that provides defined mechanical input, making it suitable for integration onto printed circuit boards with PCB terminals that allow for direct board mounting and space saving.

Constructed with polybutylene terephthalate housing, it offers excellent electrical insulation and shape stability, enabling durability in demanding environments with an operational temperature range from -40°C up to 120°C.

The SPDT (Single-Pole Double-Throw) contact configuration facilitates toggle control between outputs, useful in various control and detection applications in automation and electrical equipment.

With a robust mechanical life of up to 1,000,000 operations and an operating force of 203 grams, this subminiature microswitch is engineered for consistent performance and reliability.

It has been certified by major standards bodies including UL, RoHS, ENEC, cUL, and CQC, ensuring safety and quality compliance for regulated industrial applications.

Honeywell ZW50F20AD1 is ideally used for limit sensing in industrial automation, human-machine interface buttons on control panels, thermal system assemblies requiring temperature tolerance, and position detection in electromechanical devices. Its small size and design also make it suitable for integration into small appliances and power modules.

Equipped with a pin plunger actuator for precise mechanical input. PCB terminal type allows for secure through-hole mounting on circuit boards. Polybutylene terephthalate housing provides electrical insulation and stability.

Wide operational temperature range from -40°C to 120°C suitable for harsh conditions. Rated for 6A switching current at 250V AC, supporting standard power circuits. SPDT contact configuration enables changeover switching functionality.

Dimensions: Length 19.8mm, Width 6.4mm, Depth 9.25mm for compact installation. Operational mechanical lifespan of 1,000,000 cycles ensures durability. Certified under UL, RoHS, ENEC, cUL, and CQC standards for safety and compliance.

Ideal for industrial, electrical, automation, and thermal applications. Explore more Honeywell Micro Switches and related components in the Electronics & Electricals category at EnvMart.
