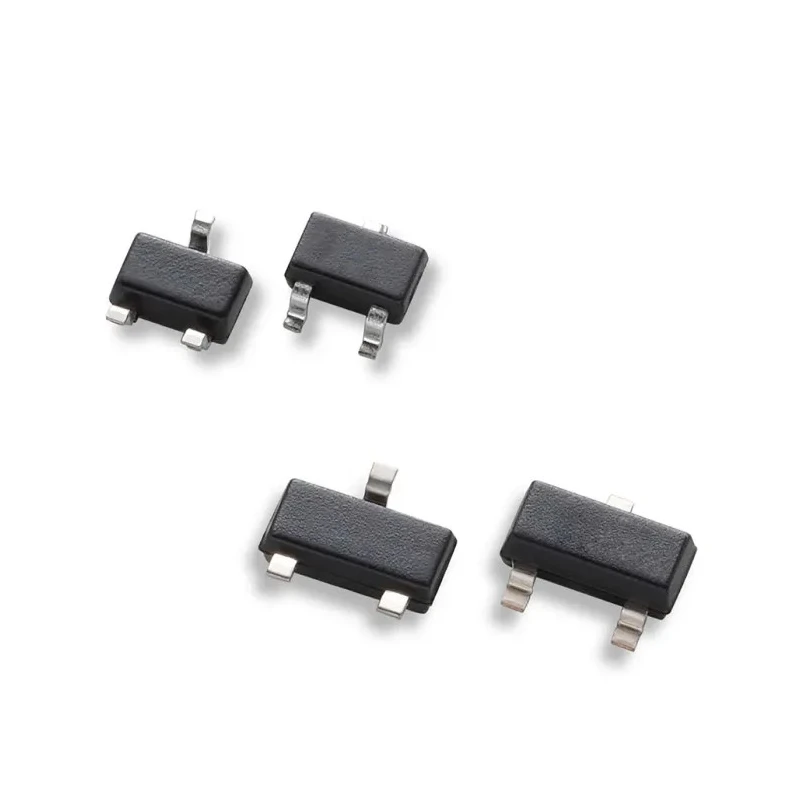

Littelfuse 3-Element Uni-Directional TVS Diode Array, 3-Pin SOT-23 AQ3102-02HTG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Height | 1mm |
| Length | 2.95mm |
| Model | AQ3102-02HTG |
| Width | 2.4mm |
| Mount Type | Surface |
| Series | AQ3102 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Number of Elements per Chip | 3 |
| Clamping Voltage VC | 16V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.5V |
| Maximum Reverse Stand-off Voltage Vwm | 6V |
| Maximum Peak Pulse Current Ippm | 8A |
| Maximum Reverse Leakage Current | 500nA |
Key Features
- The diode array offers low capacitance of 1pF typical per I/O.
- Low leakage current of 0.01μA typical at 5V ensures minimal power loss.
- Qualifies to automotive standard AEC-Q101 for reliability in harsh environments.
- Capable of clamping voltage at 16V with a peak pulse current of 8A.
- Operates from -40°C to 150°C with surface mount SOT-23 package.
- Ideal for protecting automotive electronic equipment against destructive ESD events.
- Features 3 elements per chip providing uni-directional electrostatic discharge protection.
- Halogen-free, lead-free, and RoHS-compliant construction for environmental safety.
Product Description
The Littelfuse AQ3102-02HTG is a 3-element uni-directional transient voltage suppression (TVS) diode array designed to protect sensitive automotive electronic equipment from destructive electrostatic discharges (ESD). It is housed in a compact and surface-mount 3-pin SOT-23 package, making it suitable for high-density circuit designs.
This TVS Diode Array features a low typical capacitance of 1pF per I/O and an ultra-low leakage current of 0.01μA at 5V, ensuring efficiency and minimal signal degradation. The device operates reliably over a wide temperature range from -40°C up to 150°C, conforming to the automotive industry's demanding requirements.
With a minimum breakdown voltage of 6.5V and a maximum reverse stand-off voltage of 6V, the diode provides a clamping voltage of 16V and can withstand a peak pulse current of 8A, offering robust protection against transient voltage spikes.
Meeting the AEC-Q101 automotive standard, this diode array provides superior ESD protection suitable for automotive electronics and other industrial applications requiring high reliability. Its halogen-free, lead-free, and RoHS-compliant materials ensure environmentally friendly operation.
The diode configuration is an array of 3 elements per chip. Provides uni-directional ESD protection with 3 pins in SOT-23 package. Low capacitance and leakage current minimize performance impact. High peak pulse current rating safeguards circuits during voltage transients.
Temperature range supports a broad range of automotive and industrial environments.
This product is ideal for use in automotive electronics, industrial electronic systems, and other applications requiring transient voltage suppression to protect delicate components from voltage spikes and electrostatic discharges.
Explore more Littelfuse semiconductor products for advanced circuit protection solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this model is 16V, providing robust protection against transient voltage spikes.
It can withstand a maximum peak pulse current of 8A, ensuring effective protection during voltage transients.
This unit operates reliably over a temperature range from -40°C to 150°C, suitable for various automotive and industrial environments.
The AQ3102-02HTG features a diode configuration that consists of 3 elements per chip, providing effective uni-directional ESD protection.
It offers a low typical capacitance of 1pF per I/O, which helps minimize signal degradation.
This model qualifies to the AEC-Q101 automotive standard, ensuring reliability in harsh environments.
It is housed in a surface-mount SOT-23 package with a pin count of 3.
The maximum reverse stand-off voltage is 6V, which is critical for its operation in protecting sensitive electronics.
The maximum reverse leakage current is 500nA, ensuring minimal power loss during operation.
It provides uni-directional electrostatic discharge (ESD) protection, making it suitable for automotive electronic equipment.
The country of origin for this model is India.
The dimensions of this model are 2.95mm in length, 2.4mm in width, and 1mm in height.
