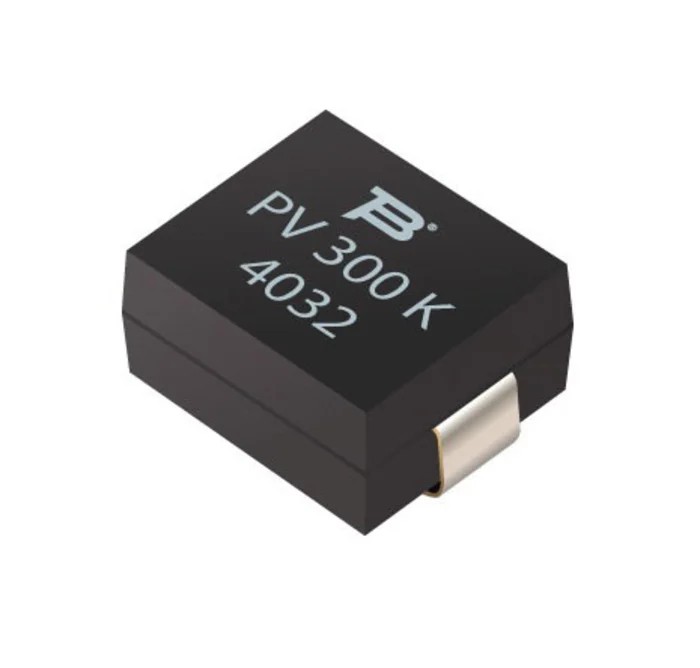

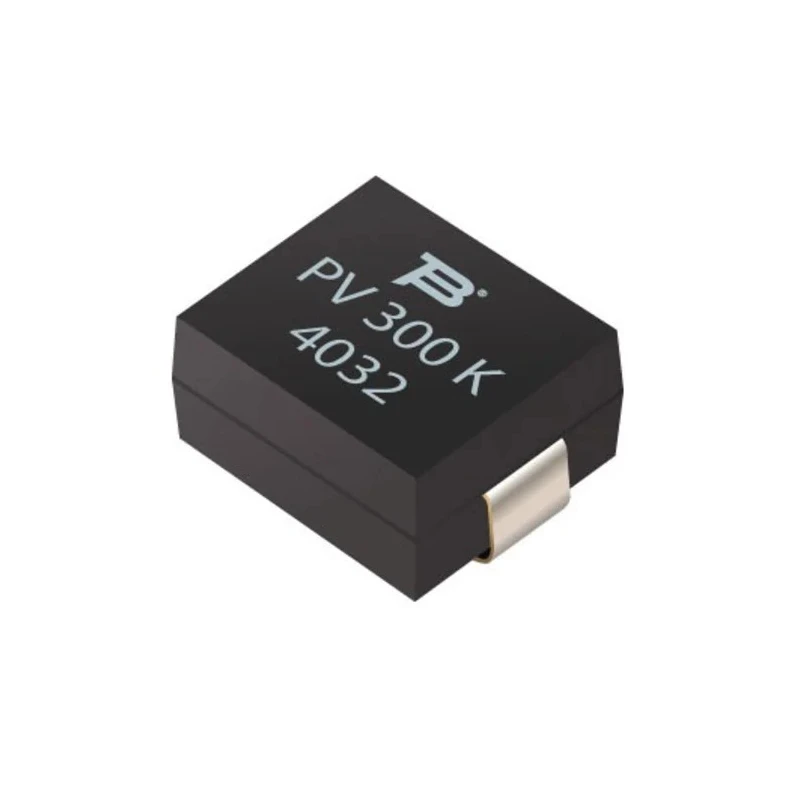

Bourns PV Series Plastic-Encapsulated Surface Mount Varistor 75 pF 5 A Clamping Voltage 710 V Varistor Voltage PV275K3225R2
Specifications
| Country of Origin | Slovenia |
|---|---|
| Brand | Bourns |
| Material | Plastic |
| THICKNESS | 3.4mm |
| Length | 8mm |
| Model | PV275K3225R2 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | PV |
| Energy Rating | 13J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 75pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 350V dc |
| Standards/Approvals | RoHS, UL |
| Package/Case | 3225 |
| Termination Style | Surface Mount |
| Maximum AC Voltage | 275V ac |
| Clamping Voltage VC | 710V |
| Clamping Current | 5A |
| Maximum Surge Current | 400A |
| Varistor Voltage | 430 V |
Key Features
- Features a clamping voltage of 710 V and varistor voltage of 430 V.
- Operates with a maximum AC voltage of 275 V and DC voltage of 350 V.
- Plastic encapsulation is UL 94 V-0 rated, ensuring non-flammability.
- Thermoplastic body with tinned copper sheet contacts allows easy soldering.
- Designed for surface mounting in tape and reel packaging for automatic placement.
- Operating temperature range from -40°C to 85°C suitable for various environments.
- Energy rating of 13J supports protection against voltage surges.
- Compliance with RoHS and UL standards for safety and quality.
Product Description
Bourns PV275K3225R2 varistor is a plastic-encapsulated surface mount device engineered to protect electronic equipment from voltage surges in low and medium voltage regions. Featuring a capacitance of 75 pF and a clamping current capacity of 5 A, this varistor ensures reliable transient voltage suppression.
The device offers a clamping voltage of 710 V and a varistor voltage of 430 V, allowing operation up to a maximum AC voltage of 275 V and DC voltage up to 350 V. Its thermoplastic encapsulation is UL 94 V-0 rated, providing non-flammable characteristics that suit stringent safety requirements.
The varistor’s body measures 8 mm in length with a thickness of 3.4 mm, incorporating tinned copper sheet contacts that facilitate easy soldering on surface mount PCBs. Supplied in tape and reel format, it supports automated pick-and-place assembly processes commonly used in modern electronics manufacturing.
Designed to function reliably within a temperature range from -40°C to 85°C, this component is well suited for industrial and commercial electronics applications requiring robust surge protection. The energy rating of 13 joules ensures ability to absorb transient surges effectively.
Certified to meet RoHS and UL standards, the Bourns PV series varistors provide safe, high-quality surge protection with proven performance, ideal for use in power supplies, control systems, and other sensitive electronic equipment.
Clamping voltage of 710 V and varistor voltage of 430 V. Capacitance of 75 pF and maximum surge current of 400 A. Plastic encapsulation with UL 94 V-0 flammability rating. Surface mount package size 3225 measuring 8 mm x 3.4 mm.
Operating temperature range from -40°C to 85°C. Energy absorption rating of 13 joules for surge protection. Complies with RoHS and UL safety standards. Tape and reel packaging suitable for automated assembly.
This Varistor is suitable for industrial, laboratory, electronic manufacturing, and commercial applications where surge protection is critical. For further selections and similar components, explore the Electronics Components and Surge Protection Components categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this varistor is 710 V.
It can handle a maximum AC voltage of 275 V and a maximum DC voltage of 350 V.
The capacitance of this model is 75 pF.
The maximum surge current rating for this varistor is 400 A.
The operating temperature range for this model is from -40°C to 85°C.
The surface mount package measures 8 mm in length and 3.4 mm in thickness.
This varistor features a plastic encapsulation and tinned copper sheet contacts for easy soldering.
It complies with RoHS and UL safety standards.
It is supplied in tape and reel packaging, suitable for automated pick-and-place assembly processes.
The energy absorption rating of this varistor is 13 joules.
This model is designed for surface mounting.
It is suitable for industrial, laboratory, electronic manufacturing, and commercial applications where surge protection is critical.
