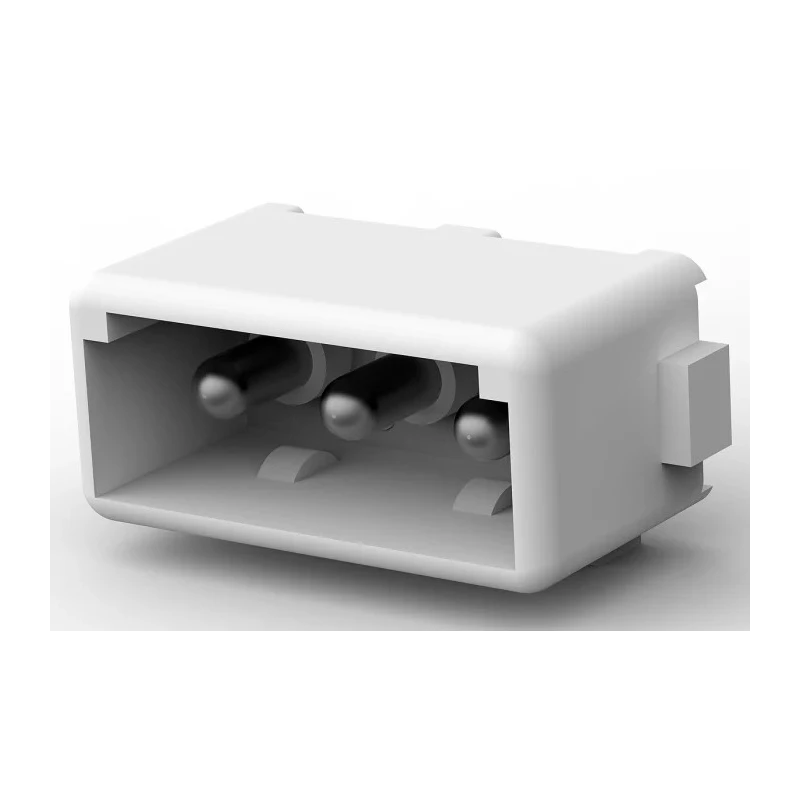

TE Connectivity Commercial MATE-N-LOK Series Straight Through Hole PCB Header, 3 Contacts, 5.08 mm Pitch, 1 Row 350210-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 13A |
| Model | 350210-1 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | Commercial MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
Key Features
- Precision moulded nylon housing ensures durability and insulation.
- Shrouded male contacts provide secure wire-to-board connection.
- Mount type is through hole for stable PCB placement.
- Contacts made from phosphor bronze with tin plating for reliable conductivity.
- Operates within −40°C to 105°C temperature range.
- Integral positive locking latches hold mating connectors firmly under vibration and shock.
- Contact tail pin length is 2.79 mm for solder termination.
- Designed to meet MIL-STD 202 method 208 for solderability.
Product Description
TE Connectivity 350210-1 Commercial MATE-N-LOK Series Straight Through Hole PCB Header offers a robust and reliable wire-to-board connection solution. Featuring a 5.08 mm pitch and 3 male contacts arranged in a single row, this PCB header is specially designed with a straight orientation for through hole mounting on printed circuit boards.
The housing is precision moulded from durable nylon material, providing excellent electrical insulation and mechanical stability. The shrouded design prevents incorrect mating and helps align the connector during assembly. Contacts are made from phosphor bronze with tin plating, balancing conductivity, corrosion resistance, and solderability.
Rated for a maximum voltage of 250V and current of 13A, it is suitable for various electronic components and power distribution applications requiring secure and stable connections. The connector operates reliably within a temperature range of −40°C to 105°C, making it appropriate for use in industrial, commercial, and electronic manufacturing environments.
Integral detent lock and positive locking features secure the mated connectors, ensuring connection integrity even under severe conditions of vibration and shock. The tail pins have a length of 2.79 mm optimized for solder termination on PCBs in automated assembly lines.
These Commercial MATE-N-LOK PCB Headers comply with MIL-STD 202 method 208 for solderability ensuring high quality in assembly processes. Precision moulded nylon housing ensures durability and insulation. Shrouded male contacts provide secure wire-to-board connection.
Mount type is through hole for stable PCB placement. Contacts made from phosphor bronze with tin plating for reliable conductivity. Operates within −40°C to 105°C temperature range. Integral positive locking latches hold mating connectors firmly under vibration and shock.
Contact tail pin length is 2.79 mm for solder termination. Designed to meet MIL-STD 202 method 208 for solderability.
This product is ideal for industrial, laboratory, electronic manufacturing, and HVAC applications needing durable and reliable PCB connectors. Discover more in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 5.08 mm.
It is rated for a maximum voltage of 250V.
This header can handle a maximum current of 13A.
The operating temperature range is from −40°C to 105°C.
The housing is made from nylon, and the contacts are made from phosphor bronze with tin plating.
This model features 3 male contacts.
It uses solder termination with a tail pin length of 2.79 mm.
The mounting type is through hole, providing stable placement on printed circuit boards.
Yes, it has integral positive locking latches to secure the mated connectors under vibration and shock.
The contacts are arranged in a straight orientation.
It is suitable for industrial, laboratory, electronic manufacturing, and HVAC applications.
This model is designed to meet MIL-STD 202 method 208 for solderability.
