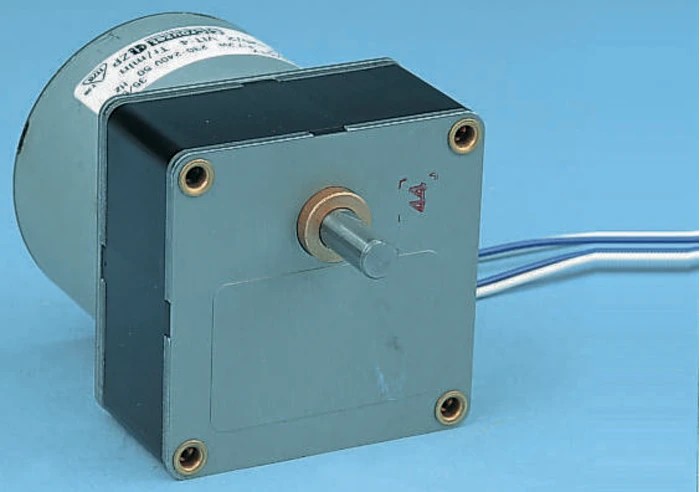

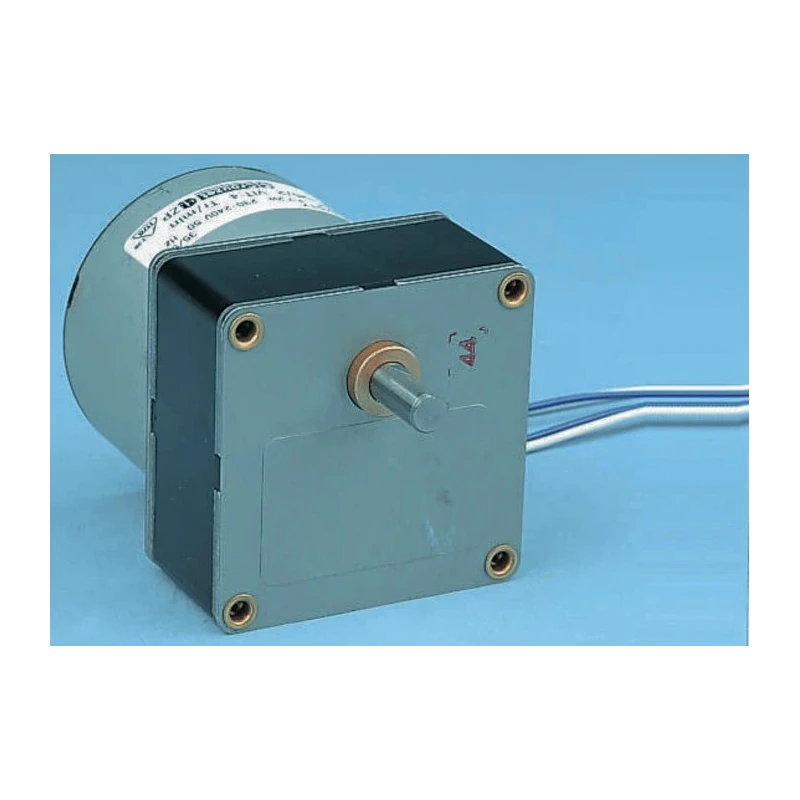

Crouzet Reversible Spur AC Geared Motor 7.2W 2 Phase 230V Panel Mounting 80547016

Free Delivery in India | Lowest Global Shipping Charges

Crouzet Reversible Spur AC Geared Motor 7.2W 2 Phase 230V Panel Mounting 80547016

Name: Crouzet Reversible Spur AC Geared Motor 7.2W 2 Phase 230V Panel Mounting 80547016
Brand: CROUZET
SKU: 165072
Price: 441.25 USD
Availability: InStock



Category Gear Motors Brand CROUZET Condition New

Specifications

Country of Origin	France
Brand	Crouzet
Material	Steel
Length	76.6mm
Model	80547016
Depth	65mm
Width	65mm
Mount Type	Panel
Rotation	Reversible
Power Rating	7.2W
Sub Type	Synchronous Geared
Output Speed	6rpm
Shaft Diameter	8mm
Shaft Length	16.7mm
Number of Phases	2
Supply Voltage	230V
Standards/Approvals	IEC, CSA, UL
Maximum Output Torque	5Nm
Gearhead Type	Spur

Key Features

This geared motor features a durable steel construction suitable for panel mounting.
It operates at a constant rotation speed of 6 rpm with reversible rotation for bidirectional applications.
The motor includes a spur gearhead and an 8mm diameter shaft of 16.7mm length.
It delivers a maximum output torque of 5 Nm, making it suitable for precise industrial control.
Approved by IEC, UL, and CSA standards, ensuring reliability and safety compliance.

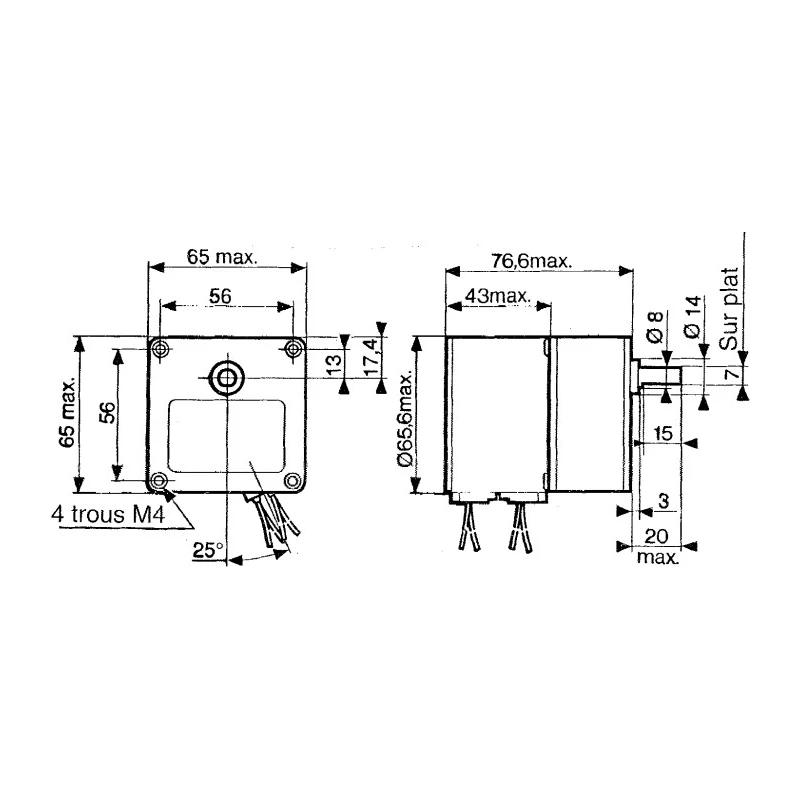

The compact dimensions (76.6mm length, 65mm width and depth) enable integration into constrained spaces.
Equipped with a permanent magnet rotor and phase shifting capacitor for rotation direction control.
Originating from France, this product meets international quality standards.

Product Description

Crouzet 80547016 reversible spur AC geared motor is a high-quality synchronous geared motor operating at 7.2W power with a 2-phase 230V supply. Specifically designed for panel mounting applications, it provides a constant rotational speed of 6 rpm suitable for industrial automation and control gear uses.

Constructed with a robust steel material, the motor incorporates a spur gearhead and a shaft with 8mm diameter and 16.7mm length, delivering reliable mechanical strength for various industrial machinery. The compact dimensions of 76.6mm length, with 65mm width and depth, facilitate easy installation into panel setups or confined environments.

This geared motor supports reversible rotation controlled by a phase shifting capacitor rated at 0.22 μF/630 V, enabling bidirectional motor control. Its permanent magnet rotor enhances efficiency and durability for continuous operation. With a maximum output torque of 5Nm, it ensures effective power transmission for precise motion control.

Designed in compliance with IEC standards and approved by UL, CSA, and VDE, this Crouzet motor conforms to international safety and performance criteria, making it suitable for demanding electrical and automation applications in industrial, manufacturing, and HVAC sectors.

The product's country of origin is France, reflecting premium European engineering standards. This geared motor features a durable steel construction suitable for panel mounting. It operates at a constant rotation speed of 6 rpm with reversible rotation for bidirectional applications.

The motor includes a spur gearhead and an 8mm diameter shaft of 16.7mm length. It delivers a maximum output torque of 5 Nm, making it suitable for precise industrial control. Approved by IEC, UL, and CSA standards, ensuring reliability and safety compliance.

The compact dimensions enable integration into constrained spaces. Equipped with a permanent magnet rotor and phase shifting capacitor for rotation direction control. Originating from France, this product meets international quality standards.
