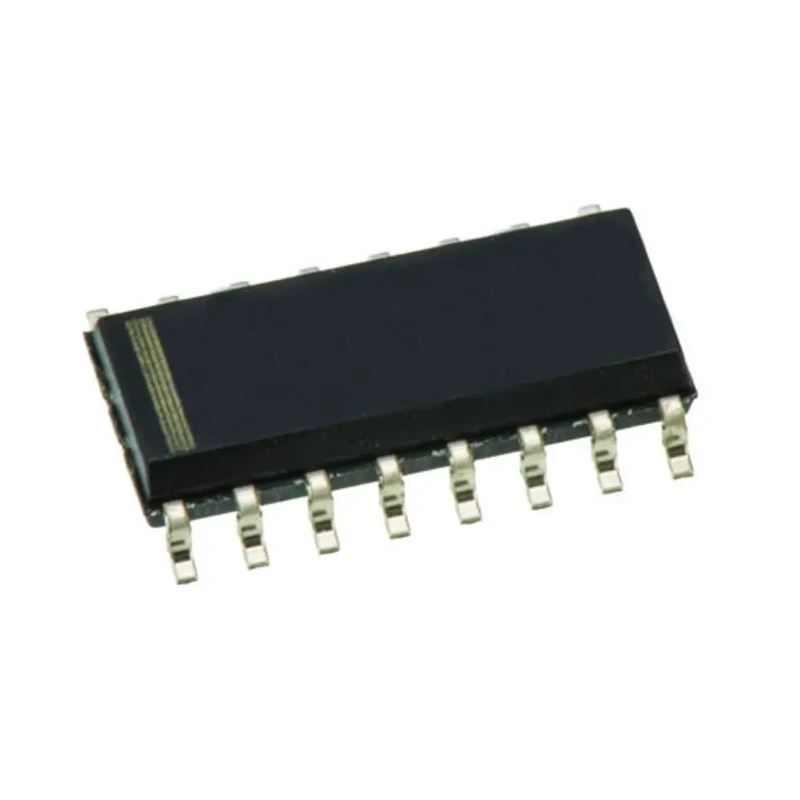

Texas Instruments Multiplexer/Demultiplexer CMOS Single 8:1 16-Pin SOIC CD74HCT4051M96

Texas Instruments CD74HCT4051M96 is a CMOS multiplexer/demultiplexer featuring a single 8:1 configuration designed for effective signal selection and routing in electronic circuit designs. This device operates under a voltage range of 2V to 6V, making it versatile for standard low-voltage applications.

Manufactured using high-speed CMOS logic technology, it delivers performance compatible with TTL input levels and CMOS output requirements. The device ensures low power consumption while maintaining reliable switching characteristics. Its maximum on-state resistance is 240 ohms, helping maintain signal quality and minimizing losses.

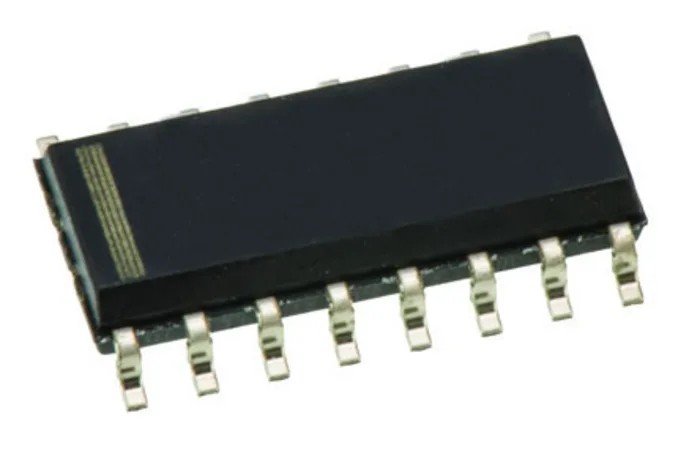

This integrated circuit is housed in a 16-pin SOIC surface-mount package, facilitating compact assembly and efficient PCB layout. The device dimensions are 9.9mm in length, 3.91mm in width, and 1.58mm in height, making it suitable for space-constrained applications.

The CD74HCT4051M96 can reliably operate in a wide temperature range from -55°C up to 125°C, supporting industrial and commercial environments. It is RoHS compliant, ensuring it meets modern environmental regulations.

Common applications include use in electronics manufacturing, semiconductors, signal routing, and embedded system designs requiring multiplexing or demultiplexing functions. This device is beneficial for design engineers requiring precise and reliable logic switching components.

Features CMOS logic technology suitable for high-speed applications. Supports single 8:1 multiplexing/demultiplexing configuration. Operates within 2V to 6V supply voltage range. Low maximum on-state resistance of 240 ohms for signal integrity.

Wide temperature operation from -55°C to 125°C ensures reliability in various environments. Surface mount package type SOIC with a compact 16-pin layout. Compatible with TTL input and CMOS output standards. Compliant with RoHS standards for environmental safety.

Compact dimensions: 9.9mm length, 3.91mm width, and 1.58mm height. Ideal for use in electronic component, semiconductor, and logic IC applications. Explore more semiconductor and multiplexer products in the Electronics & Electricals category at EnvMart to support advanced electronic system designs.
