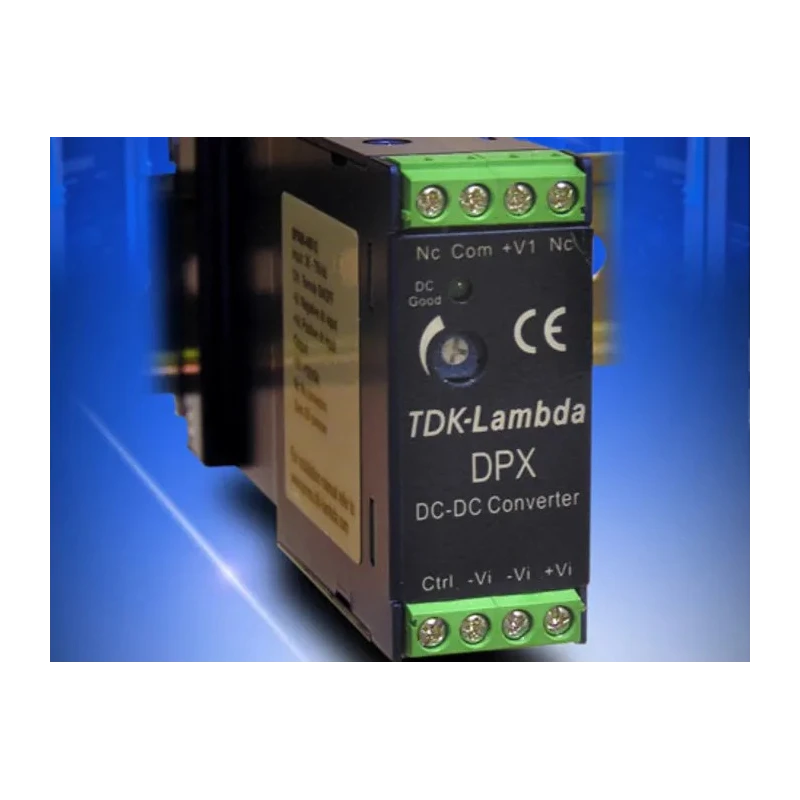

TDK-Lambda DC/DC Converter Dual Output 15 V dc / -15 V dc, 1.3 A, 48V dc Input, 40W, DIN Rail Mount DPX40-48WD15
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TDK-Lambda DPX DC/DC Converter, 15V dc, -15 V dc/ |
| Brand | TDK-Lambda |
| Efficiency | 0.85% |
| Length | 125mm |
| Model | DPX40-48WD15 |
| Depth | 125mm |
| Gross Weight | 182g |
| Width | 25.4mm |
| Mount Type | DIN Rail |
| Series | DPX |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 50mV |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 48V dc |
| Standards/Approvals | CE |
| Output Voltage 1 | 15, -15V dc |
| Output Current 1 | 1.3A |
| Isolation Voltage | 1.6kV |
Key Features
- This converter delivers 40 watts of power with high efficiency of 85%.
- Designed for reliable operation from -40°C to 85°C maximum temperature.
- Input range fixed at 48V dc to support common industrial buses.
- Robust isolation voltage of 1.6kV ensures safe operation in various environments.
- Includes ripple and noise level of 50mV to ensure clean output voltage.
- Features overload, short circuit, input reverse polarity, and over-voltage protections.
- CE certified and designed for DIN Rail TS-35/7.5 or TS-35/15 snap-on mounting.
- Compact dimensions of 125 mm length, 125 mm depth, and 25.4 mm width with light weight of 182 g.
Product Description
The TDK-Lambda DPX40-48WD15 DC/DC Converter is a dual output power supply module designed for industrial use to generate stable isolated output voltages of 15 V dc and -15 V dc from a nominal 48V dc input.
With a maximum output power of 40 watts and output current of 1.3 A, this converter offers efficient and reliable power conversion with typical efficiency of 85%. It features input fuse protection, input reverse polarity protection, input inrush current protection, overload and short circuit protection, and over voltage protection to ensure operational safety and longevity.
This DIN Rail mountable converter is suitable for installation on TS-35/7.5 or TS-35/15 rails, enabling easy integration into existing electrical assemblies and control panels. Its isolation voltage of 1.6 kV and ripple and noise of only 50 mV make it ideal for sensitive industrial electronics requiring clean, regulated DC power.
The device meets EN55022 Class B EMC standards and is CE certified, supporting industrial and commercial applications such as automation, instrumentation, control systems, and power distribution. Operating temperature ranges from -40°C to 85°C, making it suitable for demanding environments.
Physical dimensions of 125 mm length, 125 mm depth, and 25.4 mm width combined with a lightweight design of 182 grams allow space-efficient deployment without sacrificing performance. The DPX series offers various power ratings and output voltage configurations, and the DPX40-48WD15 model is optimized for 48V dc input systems.
This DC/DC Converter provides dual outputs of 15 V / -15 V DC at 1.3A. High reliability is ensured with multiple built-in protections and robust isolation. Compact DIN Rail mount design facilitates easy electrical panel integration.
Meets international CE and EMC Class B standards for safe industrial use. Operating temperature range from -40°C up to 85°C supports harsh conditions. High efficiency minimizes energy loss and heat generation during operation.
Designed and manufactured in Taiwan, Province Of China, the DPX40-48WD15 is part of the trusted TDK-Lambda DPX series, offering versatile power solutions for industrial electronics. Explore the full range of converters available at EnvMart for your power conversion needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 40 watts.
It provides dual output voltages of 15 V dc and -15 V dc.
The input voltage is fixed at 48 V dc.
The efficiency of the converter is 85%.
The isolation voltage is 1.6 kV, ensuring safe operation in various environments.
The dimensions are 125 mm in length, 125 mm in depth, and 25.4 mm in width.
This model weighs 182 grams.
It includes overload, short circuit, input reverse polarity, and over-voltage protections.
The operating temperature range is from -40°C to 85°C.
It is designed for DIN Rail mounting, specifically for TS-35/7.5 or TS-35/15 rails.
The ripple and noise level is 50 mV, ensuring clean output voltage.
Yes, it is CE certified, meeting international safety standards.
