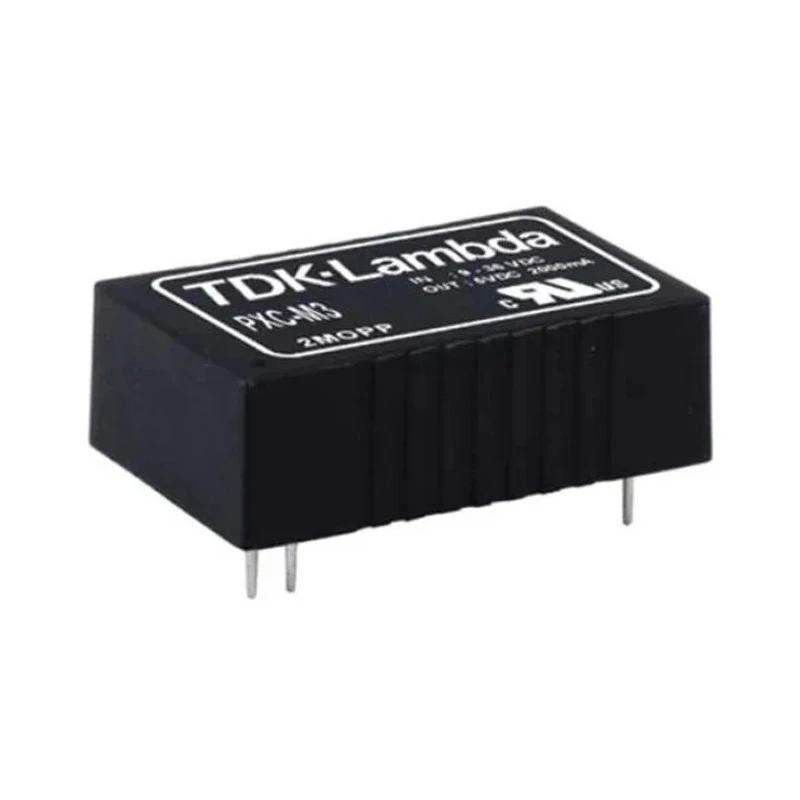

TDK-Lambda DC/DC Converter , 15V DC Output, 670mA Current, 75V DC Max Input, 18V DC Min Input, 10.1W Power PXC-M10-48WS15

Free Delivery in India | Lowest Global Shipping Charges

TDK-Lambda DC/DC Converter , 15V DC Output, 670mA Current, 75V DC Max Input, 18V DC Min Input, 10.1W Power PXC-M10-48WS15

Name: TDK-Lambda DC/DC Converter , 15V DC Output, 670mA Current, 75V DC Max Input, 18V DC Min Input, 10.1W Power PXC-M10-48WS15
Brand: TDK-Lambda
SKU: 164934
Price: 1208.72 USD
Availability: InStock



Category DC/DC Converter Brand TDK-Lambda Condition New

Specifications

Country of Origin	Taiwan
Voltage	Converters / DC-DC Converters TDK-Lambda PXC-M10 DC/DC Converter, 15V dc/ 670 mA
Brand	TDK-Lambda
Efficiency	0.89%
Length	31.8mm
Model	PXC-M10-48WS15
Depth	10.2mm
Gross Weight	14g
Width	20.3mm
Mount Type	PCB
Series	PXC-M10
Maximum Operating Temperature	105°C
Package Type	DIP
Minimum Operating Temperature	-40°C
MTBF	3849000h
Number of outputs	1
Ripple and Noise	40mV
Maximum Output Power	10.1W
Maximum Input Voltage	75V dc
Minimum Input Voltage	18V dc
Number of Pins	7
Output Voltage 1	15V dc
Output Current 1	670mA
Isolation Voltage	5kV
Input Ratio	4:1
Input Ratio4	1

Key Features

This converter supports an input voltage range from 18V DC to 75V DC for versatile operation.
It features a PCB mount design with a DIP-7 package for easy integration into electronic assemblies.
The device offers an isolation voltage of 5kV and a ripple and noise of 40mV ensuring signal integrity.
Operating temperature ranges from -40°C to 105°C, suitable for harsh industrial environments.
The unit achieves an efficiency of approximately 89%, optimizing power usage and thermal performance.
Its MTBF (Mean Time Between Failures) of 3,849,000 hours assures long-term reliability.
Compact dimensions of 31.8mm length, 20.3mm width, and 10.2mm depth support space-saving design.

Product Description

TDK-Lambda PXC-M10-48WS15 is a high-performance DC/DC converter designed for precision electronic applications requiring stable 15V output at 670mA current, delivering a power output of 10.1W. It accepts a wide input voltage range from 18V to 75V DC, making it suitable for various power supply conditions.

This converter is designed for PCB mounting with a DIP-7 package type, providing robust physical integration suitable for industrial and communications equipment. The unit supports a 4:1 input voltage ratio and offers 5kV isolation voltage, enhancing safety and noise immunity in sensitive circuits.

Operating reliably between -40°C and 105°C, the converter is built to endure demanding environmental conditions. It maintains low ripple and noise of 40mV, ensuring output signal fidelity for critical electronic systems.

The PXC-M10 series is known for its high MTBF of nearly 3.85 million hours, underscoring its durability and suitability in mission-critical medical and communications applications. Efficiency stands at 89%, contributing to energy savings and minimized heat generation.

With compact dimensions (31.8mm x 20.3mm x 10.2mm) and lightweight design (14g), this converter is optimal for space-constrained installations. This DC/DC Converter supports medical and communication industries with a reliable low-power solution.

It is supplied in an industry-standard DIP-24 PCB footprint, offering easy replacement and design flexibility. Suitable for applications requiring strict isolation and wide voltage tolerance. Offers excellent durability with a long operational lifespan and high reliability under temperature extremes.

Compact size conserves PCB space and facilitates integration into complex systems. Explore a wide range of DC-DC Converters and power supply solutions at EnvMart for your industrial and electronic component needs.
