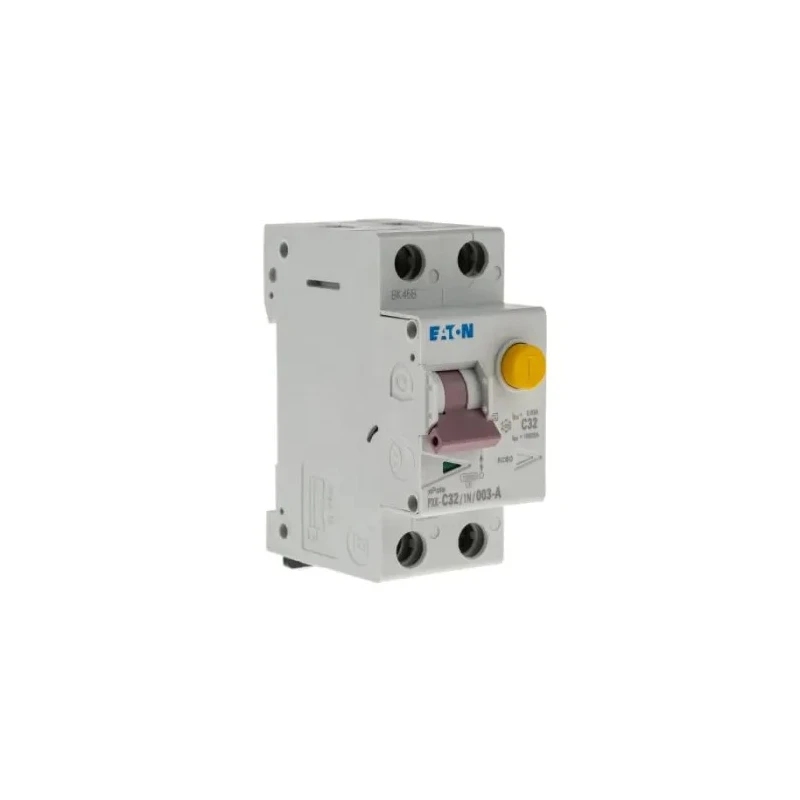

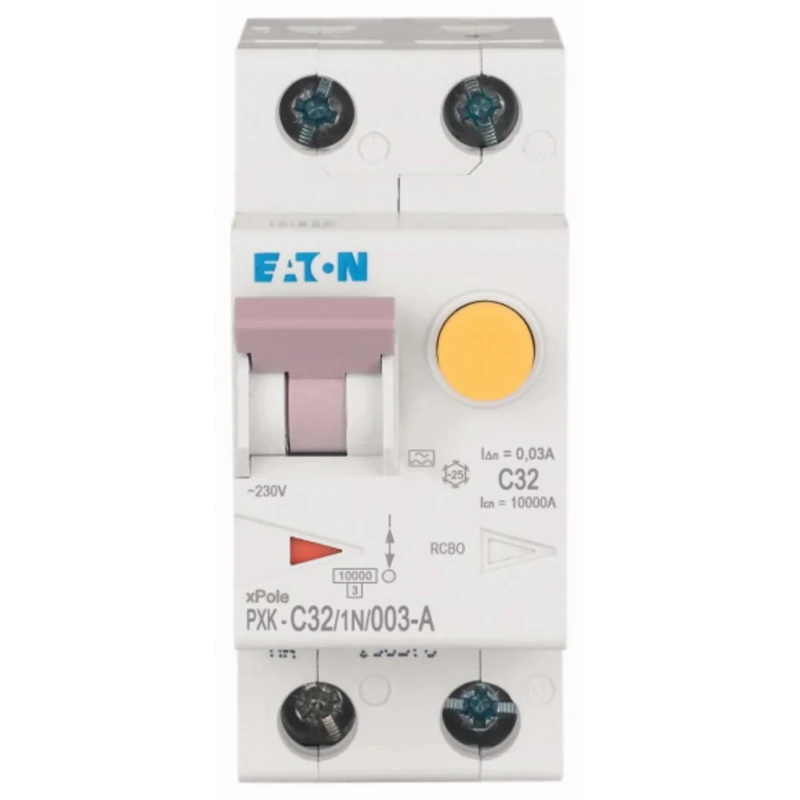

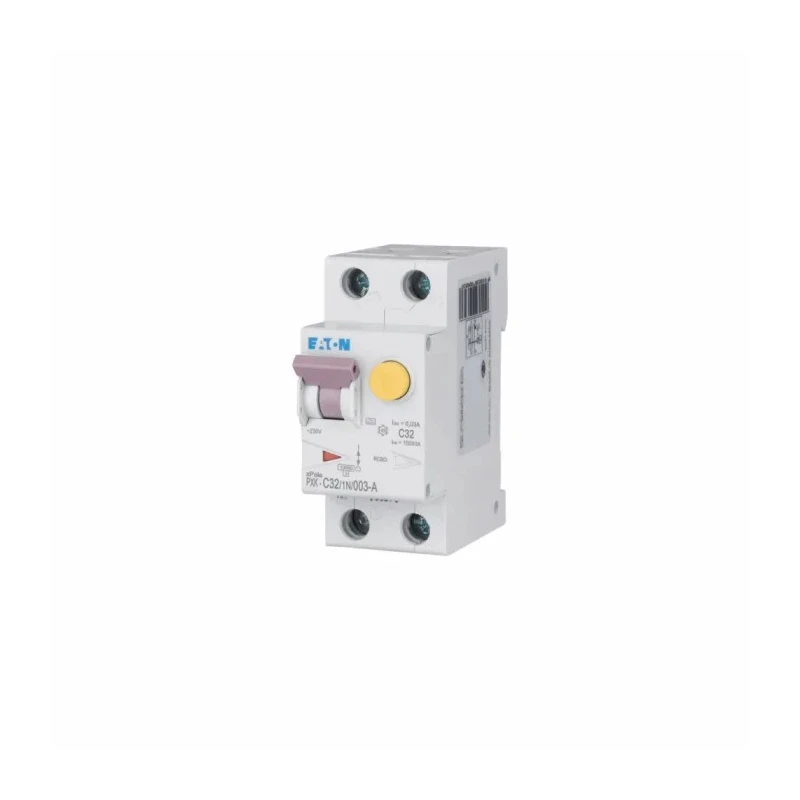

Eaton Residual Current Circuit Breaker with Overload Protection, 32A Current Rating, 1-Pole, 30 mA 236967 PXK-C32/1N/003-A

The Eaton 236967 PXK-C32/1N/003-A Residual Current Circuit Breaker with Overload Protection is a high-quality electrical safety device designed to protect circuits from earth leakage faults and overcurrent conditions. With a rated current of 32A and a trip sensitivity of 30 mA, this device is suitable for both residential and commercial electrical installations.

Combining the functionality of a residual current device (RCD) and a miniature circuit breaker (MCB), it provides dual protection against electric shock and electrical overloads or short circuits. The device’s Type A and Type C tripping characteristics ensure reliable disconnection when currents exceed two to three times the rated current or five to ten times the rated current respectively, helping to prevent nuisance trips and enhance safety.

Mounting on a standard DIN rail allows for space-efficient integration into consumer units. The breaker uses a thermal magnetic tripping mechanism and offers a breaking capacity of 10 kA, ensuring effective interruption under fault conditions. Screw terminals provide secure and reliable electrical connections.

IEC/EN 61009 and IEC/EN 61439 certifications guarantee compliance with international safety standards. The unit operates reliably within a temperature range of -25 °C to +40 °C, making it well-suited for various environments. Its compact form factor, with a height of 75 mm and depth of 69.5 mm, makes it adaptable to standard electrical panels.

RCD and MCB combination for dual fault protection. Type A and Type C tripping characteristics enhance circuit safety. Screw terminal type for reliable installation. Thermal magnetic tripping mechanism with a 10 kA breaking capacity.

DIN rail mounting for easy installation. Temperature operating range from -25 °C to +40 °C. Compact dimensions: 75 mm height, 69.5 mm depth. IEC/EN 61009 and IEC/EN 61439 standard compliant. Single pole design ideal for residential and commercial use.

Manufactured in Austria ensuring high manufacturing standards.

This Eaton Residual Current Circuit Breaker is ideal for ensuring safer electrical systems in homes, commercial buildings, and mission-critical electrical circuits. Its robust design and certified quality make it a dependable choice for electrical fault protection.
