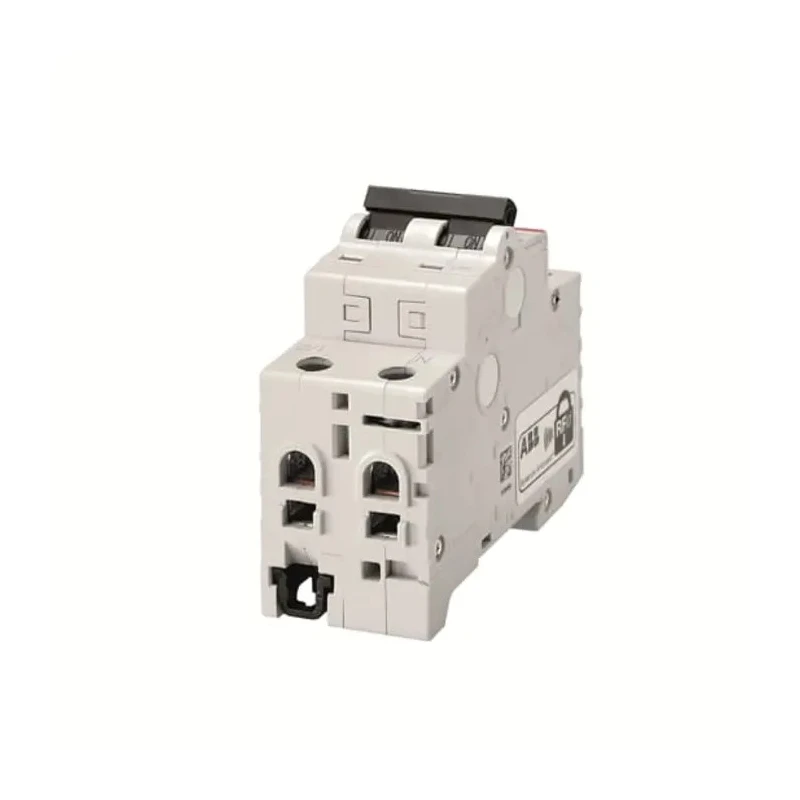

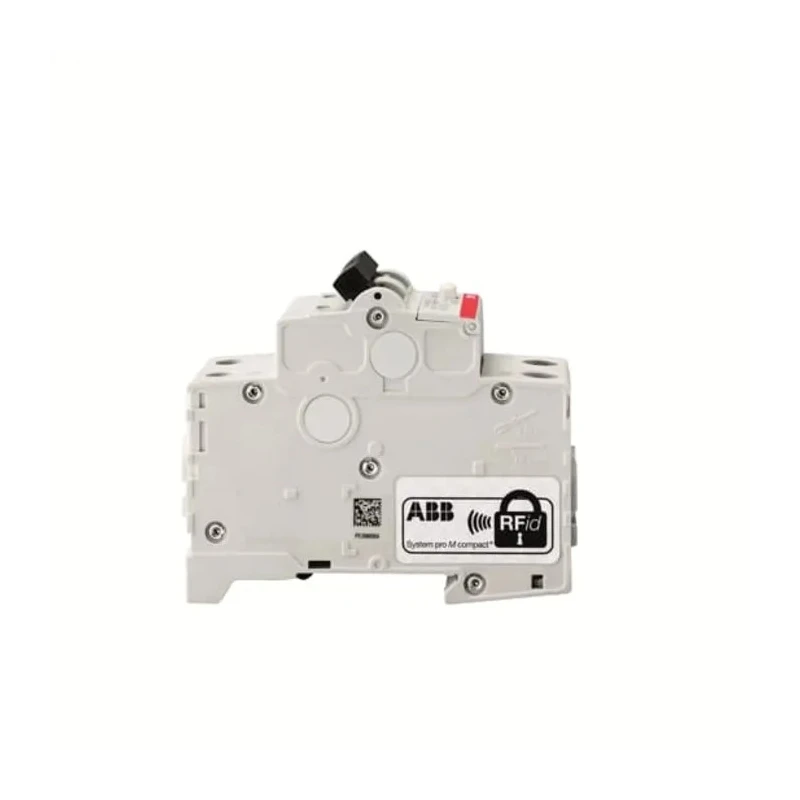

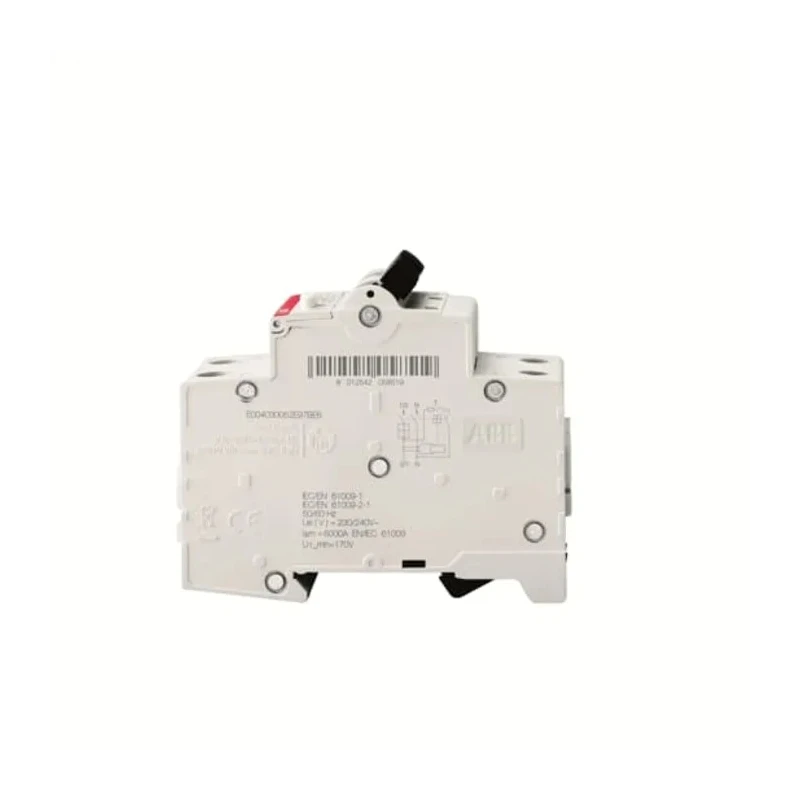

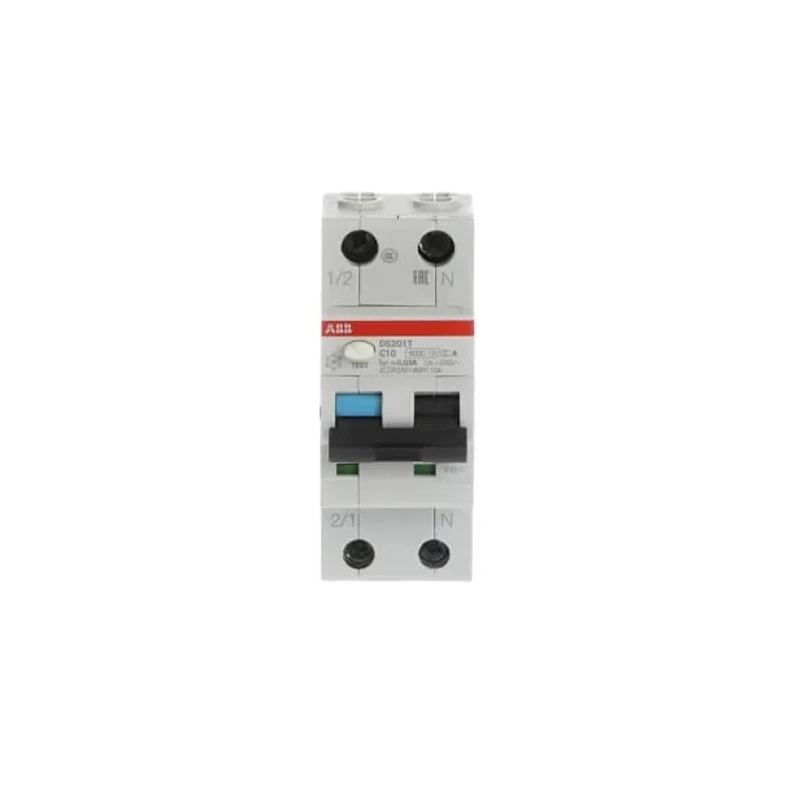

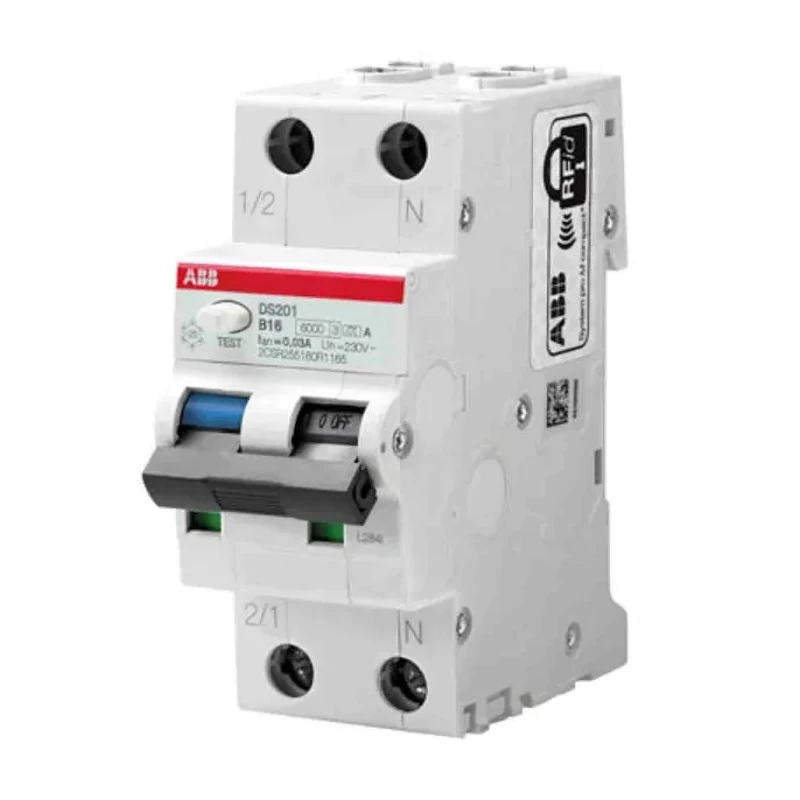

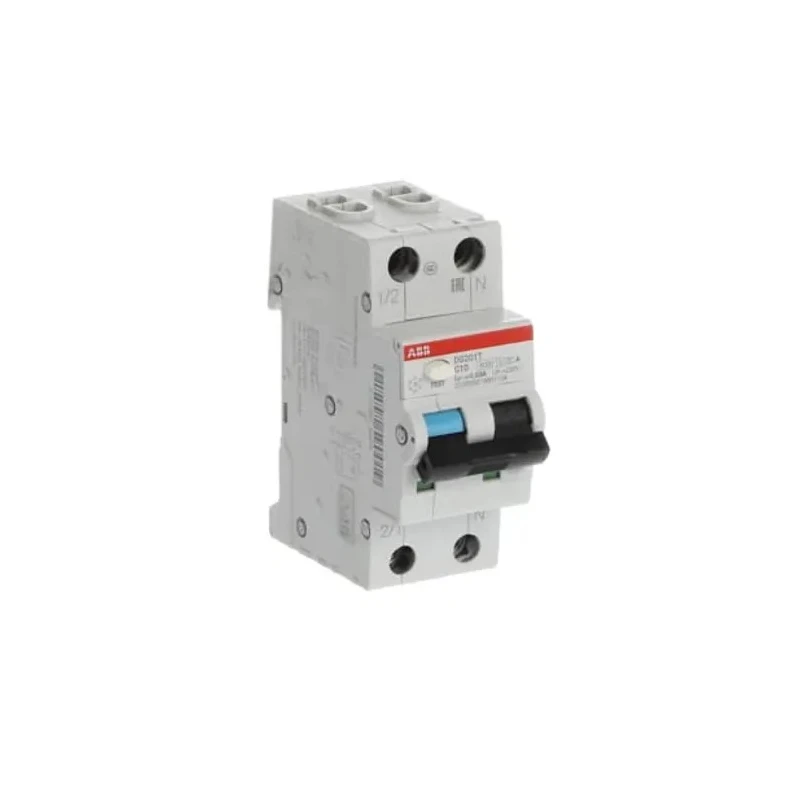

ABB Residual Current Circuit Breaker with Overload Protection 16A 2-Pole 100 mA Trip 2CSR255080R2165 DS201 B16 AC100
Specifications
| Country of Origin | India |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 85mm |
| Model | 2CSR255080R2165 DS201 B16 AC100 |
| Depth | 69mm |
| Width | 85mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | DS201 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 2 |
| Standards/Approvals | IEC/EN 61009, IEC/EN 62606 |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 100mA |
| Earth Leakage Protection Type | AC |
Key Features
- Offers reliable protection against overloads and earth leakage faults.
- Dual-module design suitable for single-phase circuits.
- Equipped with a toggle switch actuator for easy operation.
- Has a breaking capacity of 6 kA and complies with IEC/EN 61009 and IEC/EN 62606 standards.
- Mounts conveniently on DIN rails for quick installation.
- Features IP40 rated housing and IP20 rated touch-proof terminals for safety.
- Operates safely within a wide temperature range of -25°C to +55°C.
- Suitable for industrial automation, medical facilities, R&D labs, and construction applications.
Product Description
ABB 2CSR255080R2165 DS201 B16 AC100 residual current circuit breaker provides advanced overload protection with a rated current of 16A and a 2-pole configuration. It features a sensitive trip of 100 mA to rapidly disconnect power in case of earth leakage, enhancing safety by preventing electric shocks and damage to connected equipment.
This RCBO is part of the DS201 Series within the System Pro M Compact range, designed for robustness and ease of installation via DIN rail mounting. The breaker has a thermal magnetic tripping mechanism and is equipped with a screw terminal type and a toggle switch reset actuator for user convenience.
With a breaking capacity of 6kA, this device ensures reliable interruption of short circuits and overload currents. Its IP40 housing and IP20 touch-proof terminals offer enhanced protection against accidental contact and mechanical damage, complying with IEC/EN 61009 and IEC/EN 62606 standards. The unit operates efficiently in harsh environments, supported by a temperature range from -25°C to +55°C and offers a long electrical endurance with 10,000 operation cycles.
Reliable overload and earth leakage protection with 16A current rating. Dual-modular width perfect for single-phase circuit protection. Thermal magnetic tripping mechanism reduces nuisance tripping. IP40 housing and IP20 terminals ensure safe handling.
Quick DIN rail installation suitable for industrial and commercial use. Compliant with international safety standards IEC/EN 61009 and IEC/EN 62606. Wide operating temperature supports diverse industrial applications. Long electrical endurance ensures consistent protection performance.
This Residual Current Circuit Breaker is ideal for use in industrial automation systems, medical facilities requiring safety compliance, research and development laboratories, and construction industry environments where reliable electrical protection is critical.
Explore the comprehensive range of circuit protection devices from ABB on EnvMart for high-quality electrical safety solutions tailored to meet demanding industrial standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 16A, providing reliable overload and earth leakage protection.
It has a breaking capacity of 6 kA, ensuring reliable interruption of short circuits and overload currents.
The dimensions of this unit are 85mm in height, 85mm in width, and 69mm in depth.
It is designed for DIN rail mounting, allowing for quick and convenient installation.
The trip sensitivity is 100 mA, which allows for rapid disconnection in case of earth leakage.
It complies with IEC/EN 61009 and IEC/EN 62606 standards, ensuring safety and reliability.
It features a thermal magnetic tripping mechanism, which helps reduce nuisance tripping.
It operates safely within a temperature range of -25°C to +55°C, making it suitable for various environments.
This model uses screw terminals, providing a secure connection for electrical wiring.
It is suitable for industrial automation, medical facilities, R&D labs, and construction applications where reliable electrical protection is critical.
This unit has a 2-pole configuration, making it suitable for single-phase circuits.
It is equipped with a toggle switch reset actuator for user convenience during operation.
