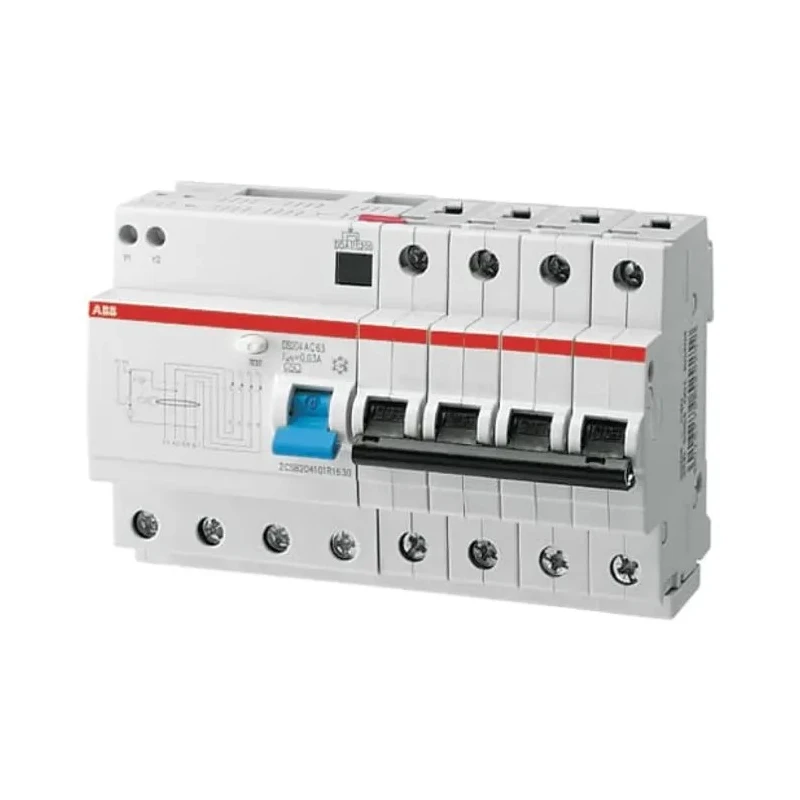

ABB Residual Current Circuit Breaker with Overload Protection 13A Current Rating 4-Pole 30 mA Trip 2CSR254101R1137



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	DS200
Brand	ABB
Height	93mm
Model	2CSR254101R1137
Depth	69mm
Width	105mm
Standards	IEC/EN 60947-2
Current Rating	13A
Series	DS200
Terminal type	Busbar
Breaking Capacity	10kA
Number of Poles	4
Standards/Approvals	UL/CSA, IEC/EN 61009-1, IEC/EN 60947-2
Rated AC Voltage	400V ac
Tripping Characteristics	Type K
Reset Actuator Type	Lever
Trip Sensitivity	30mA
Earth Leakage Protection Type	Type A
Operating Characteristic	Instantaneous

Key Features

Provides protection against overload and short-circuit currents.
Equipped with type A earth leakage protection for sinusoidal alternating earth fault currents.
Features an instantaneous tripping characteristic (Type K).
Supports a rated AC voltage of 400 V and breaking capacity of 10 kA.
Includes a lever reset actuator for easy manual operation.
Designed for residential and short circuit protection applications.
Compact dimensions with 93 mm height, 69 mm depth, and 105 mm width.
Terminal type is busbar ensuring secure connections.

Product Description

ABB 2CSR254101R1137 Residual Current Circuit Breaker with Overload Protection is engineered for industrial and residential electrical protection applications. It combines overload protection and earth leakage detection to safeguard circuits from short circuits, overloads, and faults caused by sinusoidal alternating earth currents.

This 4-pole breaker with a rated current of 13A and 30 mA trip sensitivity ensures reliable disconnection under fault conditions, enhancing electrical safety. The instantaneous tripping characteristics (Type K) provide fast response to faults, minimizing risks of damage.

Operating at a rated AC voltage of 400V and featuring a strong breaking capacity of 10 kA, it can handle high fault currents safely. The lever-type reset actuator allows for straightforward manual resetting after interruption.

The breaker dimensions are compact (93 mm height, 69 mm depth, 105 mm width) making installation in residential or industrial panels easy. It uses busbar connectors facilitating solid and secure electrical connections.

Compliance with international standards UL/CSA, IEC/EN 61009-1, and IEC/EN 60947-2 underlines its quality and reliability. The device is suitable for residential, industrial, and short circuit protection use cases requiring precise earth leakage and overload safeguarding.

Provides overload and short-circuit current protection. Type A earth leakage protection against sinusoidal alternating earth faults. Instantaneous Type K tripping characteristic for fast fault response. Rated 13A current with 4-pole configuration.

Busbar terminal type for robust electrical connection. Manual reset lever actuator for ease of use. Compact size suited for electrical panels. Conforms to UL/CSA and IEC/EN electrical safety standards. Explore the wide range of high-quality circuit breakers available on EnvMart for reliable electrical safety solutions.
