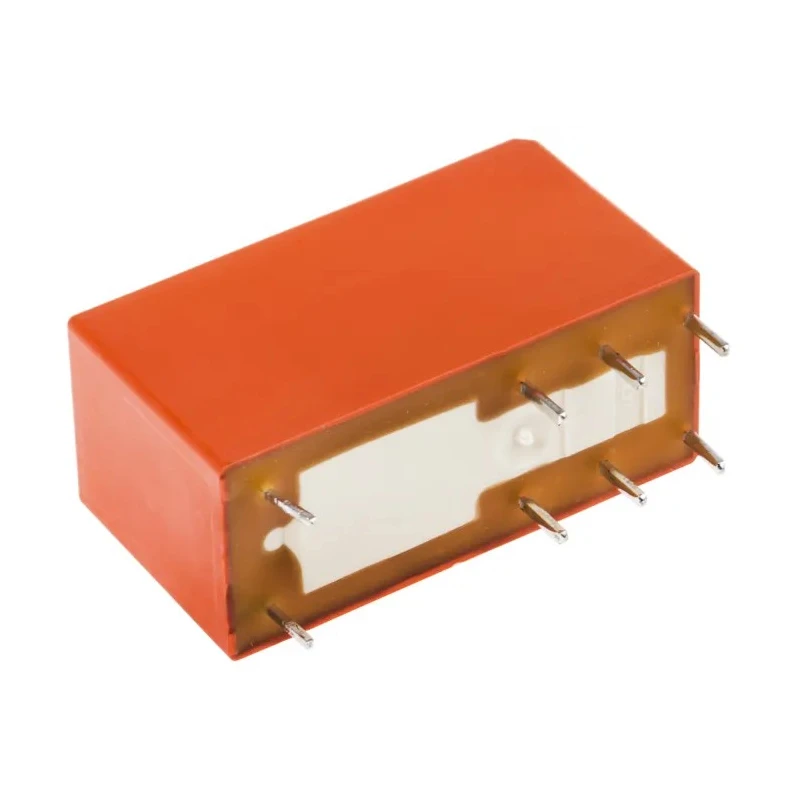

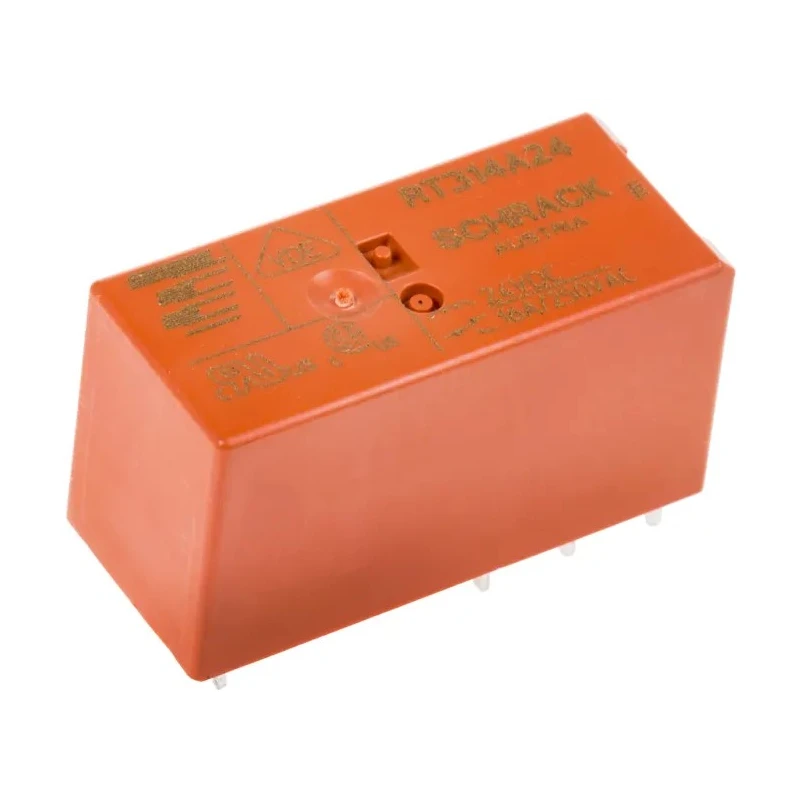

TE Connectivity Power Relay PCB Mount SPDT 24V DC Coil 16A Switching Current RT314A24
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314A24 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -10°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, UL, VDE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
Key Features
- Single Pole Double Throw (SPDT) contact configuration offers versatile switching capability.
- Coil voltage rating of 24V DC suitable for various electronic control circuits.
- Switching current capacity of 16 amperes ensures suitability for moderate power loads.
- Robust silver alloy contact material enhances conductivity and durability.
- Operating temperature range from -10°C up to 85°C for wide environmental tolerance.
- Mount type is PCB with solder terminal connections ensuring secure electrical interface.
- Coil resistance is 1.4 kΩ, optimizing coil power consumption.
- Certified to meet RoHS, UL, and VDE safety and quality standards.
Product Description
TE Connectivity RT314A24 is a high-performance power relay designed for PCB mounting in electrical and electronic applications. It features a Single Pole Double Throw (SPDT) contact configuration, enabling flexible switching functions in control circuits.
Equipped with a 24V DC coil, this relay operates efficiently with a coil resistance of 1.4 kΩ, ensuring low power consumption during activation. It supports a switching current up to 16 amperes and an AC voltage rating reaching 400V AC, suitable for moderate load switching tasks.
The relay is built with silver alloy contact material, providing excellent electrical conductivity and long service life. Its compact dimensions - 29 mm in length, 15.7 mm in height, and 12.7 mm in width - allow for easy integration on PCB layouts with limited space.
Designed for reliability, the RT314A24 operates within a temperature range of -10°C to 85°C and includes advanced features such as reinforced insulation and shock resistance capable of handling up to 100g destructive shock impact. This makes it an ideal choice for industrial, automation, and power control systems requiring bistable/latching relay memory functions and high switching performance.
The relay complies with RoHS, UL, and VDE standards, ensuring environmental safety and operational certification. Originating from Austria, the product assures premium manufacturing standards.
Single Pole Double Throw (SPDT) contact configuration for versatile switching. 24V DC coil voltage with 1.4kΩ coil resistance for efficient operation. 16A switching current supports moderate power loads up to 400V AC. Constructed with silver alloy contacts for reliability and conductivity.
Compact PCB mount design with solder terminals for secure connections. Wide operating temperature range (-10°C to 85°C) for diverse environments. Reinforced insulation and 100g shock resistance enhance durability. Meets RoHS, UL, and VDE safety and quality certifications.
Manufactured in Austria with high industrial standards.
This RT314A24 relay is suitable for applications in industrial automation, power control panels, HVAC systems, manufacturing equipment, and electronic control modules that require robust and reliable switching components.
Explore more Power Relays and electrical components on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a coil voltage rating of 24V DC, making it suitable for various electronic control circuits.
It supports a maximum switching current of 16 amperes, suitable for moderate power loads.
This model measures 29 mm in length, 15.7 mm in height, and 12.7 mm in width, allowing for easy integration into PCB layouts.
The coil resistance is 1.4 kΩ, which optimizes power consumption during activation.
It is designed for PCB mounting with solder terminal connections, ensuring a secure electrical interface.
The relay can switch AC voltages up to 400V AC, making it suitable for moderate load switching tasks.
The contacts are made of silver alloy, which enhances conductivity and reliability.
It is certified to meet RoHS, UL, and VDE safety and quality standards, ensuring compliance with environmental and operational regulations.
This relay is manufactured in Austria, adhering to high industrial standards.
It is suitable for applications in industrial automation, power control panels, HVAC systems, and electronic control modules that require reliable switching components.
