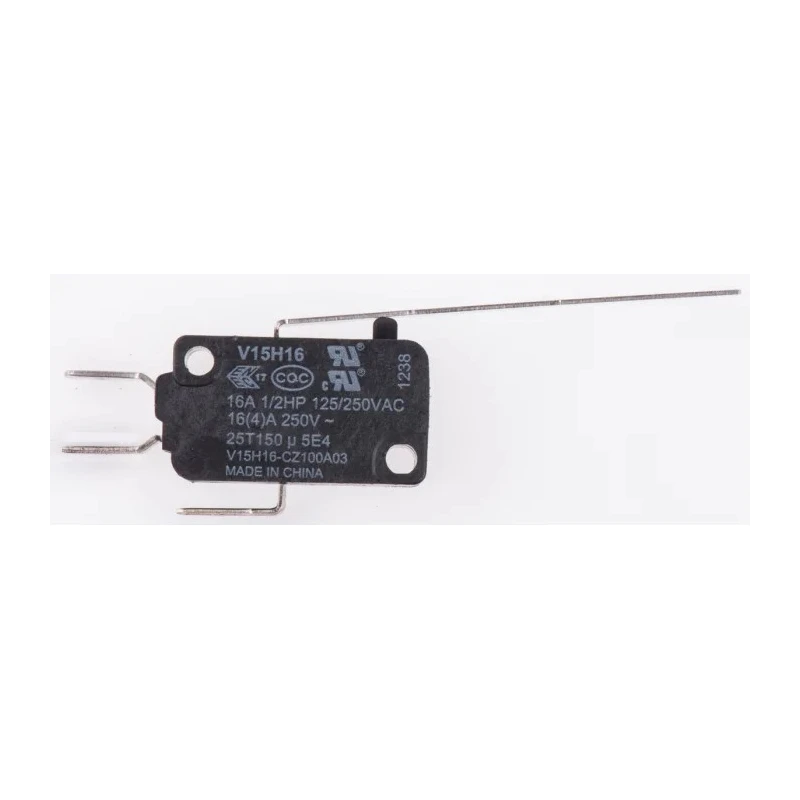

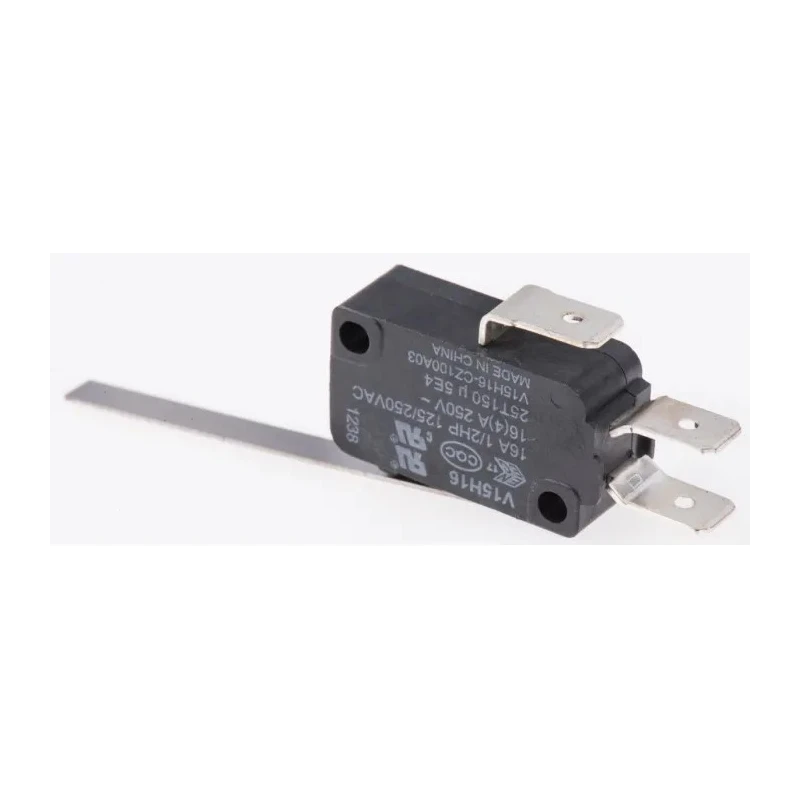

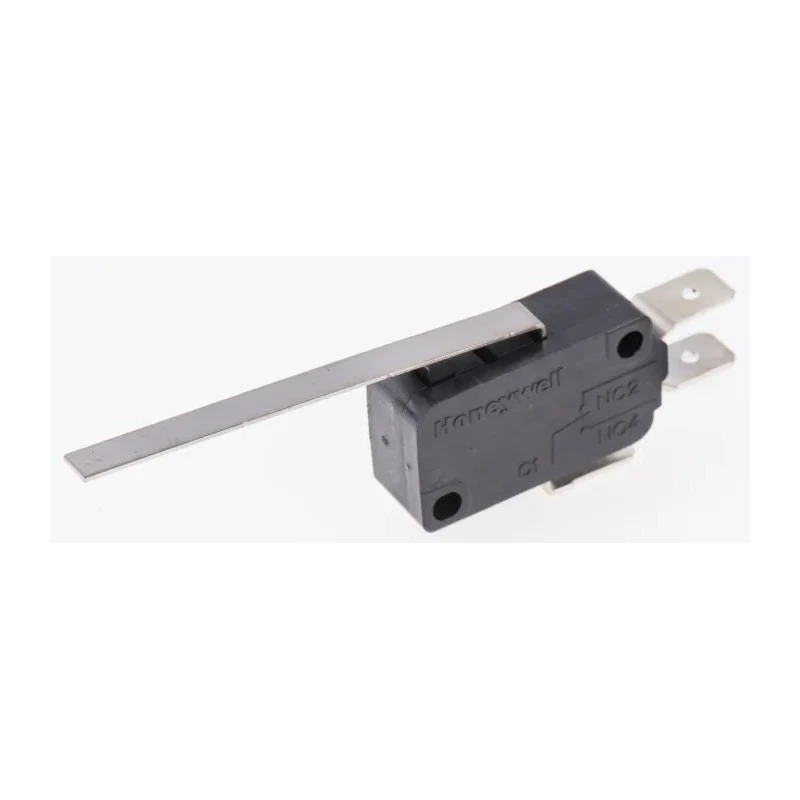

Honeywell Technologies Long Leaf Lever Micro Switch, Quick Connect Terminal, 16A, 250V AC, SPDT, IP67 V15H16-CZ100A03

Honeywell Technologies V15H16-CZ100A03 long leaf lever micro switch is a compact, sealed electromechanical device designed for precise control in industrial automation, electrical equipment, and process control applications. Rated for 16A switching current at 250V AC, this SPDT micro switch offers versatile circuit switching options under harsh environmental conditions.

The quick connect terminals simplify installation and maintenance while the IP67-rated housing ensures protection from dust and water, making this switch ideal for outdoor and industrial settings. It operates reliably across a wide temperature range from -25°C to 150°C, suitable for extreme environmental challenges.

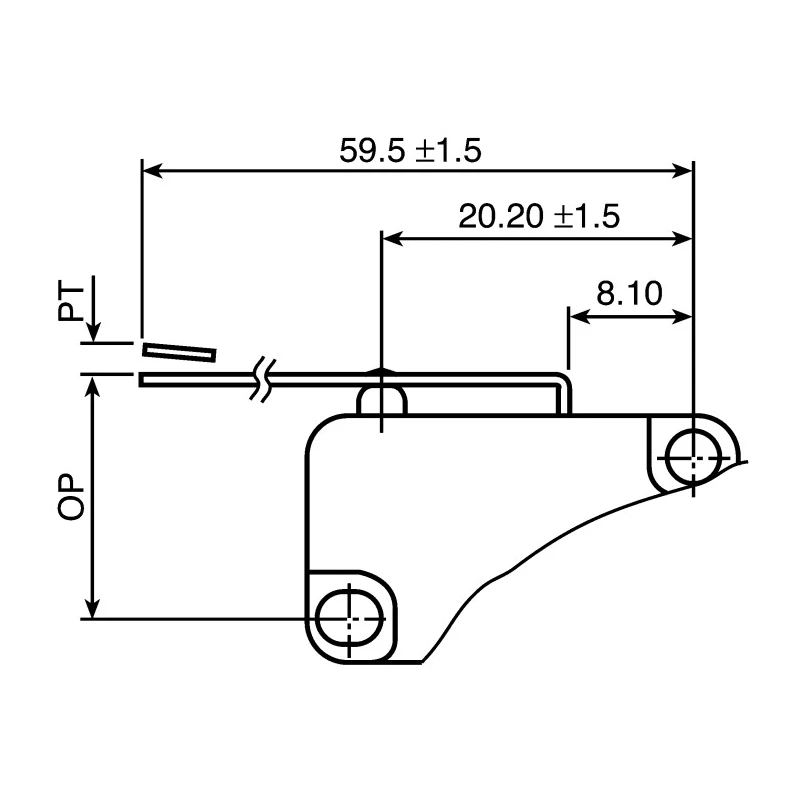

The switch actuator is a long leaf lever type offering accurate positioning with a pin plunger mechanism, delivering consistent and repeatable switching action. The durable plastic housing crafted from PBT thermoplastic polyester provides excellent resistance to chemical exposure and mechanical wear.

This micro switch boasts a mechanical life of 1,000,000 cycles, making it suited for high-frequency operations such as limit detection, motor starter control, safety interlocks, and automated machinery applications.

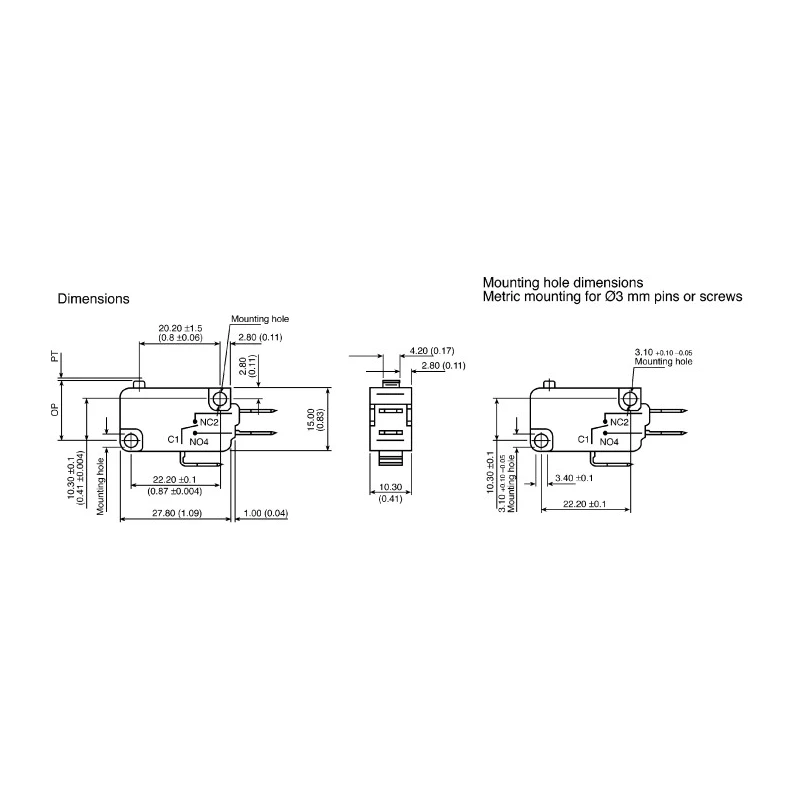

Safety and compliance are ensured with certifications meeting UL, ENEC, cUL, and CQC standards. Its compact dimensions (27.8mm length, 10.3mm width, 10.3mm depth) allow integration into tight assemblies where space is limited. The device is manufactured in China and belongs to the Honeywell V15 series of micro switches.

The switch features a single-pole double-throw (SPDT) contact configuration for versatile control. It supports high load applications with a 16A switching current at 250V AC. IP67 enclosure rating provides protection against dust and water ingress.

Robust PBT thermoplastic polyester housing ensures chemical and mechanical durability. Wide operating temperature range from -25°C to 150°C for harsh environments. Quick connect terminals enable easy installation and replacement without soldering.

Mechanical life rating of 1,000,000 cycles supports frequent switching requirements. Certified to international standards UL, ENEC, cUL, and CQC.

This micro switch is widely used in industrial automation, control panels, motor starters, safety interlocks, and process equipment exposed to adverse conditions. Explore more Honeywell Technologies Micro Switches in EnvMart’s Electronics & Electricals category for reliable industrial controls.
